Wire tracker good hand Rj11 Rj45 Multi-purpose ch-868 - Cable lan rj-11 rj-45 tester goodhand ch868

Detail Wire tracker good hand Rj11 Rj45 Multi-purpose ch-868 - Cable lan rj-11 rj-45 tester goodhand ch868

WIRE TRACKER NETWORKING adalah Sepasang Alat Pelacak Kabel dengan berbagai fungsi dan indikator yang kegunaan untuk melacak kabel Networking seperti LAN dan Telepon yang telah terpasang apakah berfungsi baik atau telah putus guna untuk perbaikan / penggantian.


Features :

Find wire on all types of connected operating ethernet switch / Router / PC terminal.
Rapidly find the target wire from among plenty of telephone wires
Rapidly find the target wire from among plenty of network wires,
It can take place of cable tester
Compare the volume of the tout sound and the brightness of the signalindicator.
Then you can find the targetwire which has the highestvolume and brightest indicator.


Function of Wire Tracker :

Trace telephone wire / LAN cable
Trace wire in electrical system:
Verify LAN cable condition;
Continuity test
Low Battery Indication:
Bright white LED flash light.
Cable Assignment Test: Open, short and cross of LAN Cable, 2-wire(RJ11) / 4-wire(RJ45) Telephone cable
Cable State Testing (2-wire):
a Line Dedetecting and anode, cathode determination
b Ringing signal detecting
c Open, short and cross testing


Specification:

Emitter
Working current : 10mA
connector : RJ11 + RJ45
Dimension : 126 x 47 x 33 mm

Receiver
Working current : 30mA
connector : RJ45
Dimension :175 x 43 x 23 mm

Signal transfer mode: Digital signal
Signal output level: 8Vp-p
Signal transfer distance: 3 Km
Power: 2 x DC 9V Battery

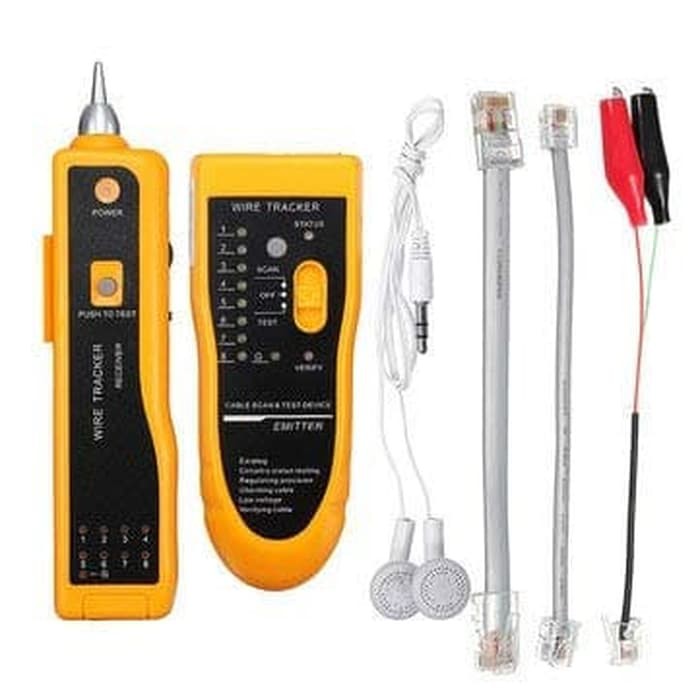

isi Paket :

1 x Emitter
1 x Receiver
1 x 9V battery 2 pcs
1 x Earphone
1 x RJ11 telephone cable
1 x RJ45 network cable
1 x Cable with crocodile clamp
1 x Instruction manual
1 x Black toolkit Bag

Gambar produk
