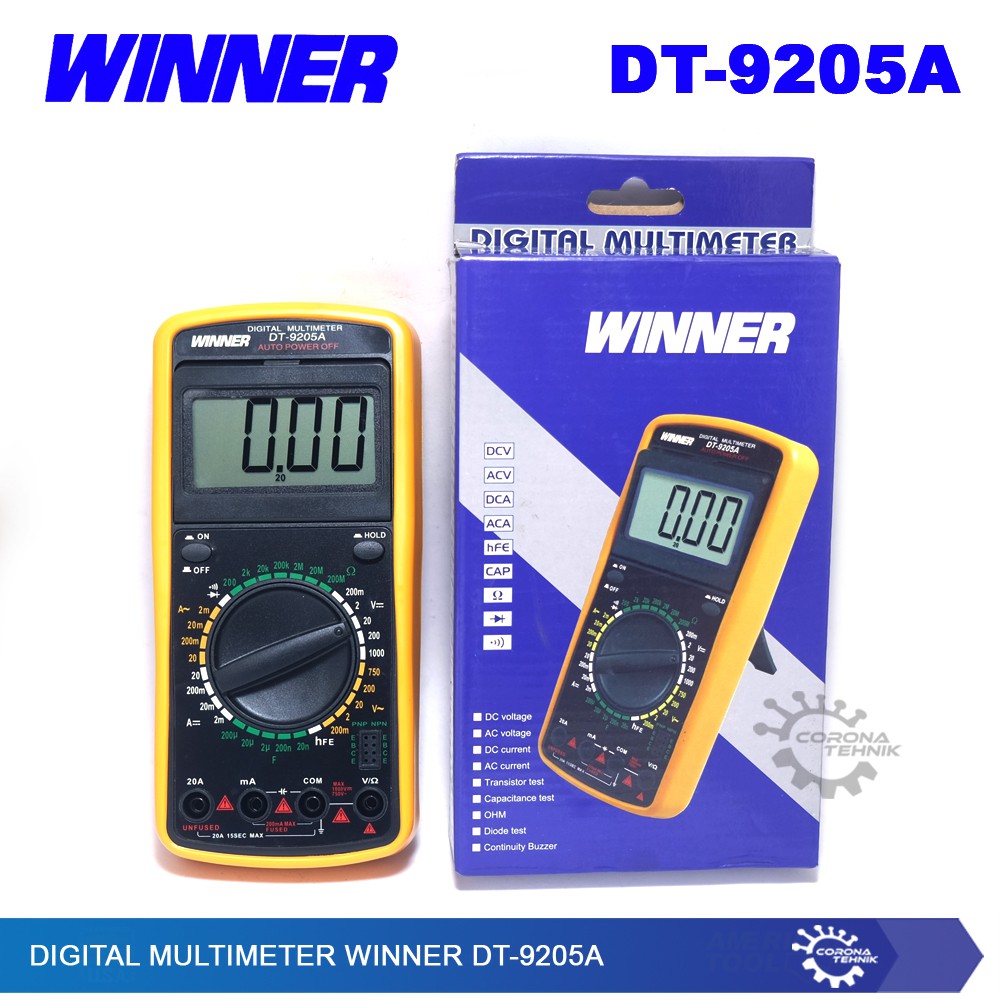

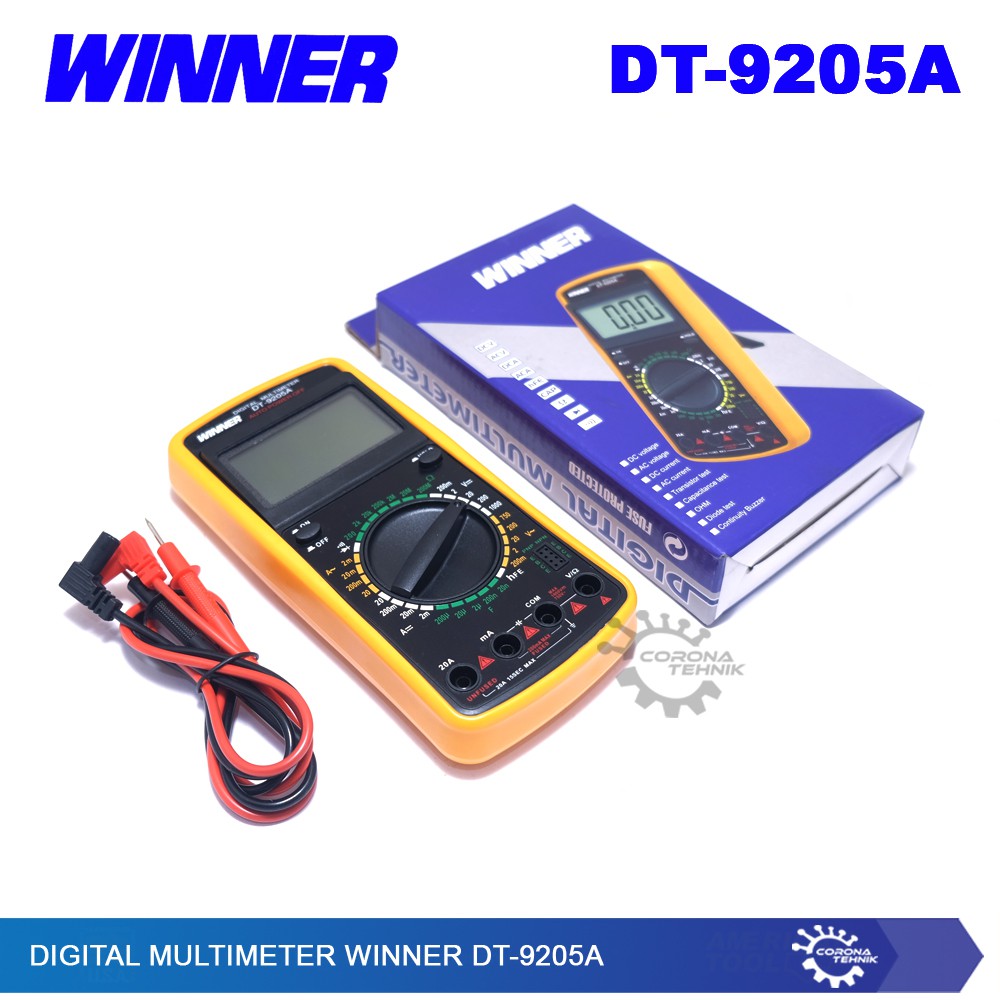

Winner DT-9205A Digital Multimeter - Adjustable Screen

Detail Winner DT-9205A Digital Multimeter - Adjustable Screen

Digital Multimeter Winner DT-9205A - Adjustable Screen

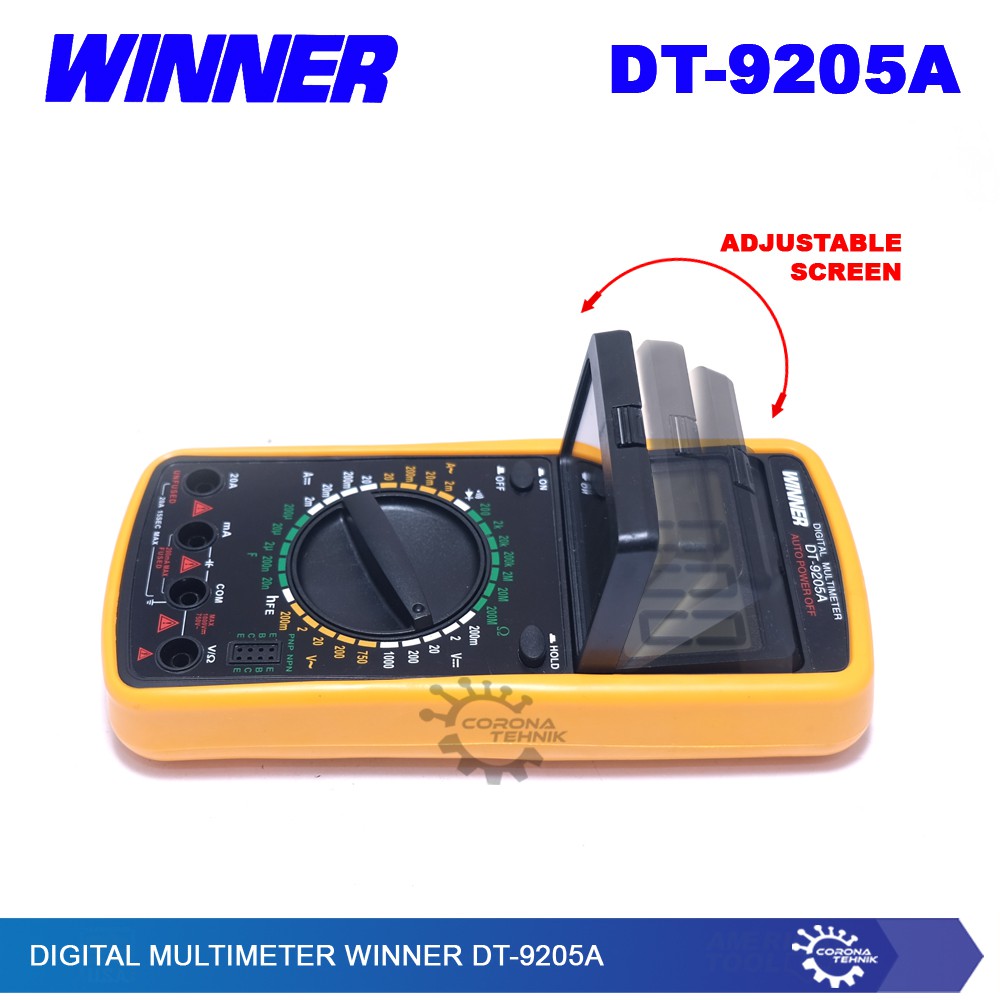

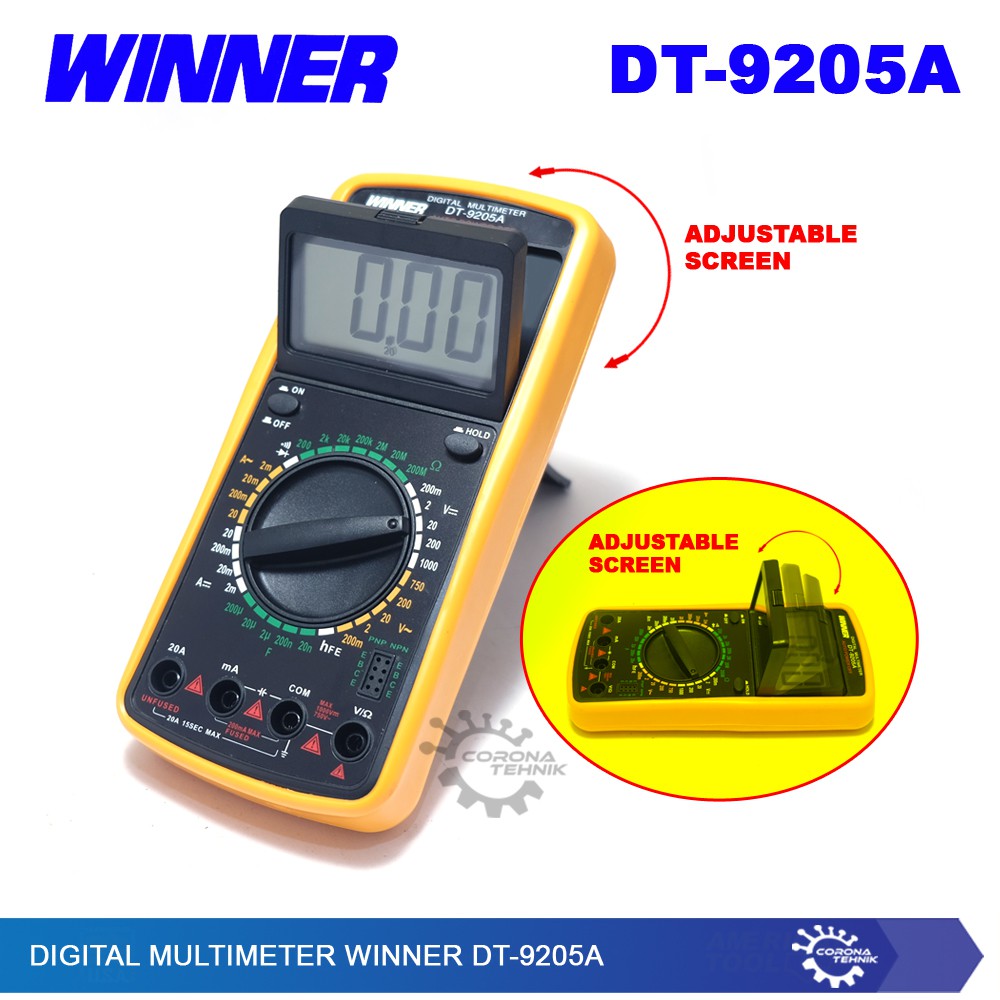

Kemiringan layar bisa disetting sesuai kebutuhan.

Dimensi : 19 x 9 x 3 cm, Dimensi Layar : 6,3 x 3,2 cm

Model No.: DT9205A
3 1/2 digital LCD display,max.display is 1999
Measure AC/ DC voltage, AC/ DC current, resistance, capacitance and diode, triode

overlow voltage alarm
overload protection
buzzer function
Auto Power off
Features:
1) with protection for maloperation. even if you use current gear to test voltage gear, only the
fuse will be blown.
2) Auto power off.
3) Stable performance and high reliability
4) Getting CE approval,meet EU standard,exported to EU countries

Please kindly check the below function and realted measuring range & accuracy.
DC voltage: 200 mVolt - 1000 Volt
AC Voltage: 200 mVolt - 750 Volt
DC Current : 2mA - 20A
AC Current : 2mA - 20A
Resistance : 200 Ohm - 200 MOhm
Capacitance: 20nF - 200uF
Diode: Ok
Triode: Ok
Circuit breaking or not breaking test: OK
Sleep mode:OK
Numerical hold: Ok
Power Supply: 9V battery
Max. Dislay: 1999
