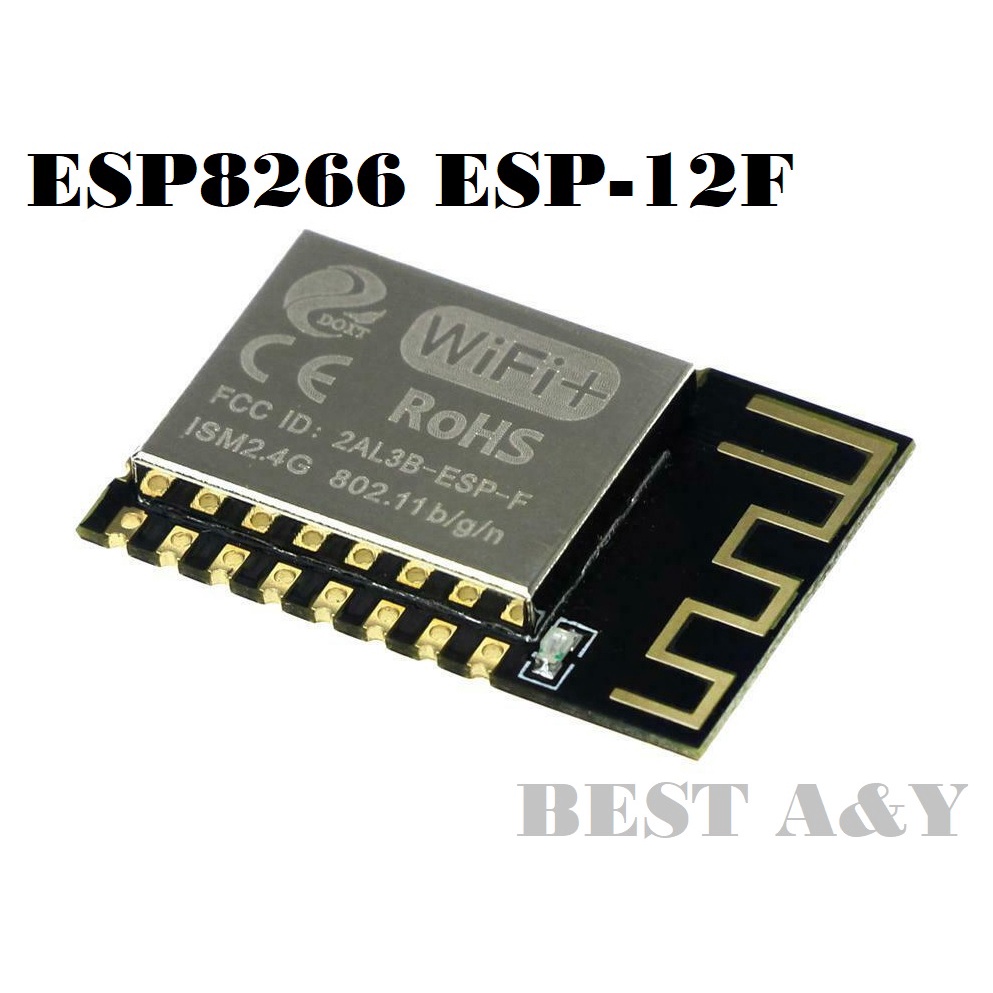

Spesifikasi produk : - Nama : Module ESP-12F - Sinyal WiFi : standard 802.11 b - Bit data : 32 Bit 80MHz - Frequensi WiFi : 2.4GHz - Daya standby : ± 1mW
Caution : - This module requires a 3.3 volt supply for VCC, and 3.3V logic. - It is not 5V tolant,Connect RX or TX on 5V for Arduino will destroy this module. - You must use a logic level converter, or a 3.3V for Arduino - The 3.3V supply on the for Arduino Uno has inadequate current capabilit to power this module. - You must provide a separate,higher 3.3V supply(about 300mA or better)
