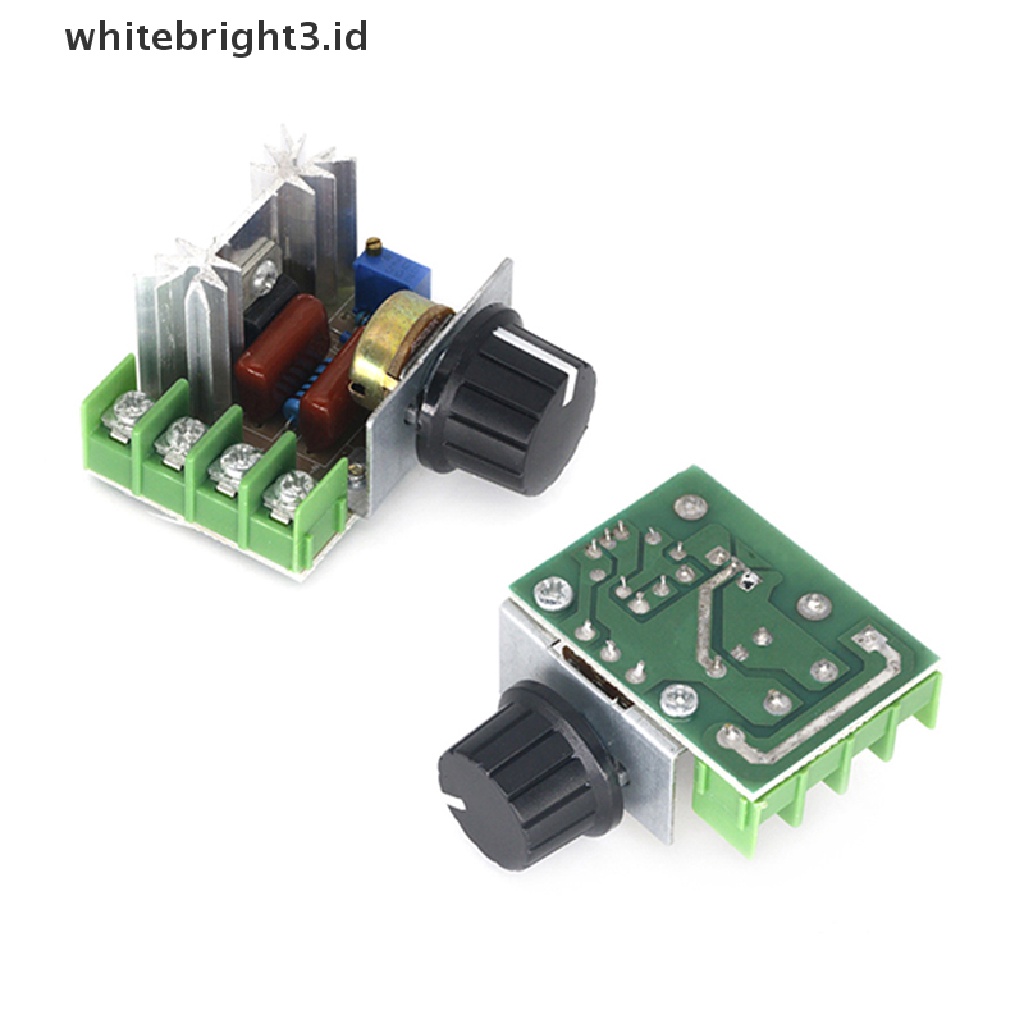

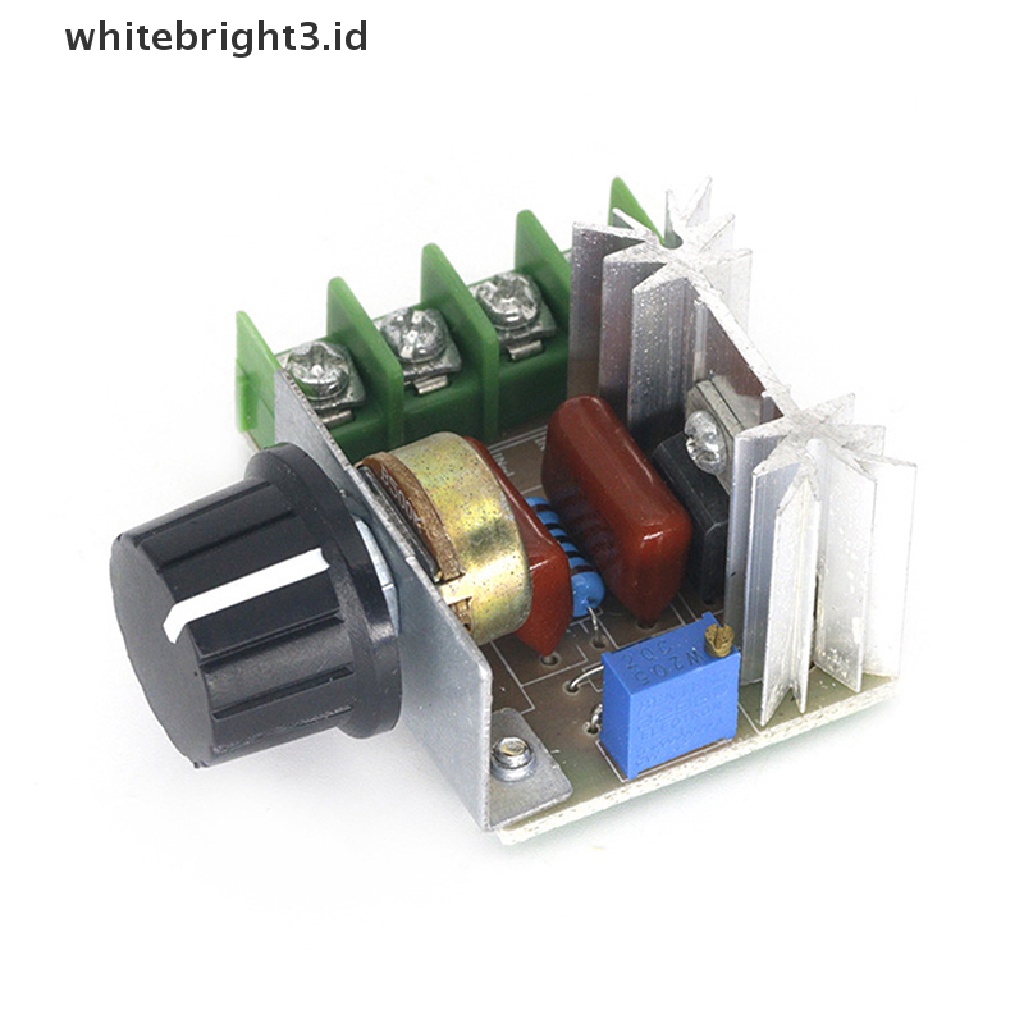

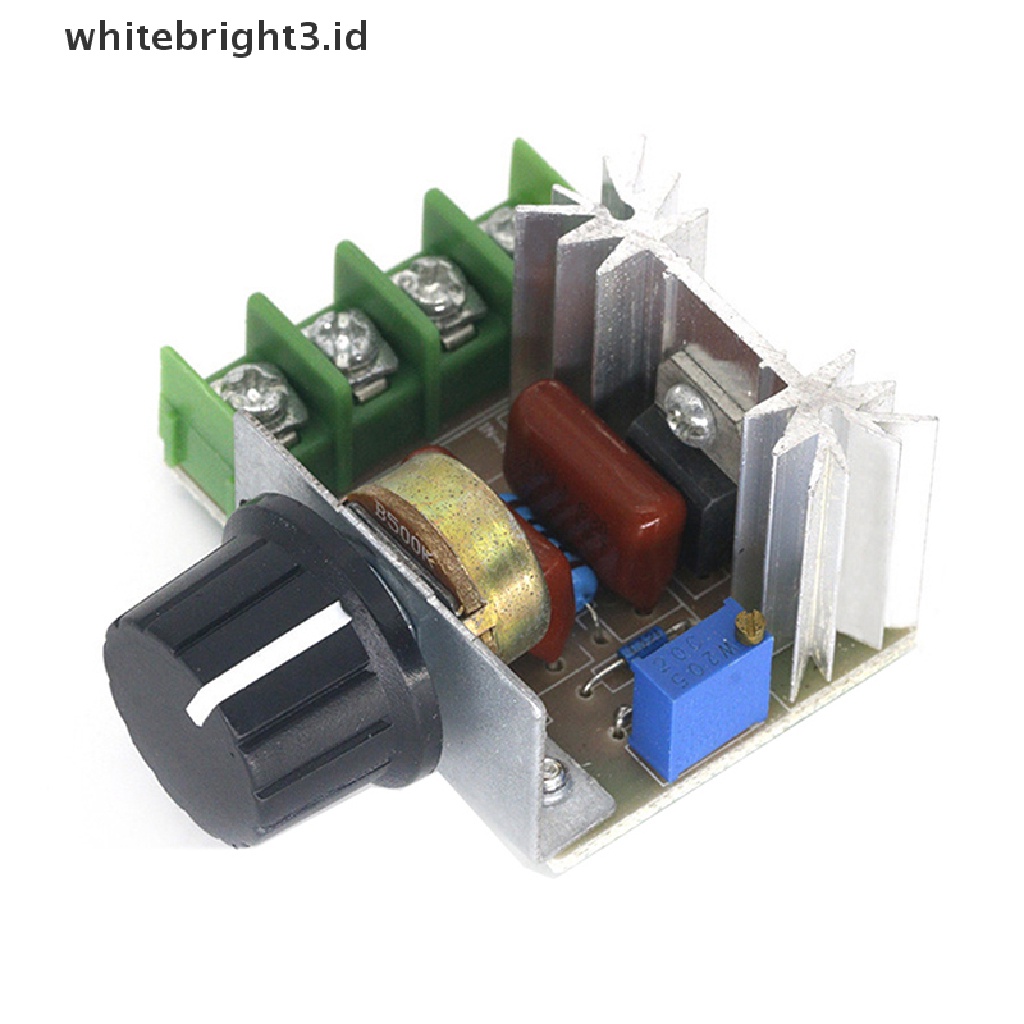

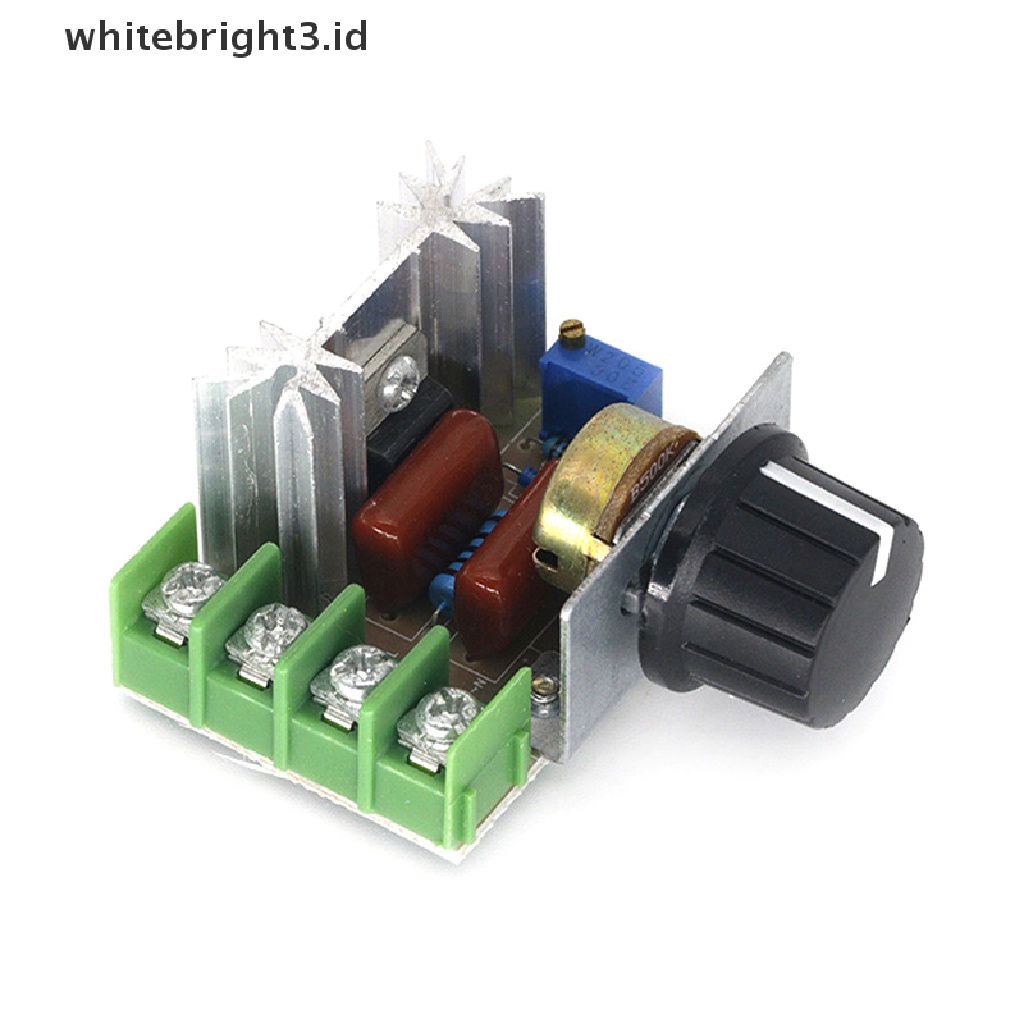

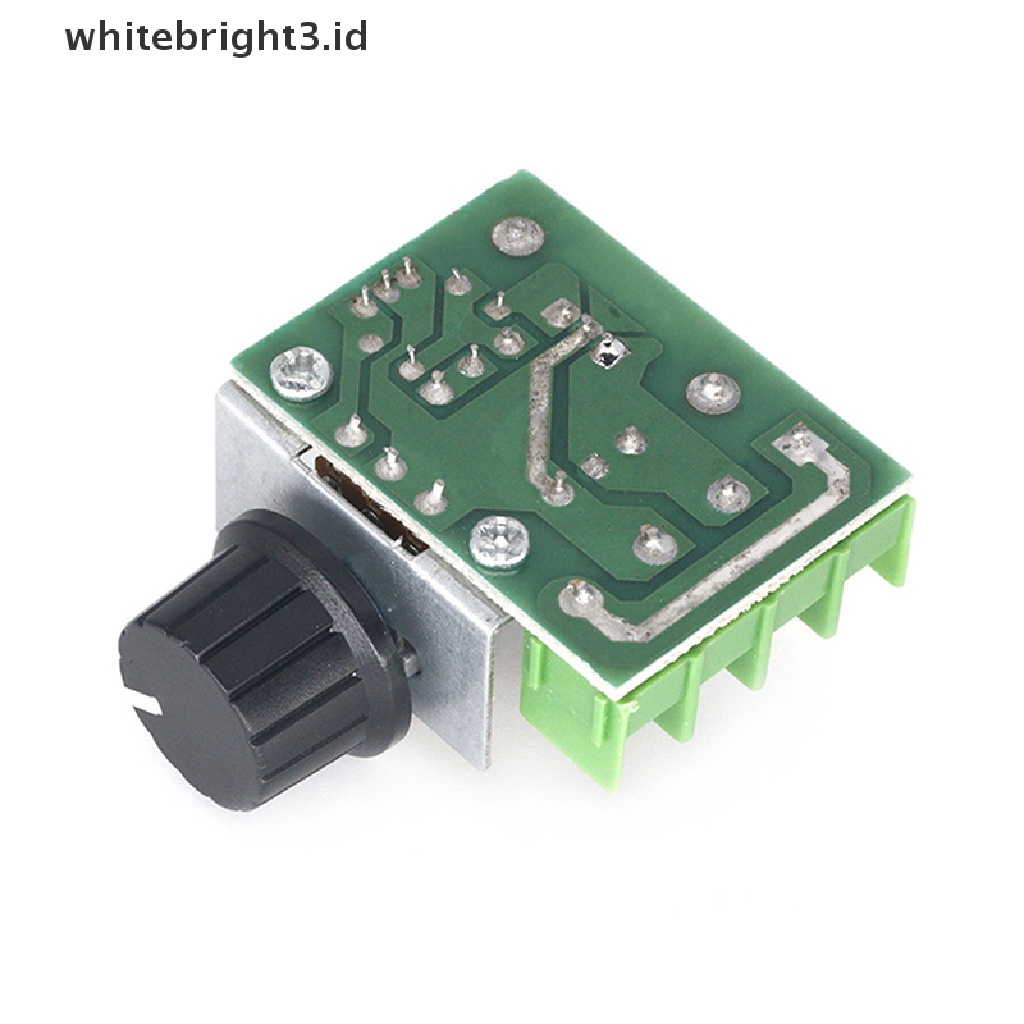

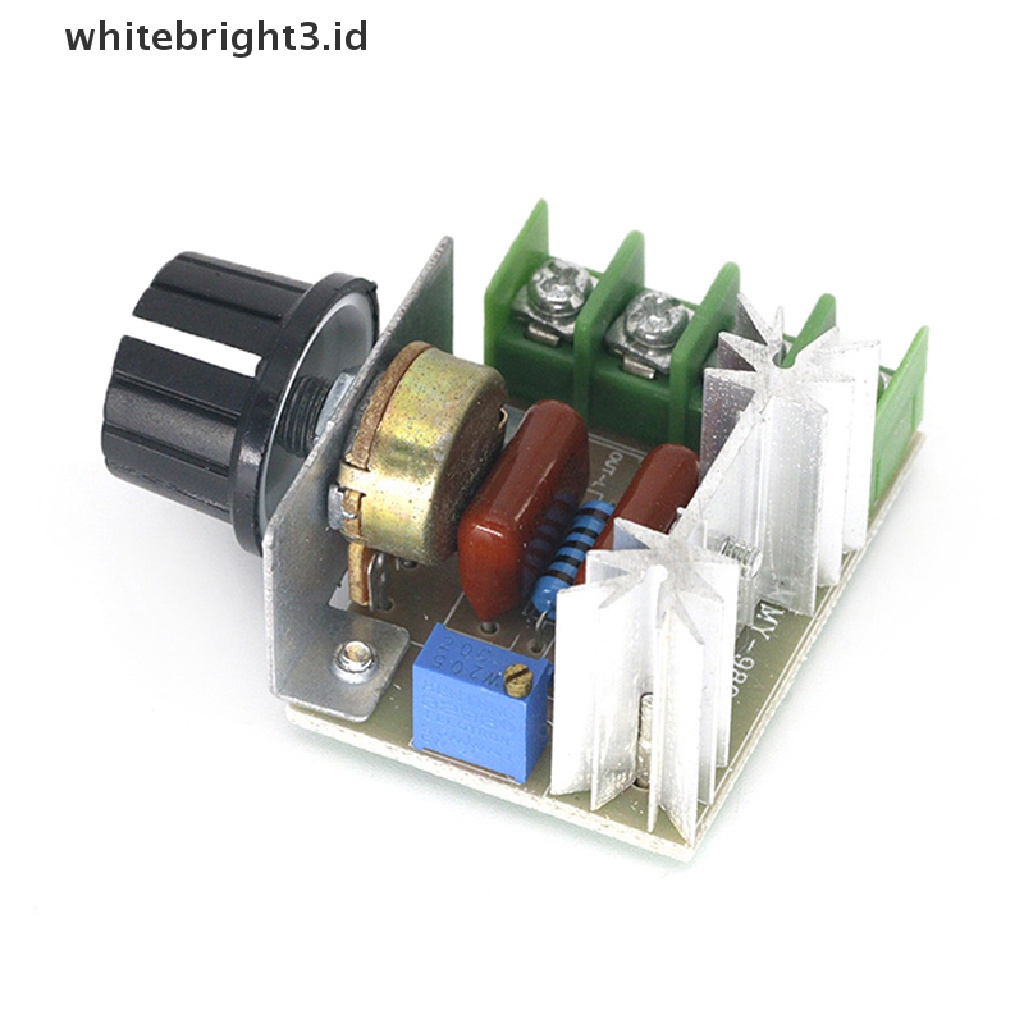

{whitebright3.id} 220V 2000W Voltage Regulator Dimming Dimmers Motor Speed Controller Thermostat ,

Detail {whitebright3.id} 220V 2000W Voltage Regulator Dimming Dimmers Motor Speed Controller Thermostat ,

Features:
100% brand new and high quality 。
Instructions:
Connect this product in series to the circuit of a table lamp or electrical appliance, (that is, disconnect any one of the live wire or neutral wire of the table lamp, electrical appliance, etc., and connect the two wires of this "product"). Rotate the potentiometer The rotating rod can play the role of light and dark adjustment, speed adjustment, pressure adjustment, and temperature adjustment; it is very convenient to use.
This product is suitable for: using new two-way high-power thyristor, because the current can reach 25A, it is a good solution to the overcurrent problem caused by the electric furnace wire when the resistance is too small when it is cooled; it can easily adjust the mains The output voltage can be adjusted arbitrarily between 90 and 220 volts for use by electrical appliances. Such as: electric stove, water heater heat adjustment, lamp dimming, small motor speed adjustment, electric soldering iron temperature adjustment, etc. So as to achieve the effects of dimming, temperature and pressure. It can be used for large-scale electrical appliances with a power consumption of less than 2000 watts. Since the power is already large, ordinary household electrical appliances or small factories are sufficient. (The power of inductive or capacitive load should be reduced. The voltage regulator is equipped with two-way high-power thyristor, and the potentiometers are equipped with screw caps, which can be used without adding any components, which is very convenient and practical).

Operating voltage: AC 220V
Maximum power: 2000W
Voltage regulation: AC 50-220V A
Specification size: high temperature resistant FR-4 circuit board circuit board 36MM*48MM
External dimensions: 48MM*60MM (knob direction) *28MM (height)
Thyristor withstand voltage up to 1200V/current 25A
1.6mm thick epoxy copper clad laminate
This voltage regulator is equipped with a peak voltage absorption circuit to effectively protect the high-power thyristor, and has a longer life and more durable.

Package included:
1pc * Regulator

Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3cm measuring deviation due to manual measurement.
