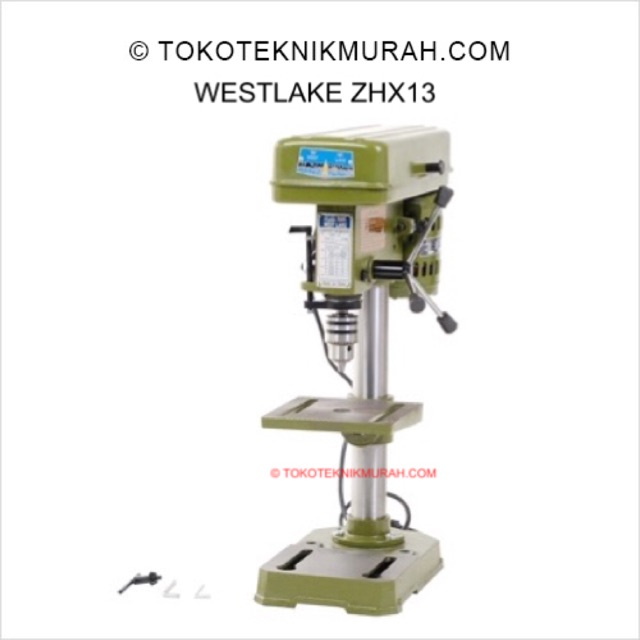

Detail Westlake ZHX13 - Mesin Bor Duduk 13 mm - ZHX-13 Tapping Machine ZHX 13
max.drilling capacity : 13mm diameter of column : 46mm spindle travel : 50mm distance spindle axis to column generating line : 103mm max.distance spindle nose to table : 220mm max.distance spindle nose to base : 300mm spindle tapper : B16 spindle speeds range : 515-2.580rpm spindle speeds series : 5 dimension of worktable surface : 160x160 dimension of base : 280x180mm overall height : 580mm power of motor : 180watt voltage : 220volt gross/net weight: 21/19kg packing dimension : 46x33x23
Gambar produk
Westlake ZHX13 - Mesin Bor Duduk 13 mm - ZHX-13 Tapping Machine ZHX 13
