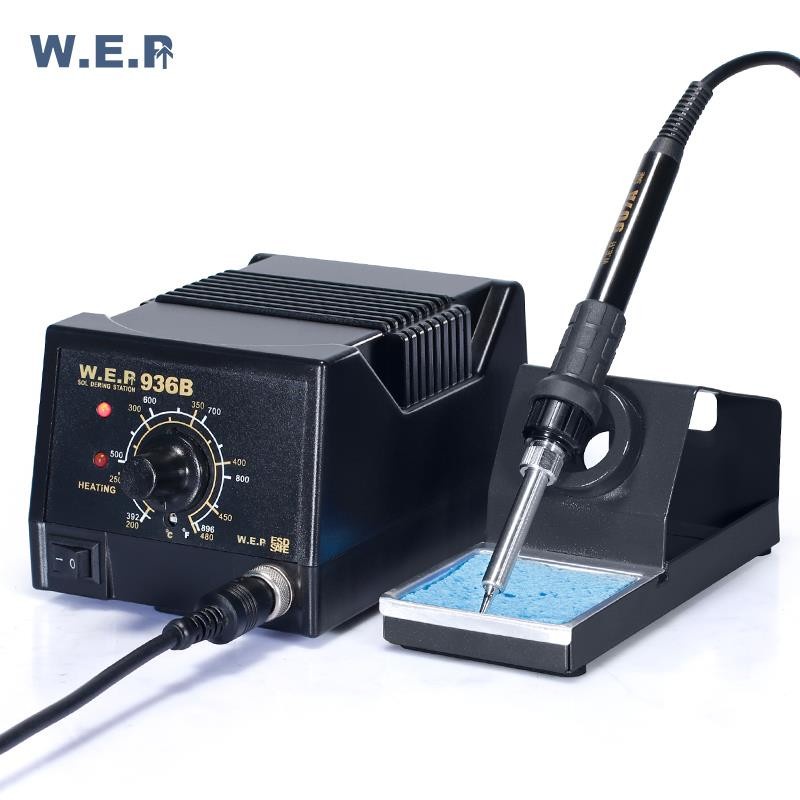

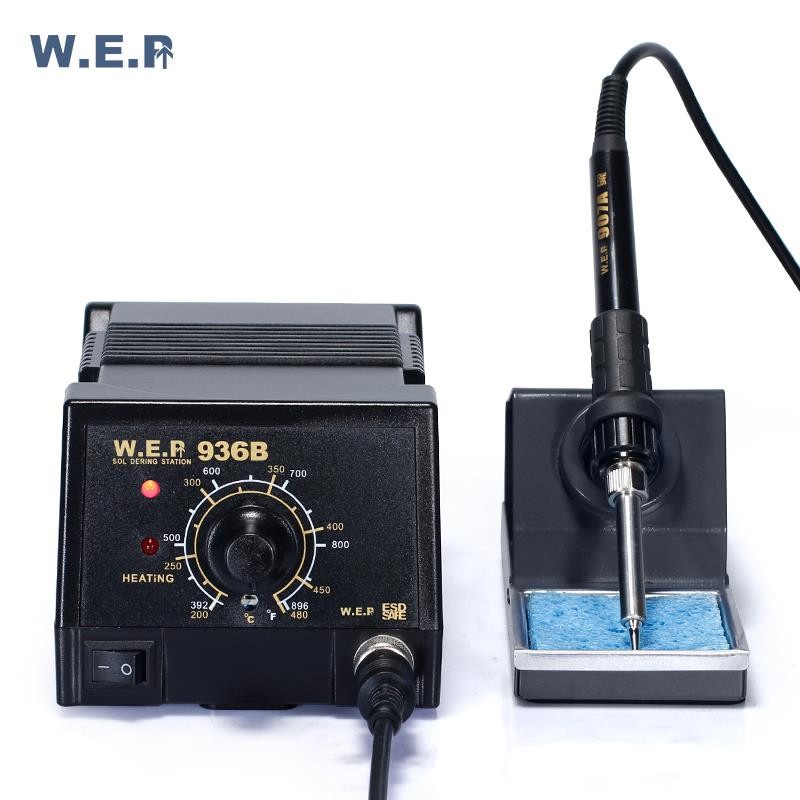

WEP 936B ESD Soldering Iron Temperature Adjustment 200C~480C Original

Detail WEP 936B ESD Soldering Iron Temperature Adjustment 200C~480C Original

WEP 936B ESD Soldering station for cellphone

Features


1.Employs new solidmold manufacturing processes, withstanding voltage and drop damage. Its power is higher
than the general 936 soldering station rapid heating，fast temperature compensation，High-precision and
stable temperature control, this can effectively prevents cold solder joints.
2.An anti-static design effectively prevents damage to delicate components.
3.Our equipment applies the high quality ceramic heater which will not be twisted off and longer life.
4.This soldering station comes with a blue ferroalloy soldering iron base for durability.


Parameters
parameters
Rated voltage
AC 220V±10% 50Hz
Output power
40W
Operating Environment
0～40℃ relative humidity＜80％
Storage environment
－20～80℃ relative humidity＜80％

Dimensions
36*17*11.5CM
Weight
1.79KG
Operating voltage
AC 26V±10% 50Hz
Temperature range
200℃～480℃
Temperature Stability
±10℃ （Static）
Heating elements
Common heater
Tip-to-Ground Impedance
＜2Ω
Tip-to-Ground Voltage
＜2mV


Standard Configuration




Applications

WEP 936B constant temperature soldering station is ideal for the desoldering,

maintenance of chip components ,plug in components,cables,and integrated

components ,in the fields including electronic products production,mobile

phone repair industry,precision electronic repair industry.
