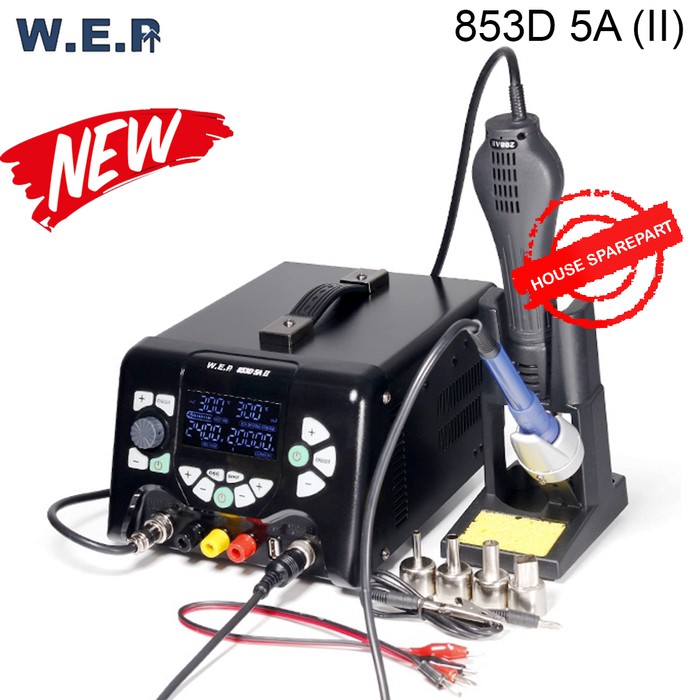

Detail WEP 853D 5A Generasi II Blower Uap + Soldering +Power Supply Hp 5A 30V
Deskripsi WEP 853D 5A Generasi II Blower Uap + Soldering +Power Supply Hp 5A 30V Technical data of the 853D5A II station
Robust and ergonomic housing. Processor control, high stability of operation, extension of the service life of heating elements, energy saving. Total power 920W 150W power supply output power 10W USB power output Size 250x190x137 ± 5mm Weight 3.56kg Wakefulness. Stores the last set temperature 3 work programs for hot air, flask, power supply Displays the temperature in ° C / ° F Digital temperature correction Hotair soldering iron
Type Air flow: brushless fan Air flow: <120L / min Temperature range: 100 ° C-480 ° C Temperature stability: ± 1 ° C Display type: LED display Operation in Automatic Manual mode Arrowhead soldering iron
Temperature range: 200 ° C-480 ° C Temperature stability: ± 1 ° C Tip soldering iron maximum peak power 75W Tip soldering iron rated power 43W Earth voltage type: <2mV Earth Impedance Tip: <2ohm Display type: LED display Heating element: ceramic hakko Sleep function for soldering iron Power Supply
Output voltage: 0 ~ 30V Output current: 0 ~ 5A adjustable Load stability <0.067% ± 2mV Temperature coefficient: <300ppm / ° C DB ripple <0.1 Vrms Accuracy of voltage setting: 0.1V Accuracy of current setting: 0.01A Voltage display accuracy: <0.6% 20mV Display accuracy: <0.6% 2mA CCCV operation After setting the parameters, turn on the power Display type: LED display
