WEP 853D 0-30v 5A 3in1 Hot Blower Uap Soldering Station Power Supplye

Detail WEP 853D 0-30v 5A 3in1 Hot Blower Uap Soldering Station Power Supplye

Deskripsi WEP 853D 0-30v 5A 3in1 Hot Blower Uap Soldering Station Power Supply

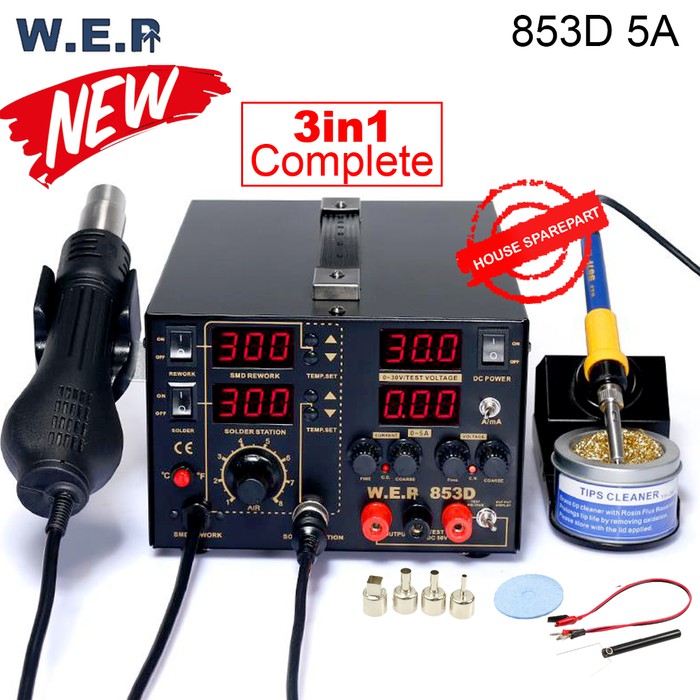

WEP 853D5A 3in1, 3xLED soldering station with real Hotair temperature reading and 30V 5A power supply with powerful 75W soldering iron
!! FAN !!

Stasiun solder WEP 853D memiliki catu daya 30V 5A bawaan
Stasiun ini juga dilengkapi dengan pengukur tegangan
Dudukan untuk pantat hotair dengan penyalaan otomatis dan siaga
Tip kuat dengan elemen pemanas Hakko asli dengan daya puncak 72-75W [tip jauh lebih kuat dari Zhaoxin, Aoyue di mana daya sebenarnya sekitar 17W]
Catu daya beroperasi dalam mode CC., CV
Suhu nyata dari udara panas dan gua-tidak semua stasiun memiliki fungsi ini
Pendinginan otomatis pemanas setelah bekerja
Satu set nozel disertakan

Technical data of the 853D 5A 30V station

Robust and ergonomic housing.
Processor control, high stability of operation, extension of the service life of heating elements, energy saving.
Wakefulness.
Stores the last set temperature
Displays the temperature in ° C / ° F
Hotair soldering iron

Type Air flow: brushless fan
Air flow: <120L / min
Temperature range: 100 ° C-480 ° C
Temperature stability: ± 1 ° C
Display type: LED display
Arrowhead soldering iron

Temperature range: 200 ° C-480 ° C
Temperature stability: ± 1 ° C
Earth voltage type: <2mV
Power of the tip: 75W
Earth Impedance Tip: <2ohm
Display type: LED display
Heating element: ceramic hakko
Power Supply

Output voltage: 0 ~ 30V
Output current: 0 ~ 5A adjustable
Current measurement mode: mA / A
Operating Mode: Test / Power Supply
CCCV operation
Temperature coefficient: <300ppm / ° C
DB ripple <1mvrms (virtual value)
Adjustment: coarse / fine
Display type: LED display


Total Semua 1000W listrik ya guys
