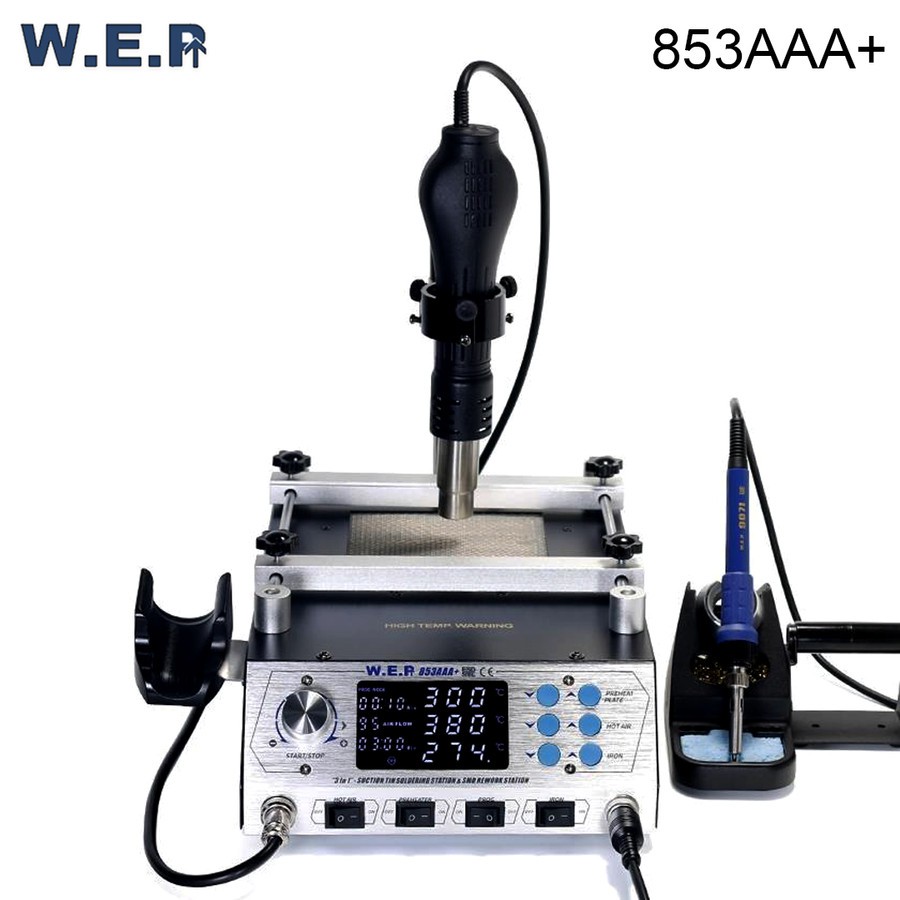

WEP 853AAA+ Program Controlled BGA Rework Station Automatic Preheating

Detail WEP 853AAA+ Program Controlled BGA Rework Station Automatic Preheating

SPECIFICATION
Supply voltage: 230 V / 50 Hz (network)
Capacity: 1270 W
Memory settings
3 work programmes
LCD display
Control through PID
Rapid heating to a predetermined temperature
Cooling system after work
Convenient adjustment of air flow
ESD-safe
Safe soldering details, sensitive to temperature: QFP, PLCC, BGA


Hotair Soldering Iron
Adjustable temperature hot air from 100 °C to 480 °C
Temperature stability +/-1 °C

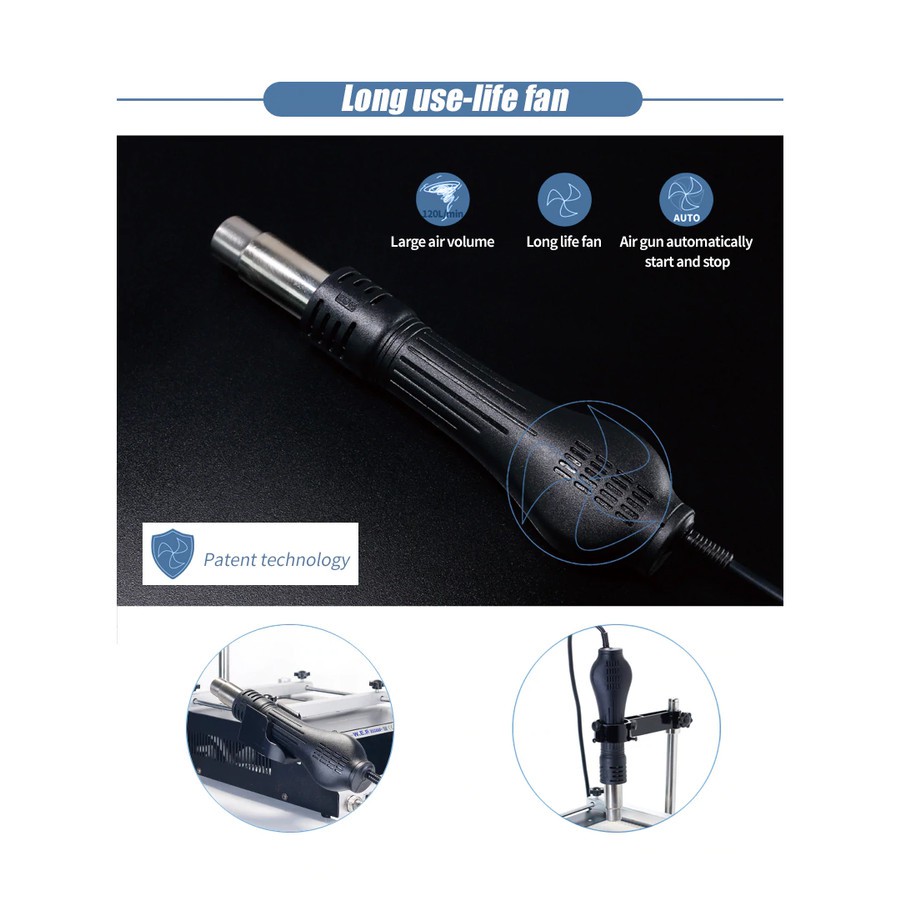

The source of air supply: the fan in the iron, based on the brushless motor
Air flow up to 130 l/min

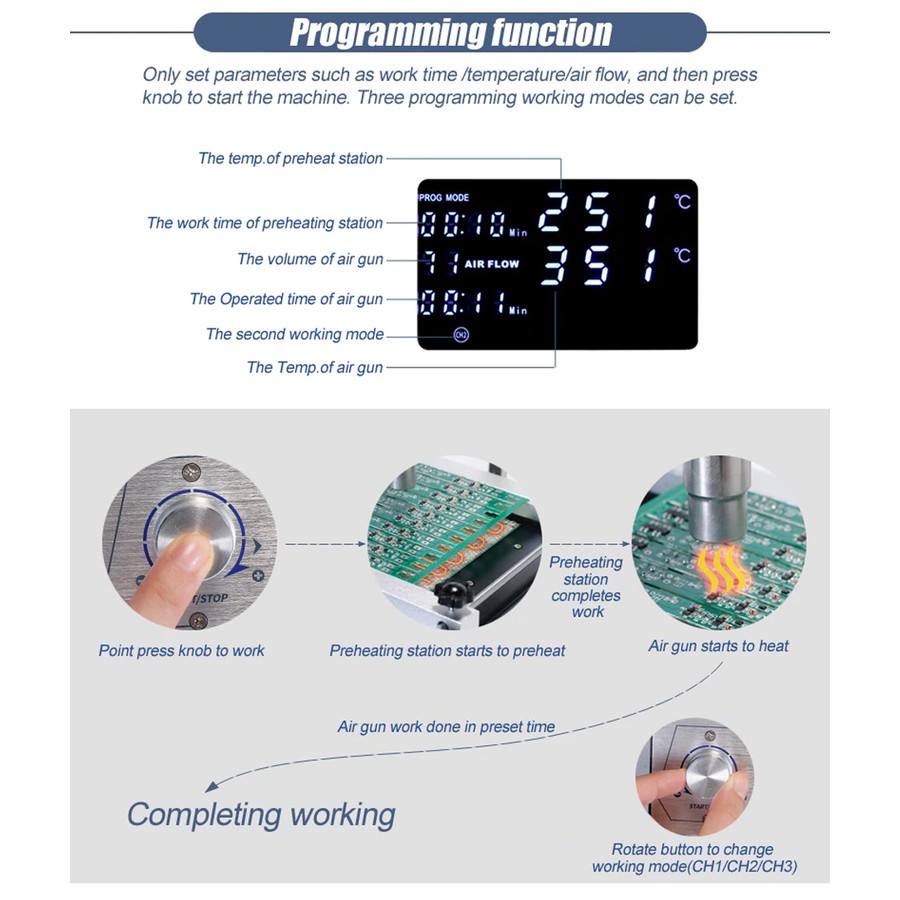

Programming: time, temperature, strength of airflow

Tip-based Soldering Iron
Adjustable temperature soldering tip: 200 °C to 480 °C
Temperature stability +/- 1 °C
Soldering iron power: from 72 to 75 W
Voltage ground: up to 2 mV
Ground resistance: 2 Ω


Heater
Power consumption: 600 W
Temperature range: from 50 °C to 300 °C
Temperature stability +/- 2 °C
The surface of the heater: 120 x 120 mm
Programming: time, temperature


INCLUDES:
Soldering station, heater WEP 853AAA+
Hotair iron
Stand for hotair iron
Tip-based soldering iron + tip T-B
Stand for tip-based iron with sponge for cleaning the soldering tip
Nozzle set:
round with a diameter of 4.4 mm
round with a diameter of 7 mm
round with a diameter of 9 mm
square 12 x 12 mm
A gripper for lifting circuit
Power cable
The user manual
