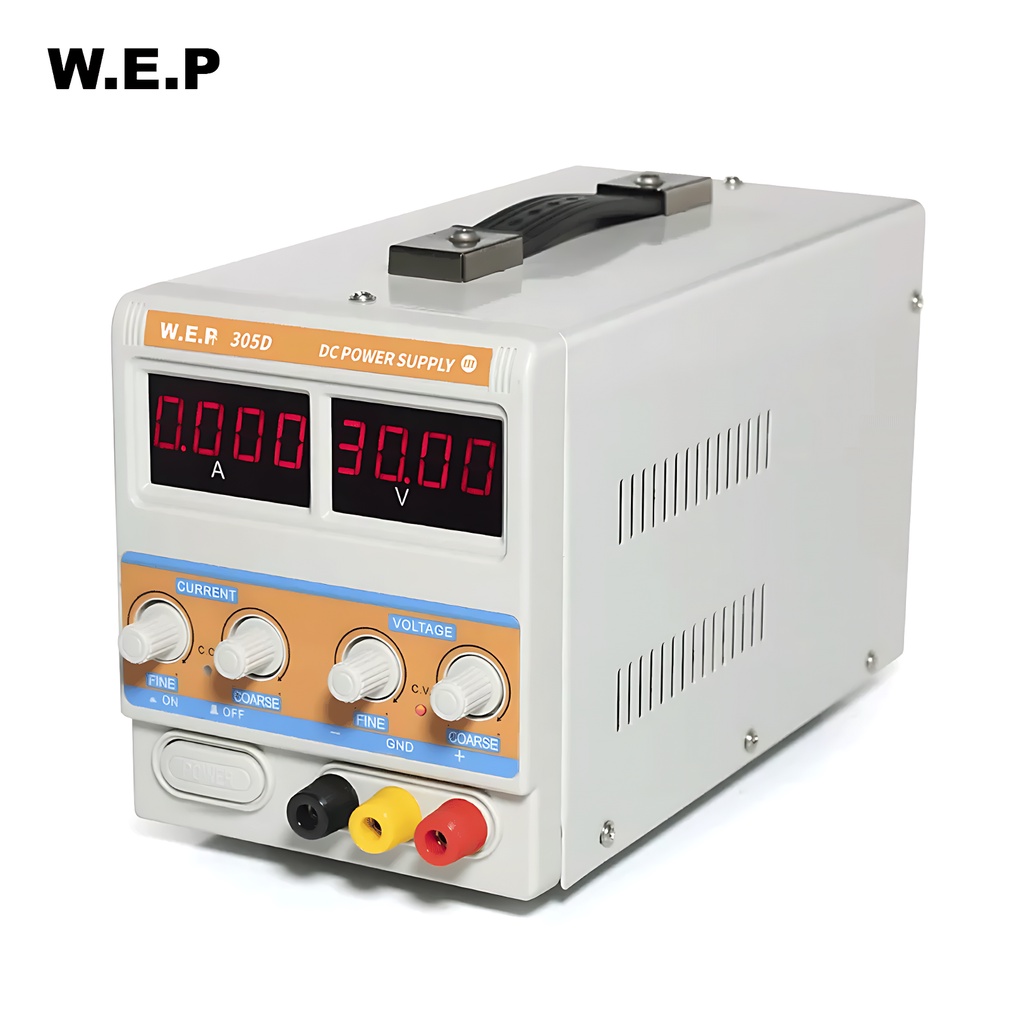

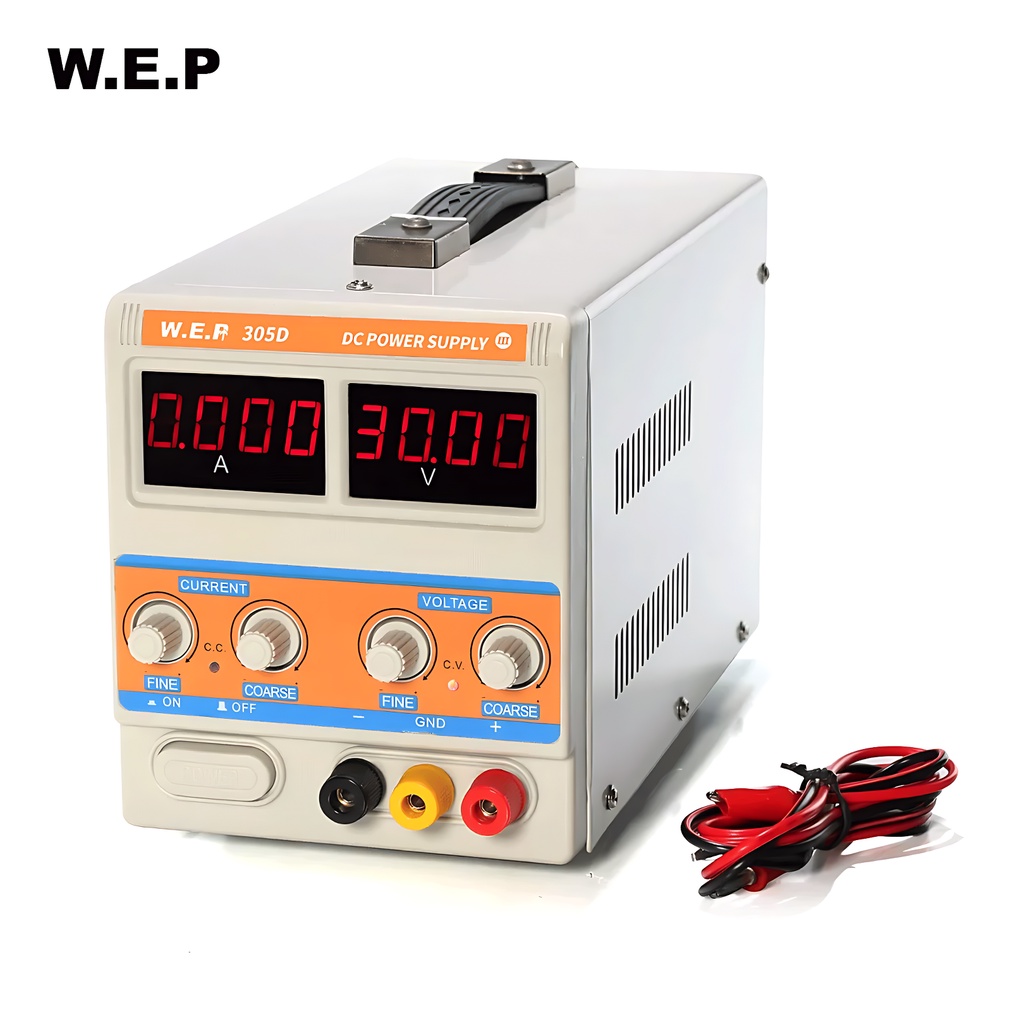

Detail WEP 4 LED Digital Display DC Power Supply 30V/5A PSN 305D Original
WEP 4 LED Digital Display DC Power Supply 30V/5A PSN 305D Original
Parameters
Mode
305D-III
Output Power
90W
Power Supply Voltage
220V ±10% 50Hz or 110V ±10% 60Hz
Adjust Range
0~30.00V 0~5.0000A
Operation Conditions
Temperature 0~40°C Relative humidity<80%
Inner box Dimension
17.5*31.5*20cm
Weight
4.8kg
Voltage stability
≤0.01%+2mV
Voltage Coefficient
<300PPM/C
Ripple noise voltage
<1%Vrms
Main Function
1.Output constant current adjustable. 2.Output constant voltage adjustable. 3.LED voltage and current display. 4.Constant voltage and current operation in individual. 5.Over current protection. 6.Current and voltage regulation are smooth and not gears regulation. 7. 4 Digital precise display current value,prescise current value mA.
