WEP 305D-IV 5A 30V DC Power Supply LCD Variabel Display Arus Tegangan

Detail WEP 305D-IV 5A 30V DC Power Supply LCD Variabel Display Arus Tegangan

Deskripsi WEP 305D-IV 5A 30V DC Power Supply LCD Variabel Display Arus Tegangan

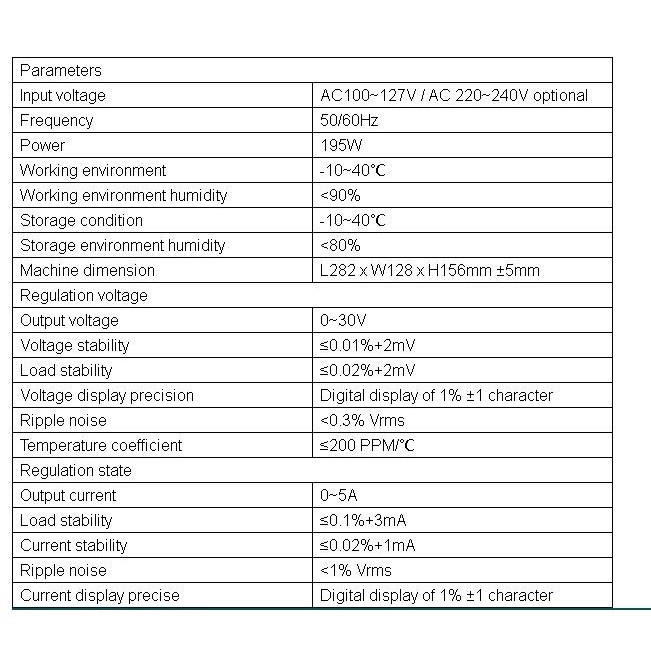

Parameters
Input voltage AC100~127V / AC 220~240V optional
Frequency 50/60Hz
Power 195W
Working environment -10~40℃
Working environment humidity <90%
Storage condition -10~40℃
Storage environment humidity <80%
Machine dimension L282 x W128 x H156mm ±5mm
Regulation voltage
Output voltage 0~30V
Voltage stability ≤0.01%+2mV
Load stability ≤0.02%+2mV
Voltage display precision Digital display of 1% ±1 character
Ripple noise <0.3% Vrms
Temperature coefficient ≤200 PPM/℃
Regulation state
Output current 0~5A
Load stability ≤0.1%+3mA
Current stability ≤0.02%+1mA
Ripple noise <1% Vrms
Current display precise Digital display of 1% ±1 character

Package
1unit Power Supply 305D IV
cable Merah Hitam
Manual book

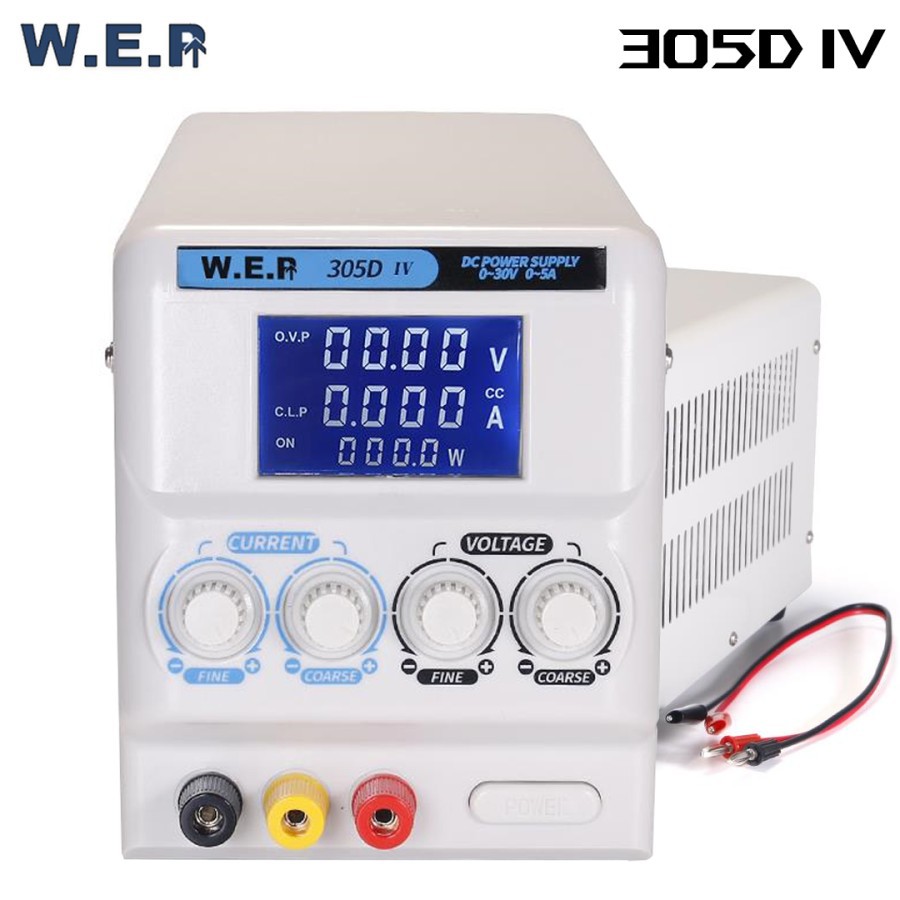

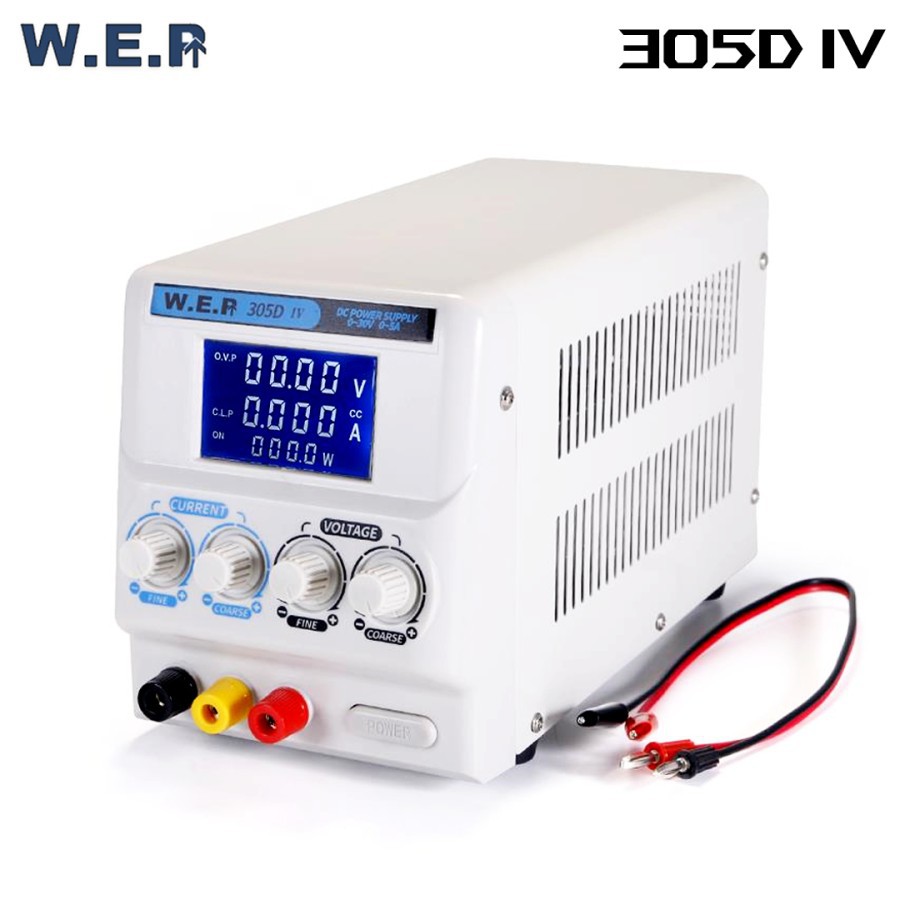

Gambar produk
