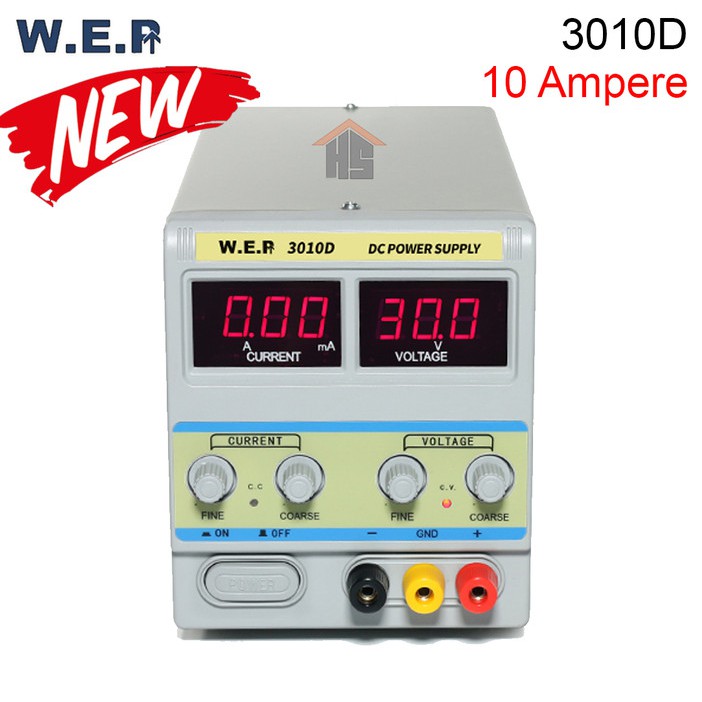

Detail WEP 3010D DC STABILIZED POWER SUPPLY 10 Ampere 30Volt 300W AC 220V

WEP 3010D DC STABILIZED POWER SUPPLY 10 Ampere 30Volt 300W AC 220V
CHARACTERISTIC
1.This unit now features a Dual LED display with highly accurate LED digital readout.


2.Maximum output is 30V at 10A.


3. High stabilized output voltage.


4. Short circuit protection.


5.Over loading and current protection.

PARAMETROS
MODEL
3010D
Output Power

300W
Display type Dual LED Display
Working Temperature ±2°C/3.6°F (static)
Heater voltage -10°C ~ 40 °C
Operating Conditions:
Supply power
AC 220-240V, 50Hz/60Hz
Working Temperature
-10°C ~ 40 °C
Relative Humidity ‹ 90%
Storage Conditions -10°C ~ 40 °C
Relative Humidity ‹ 80%
The output voltage is between 0 and nominal value continuously adjustable
Voltage Stability
≤0.01% +2mV
Load Stability
≤ 0.01% +2mV
Recovery Time
≤100µS
Ripple Noise
≤1 MVRMS(RMS)
Temperature Coefficient
≤ 200PPM/°C
The output current is between 0 and nominal value continuously adjustable
Power Stability
0.1% + 3mA
Load Stability
0.2% + 3mA
Ripple Noise
≤2mArms(RMS)
