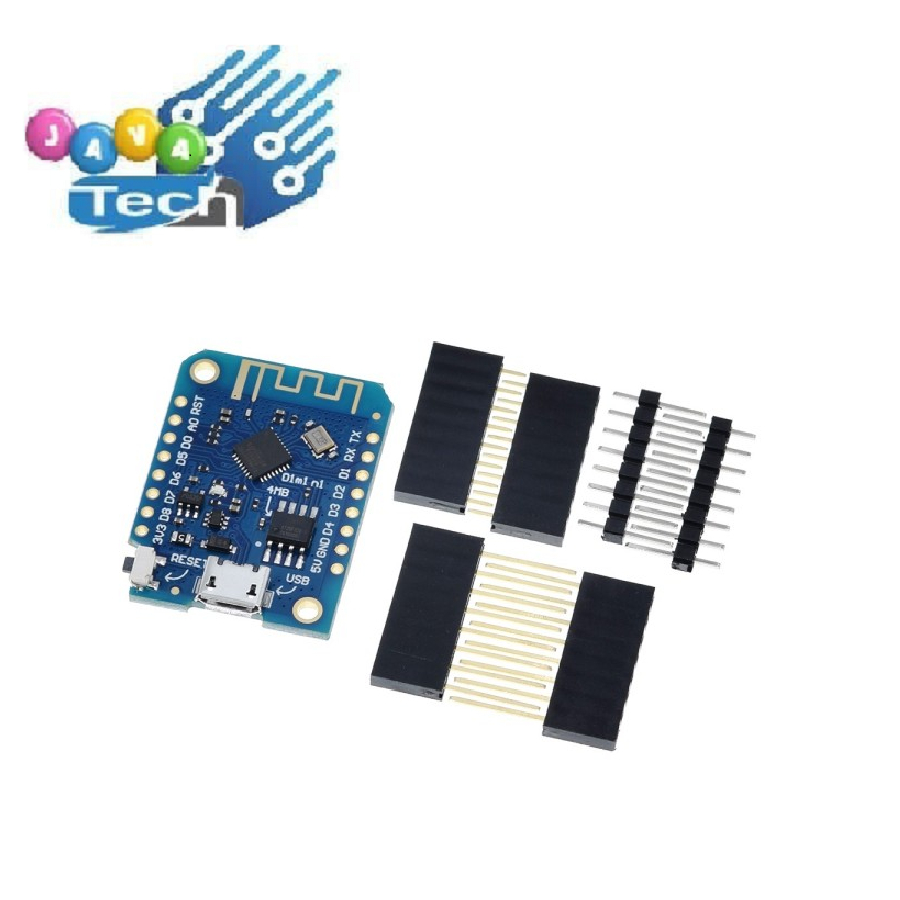

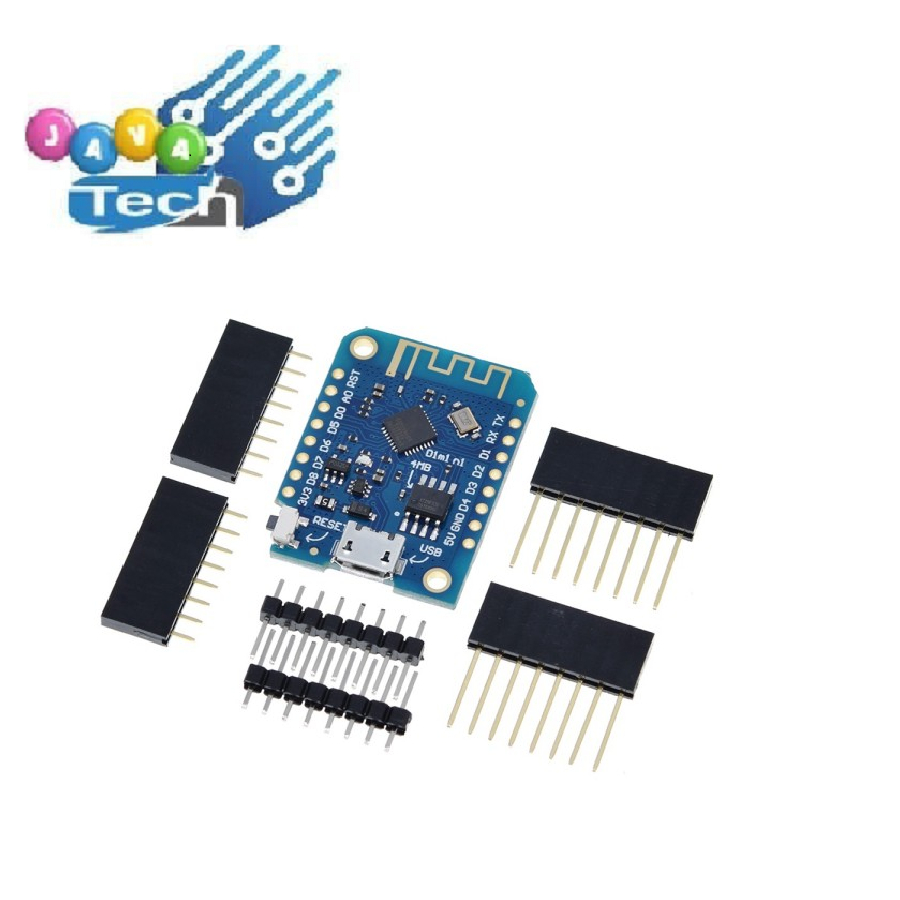

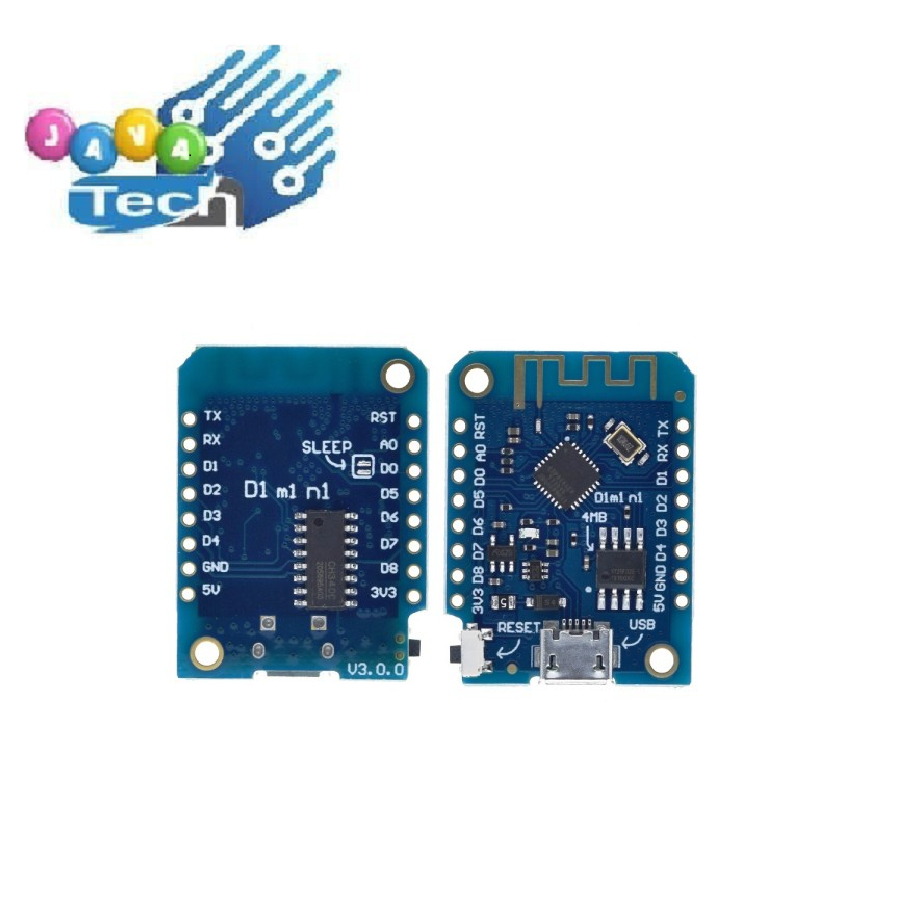

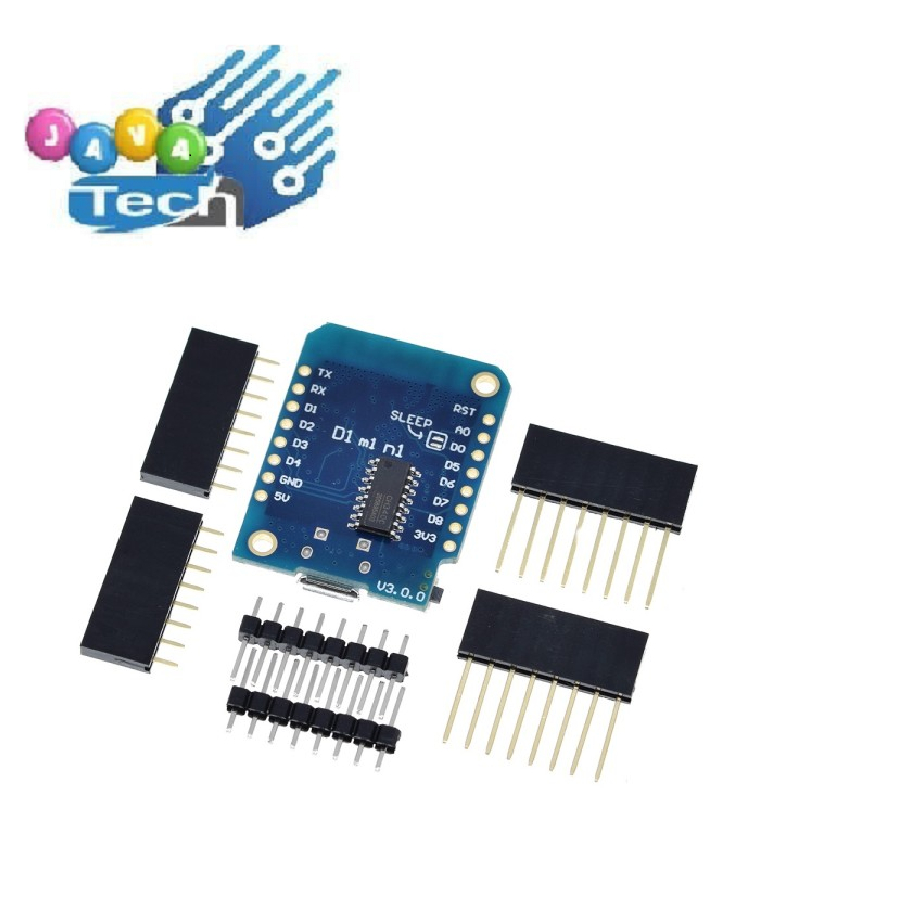

Wemos D1 Mini V3 ESP8266 CH340 Wifi IOT Development Board Module

Detail Wemos D1 Mini V3 ESP8266 CH340 Wifi IOT Development Board Module

Description:
The WeMos D1 mini is a miniature wireless 802.11 (Wifi) microcontroller development board. It turns the very popular ESP8266 wireless microcontroller into a fully fledged development board. Programming the D1 mini is as simple as programming any other Arduino based microcontroller as the module includes a built-in microUSB interface allowing the module to be programmed directly from the Arduino IDE (requires the ESP8266 support to be added via board manager) with no additional hardware.

Microcontroller: esp-8266ex
Operating voltage: 3.3v
Clock speed: 80MHZ/160MHZ
Use espressif esp8285 chip
Regulator: RT9013
1MB Flash.
One Micro USB connection.
1 analog input(3.2V max input).
Compatible with Arduino; Compatible with nodemcu.
11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported(except D0).

Features
11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported(except D0)
1 analog input(3.2V max input)
a Micro USB connection
Compatible with Arduino
Compatible with nodemcu
Compatible with MicroPython
4MB Flash
Lots of Shields
