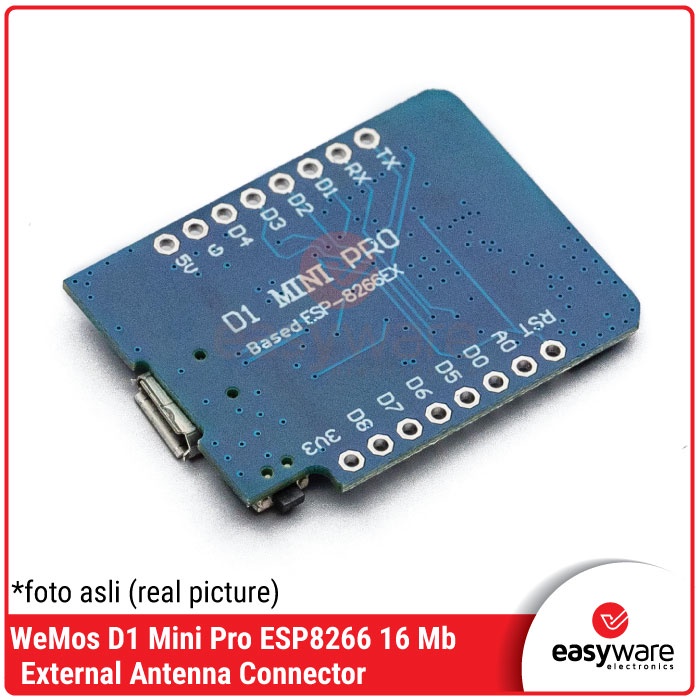

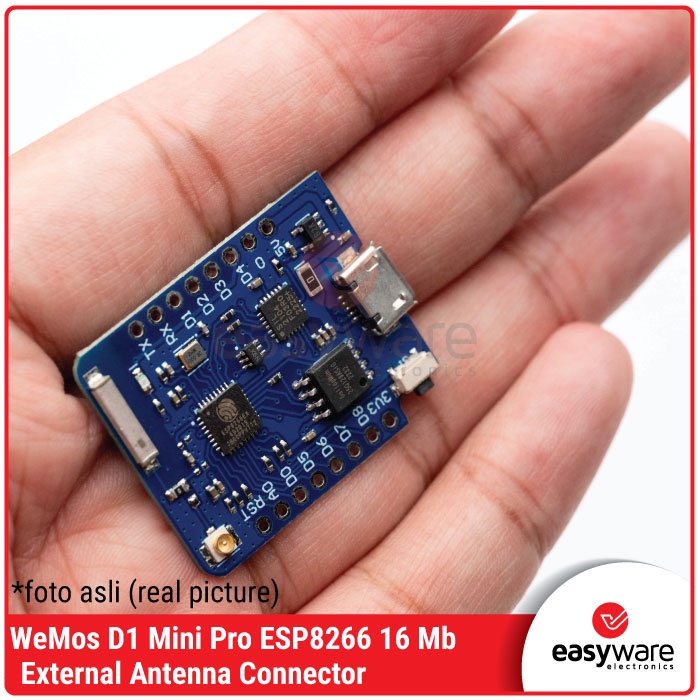

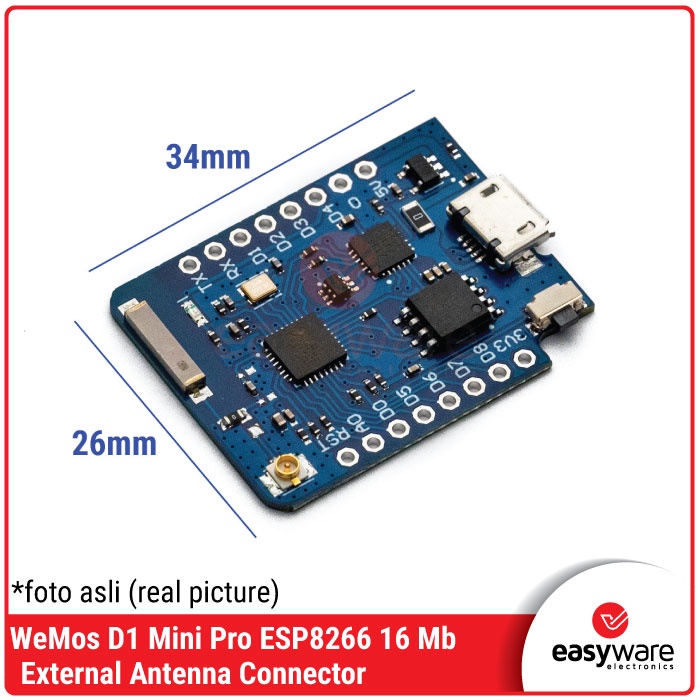

WeMos D1 Mini Pro ESP8266 16MB Board with External Antenna Connector
Deskripsi singkat
Elektronik > Elektronik Lainnya > WeMos D1 Mini Pro ESP8266 16MB Board with External Antenna Connector
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail WeMos D1 Mini Pro ESP8266 16MB Board with External Antenna Connector
Hi #RekanEasyWare ...EasyWare Part#: EP000506
Note:
- Produk ini belum termasuk antenna. Dijual terpisah
The ESP8266 is a low-cost Wi-Fi microchip, with a full TCP/IP stack and microcontroller capability. It has a 16MB (128M bit) Flash and an External antenna connector with a Built-in ceramic antenna.
Fitur:
- 11 digital input/output pins
- Interrupt/PWM/I2C/one-wire
- 1 analog input(3.2V max input)
- 16M bytes(128M bit) Flash
- External antenna connector
- Built-in ceramic antenna
- New CP2104 USB-TO-UART IC
Spesifikasi:
- Input Voltage: 3.2 V
- Chip: ESP8266

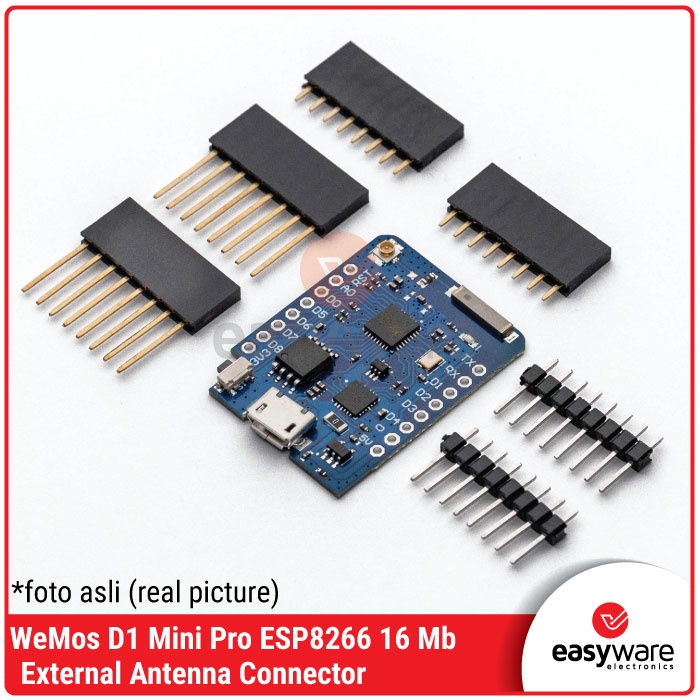

Kelengkapan:
- 1x WeMos D1 mini Pro
- 2x Long female pins
- 2x Short female pins
- 2x Normal pins
Gambar produk
