WEMOS D1 MINI NODEMCU 4MB LUA WIFI IOT INTERNET ESP8266 ESP-12 E

Detail WEMOS D1 MINI NODEMCU 4MB LUA WIFI IOT INTERNET ESP8266 ESP-12 E

P/N : ESP-0006
============

Ini salah satu modul IoT paling populer saat ini gan. Ukurannya yang mini udah bisa menyajikan fungsi ESP8266 secara maksimal. Buat yang demen IoT, modul ini sangat bisa jadi pilihan agan. Berikut fitur dan spesifikasinya :

Fitur :
- 11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported(except D0)
- 1 analog input(3.2V max input)
- a Micro USB connection
- Compatible with Arduino
- Compatible with nodemcu
- lots of shields

Spesifikasi :
- Microcontroller : ESP-8266 ESP-12F
- Operating Voltage : 3.3V
- Digital I/O Pins : 11
- Analog Input Pins : 1(Max input: 3.2V)
- Clock Speed : 80MHz/160MHz
- Flash : 4M bytes
- Length : 34.2mm
- Width : 25.6mm
- Weight : 10g

Pinout
PIN__________FUNCTION__________ESP-8266 PIN
=======================================
TX____________TXD________________TXD
RX____________RXD________________RXD
A0___Analog input, max 3.3V input_____ A0
D0_____________IO________________GPIO16
D1____________IO, SCL ____________GPIO5
D2____________IO, SDA____________GPIO4
D3____________IO, 10k Pull-up_______GPIO0
D4___O, 10k Pull-up, BUILTIN_LED____GPIO2
D5____________IO, SCK____________GPIO14
D6____________IO, MISO ___________GPIO12
D7____________IO, MOSI___________GPIO13
D8________IO, 10k Pull-down, SS_____GPIO15
G_____________Ground______________GND
5V______________5V__________________-
3V3____________3.3V________________3.3V
RST____________Reset_______________RST

Mari di ORDER !!!!!!

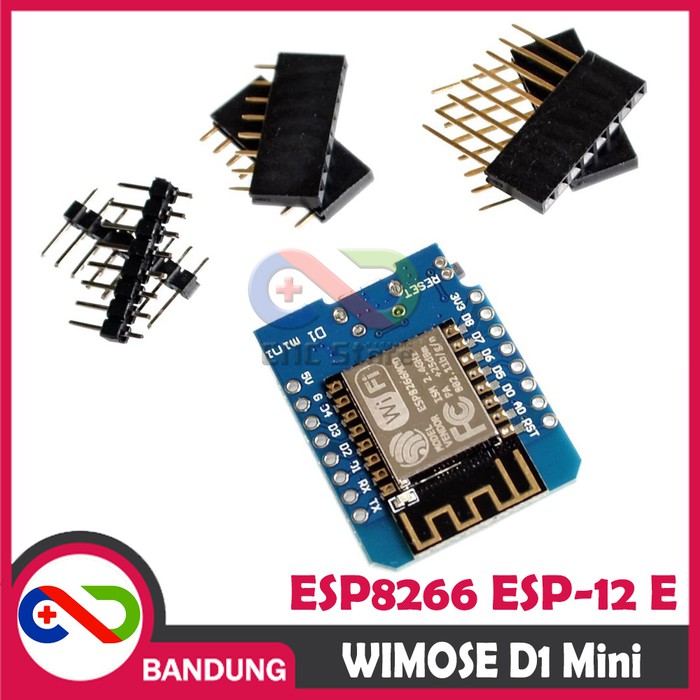

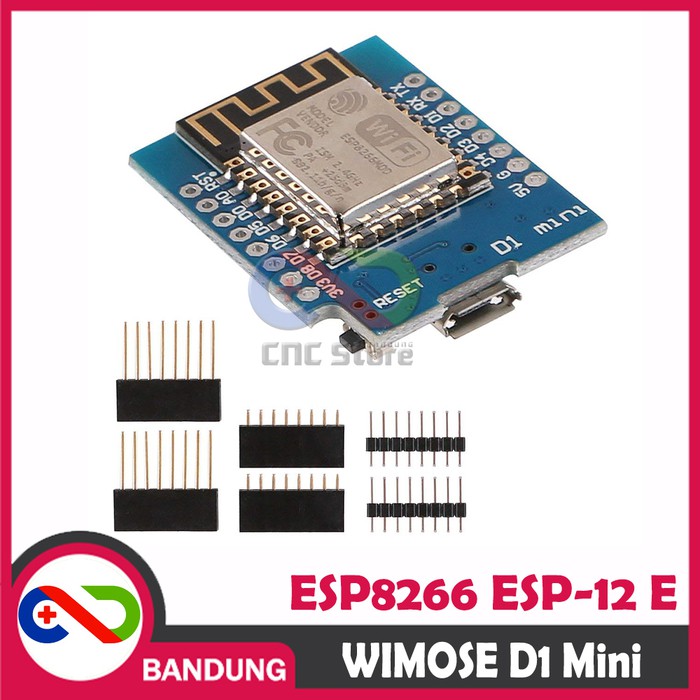

Paket :
1. 1x WeMos D1 mini ESP8266 ESP-12
2. 2x Long female pins
3. 2x Short female pins
4. 2x Normal pins

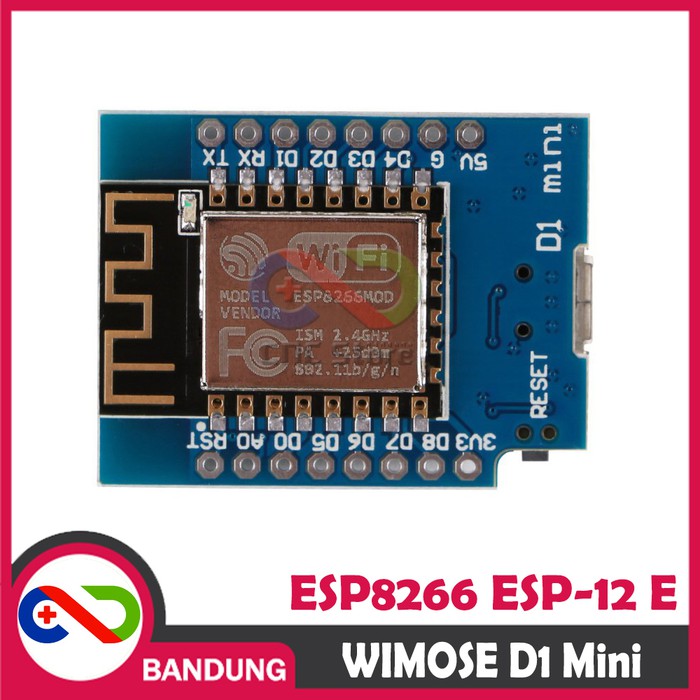

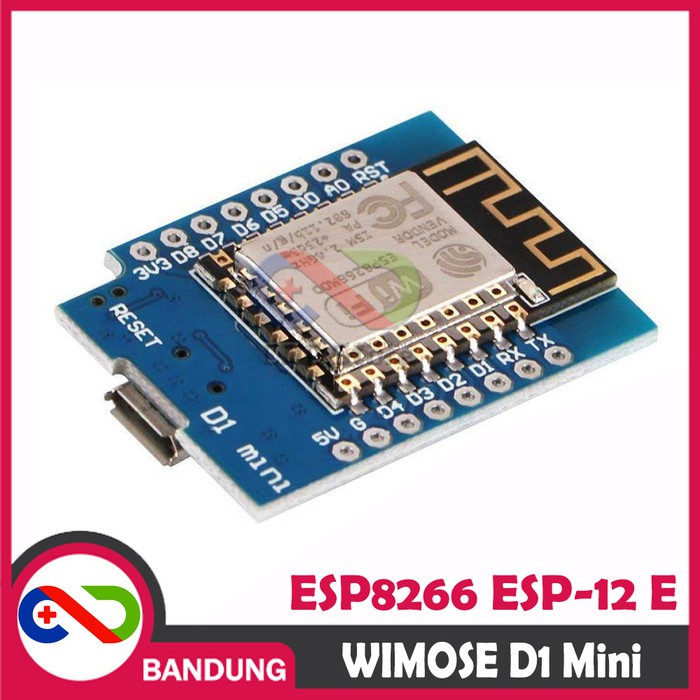

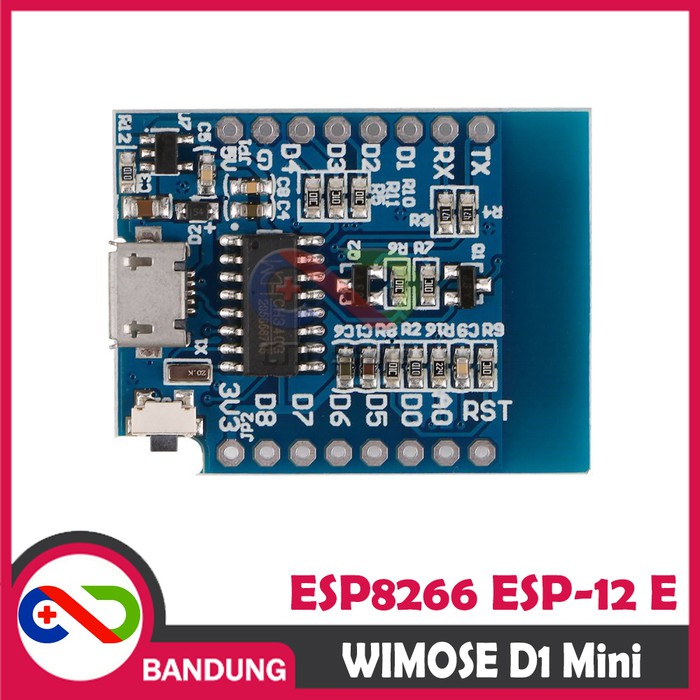

Gambar produk
