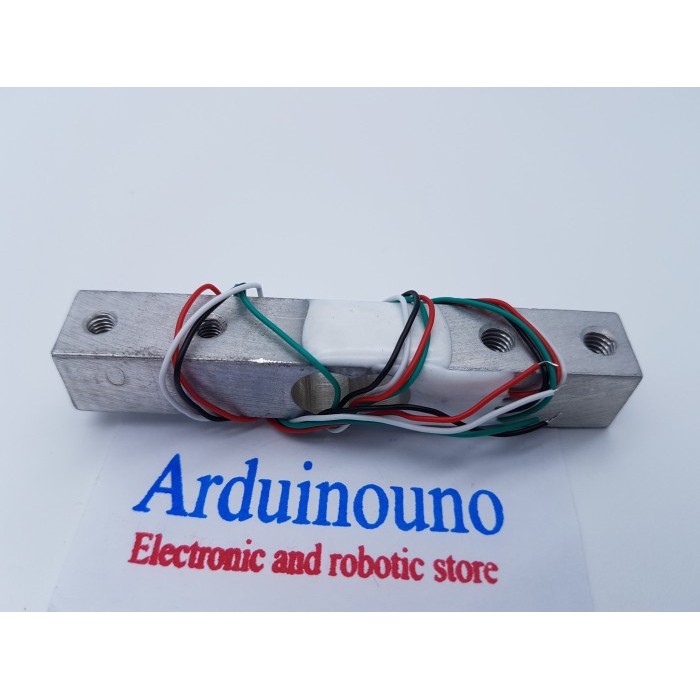

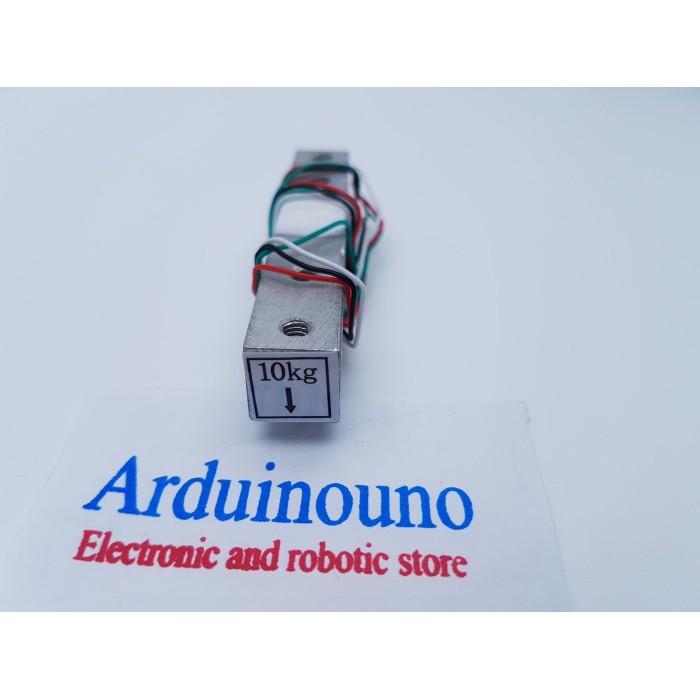

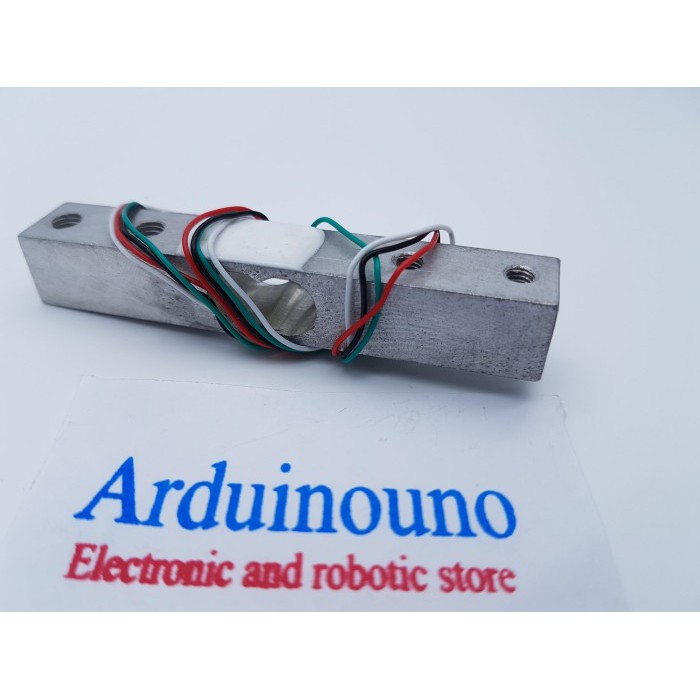

Detail Weight Sensor, Load Cell, Strain Gauge 10KG

Deskripsi Produk

Specification:
Rated Load: 10Kg
Rated Output: 1.0mV/V0.15mV/V
Zero Output: 0.1mV/V
Creep: 0.03%F.S./30min
Input End: Red+(power), Black-(power)
Output End: Green+(signal), White-(signal)
Recommended operating voltage: 3 ~ 12 VDC
Maximum operating voltage: 15 VDC
Input Impedance: 111510%
Output Impedance: 100010%
