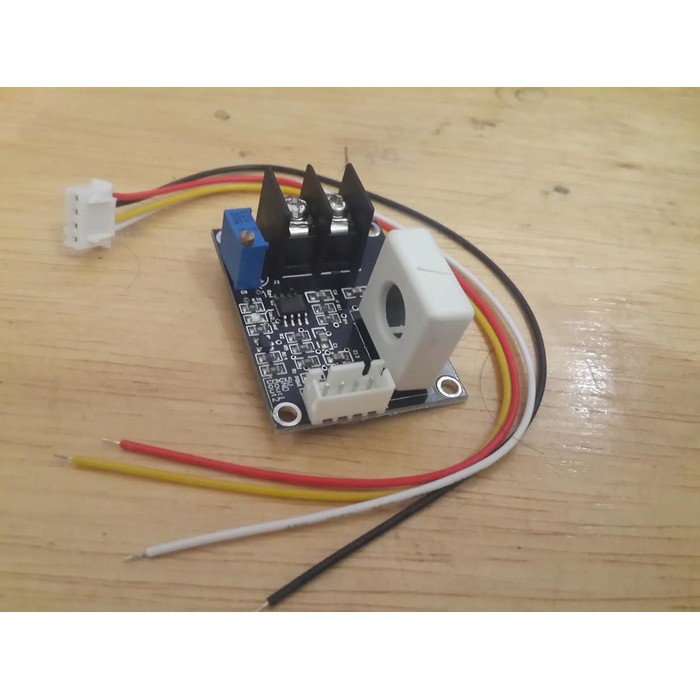

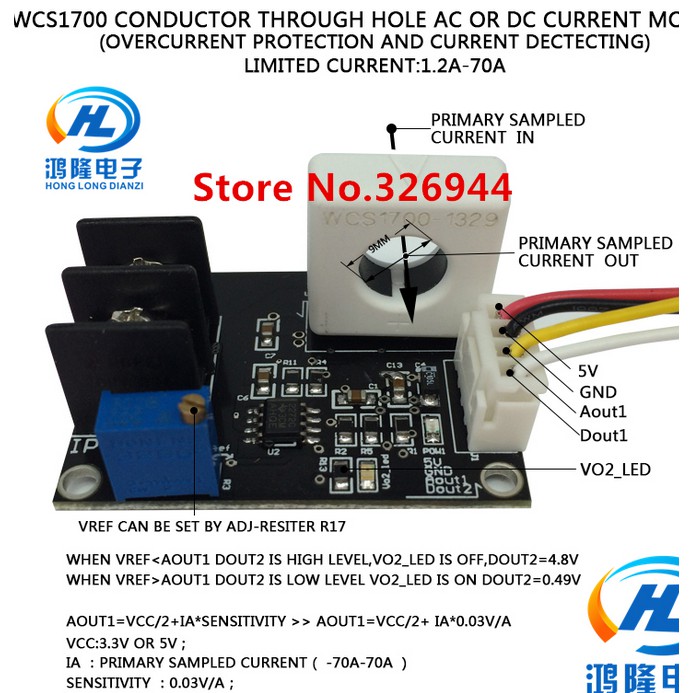

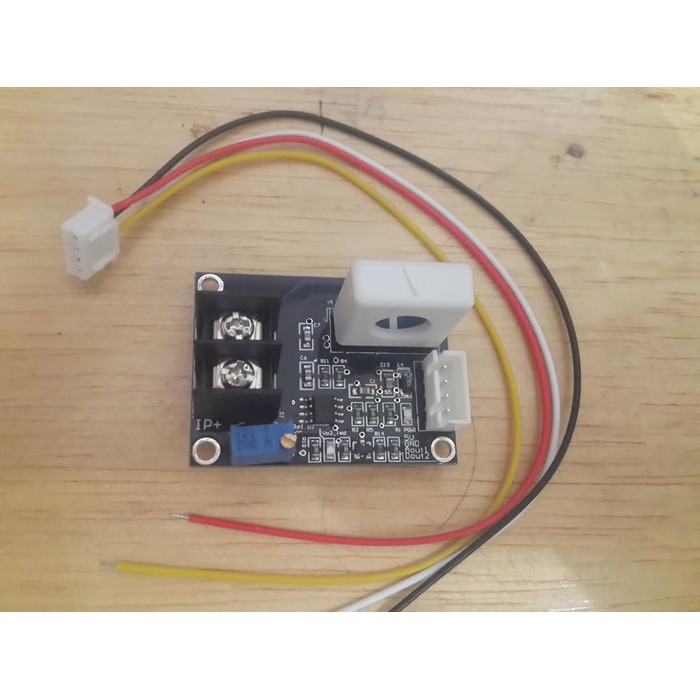

Detail WCS1700 Current Sensor 70A-70A with cable konektor

Product Features:

First,dimensions: length37mmXhigh16.5mmwide31mmX
Second, the mainchip: LM393op amp, WCS1700
Third, the workingvoltage:DC 5VDC
Fourcharacteristics:
1,having a signaloutput instruction;
2, the current detectionrangeDC 70A AC: 50A;
3, the current detectionresolution of32mV / A;
3,output overcurrentsignal indication;
4, overcurrentsignal is setcritical pointadjustable,set the resolution3A;
5,with mountingholesfor easyfirmwareinstallation;
6, the samplingcurrent conversionanalog signal output,which can be accessedADC, TTLlevel signaloutput,which can be accessedmicrocontroller IO portcontrol.

Applications:Smart carmotorovercurrent detection, stall protectioncurrent detection, short circuit protectiontesting,demonstrationteaching experimentsand other occasionsto facilitate the secondarydevelopment;
Maximum detectioncurrent option: 2A / 5A / 7.5A / 20A / 30A / 35A / 60A / 75A / 100A / 150A / 200A
