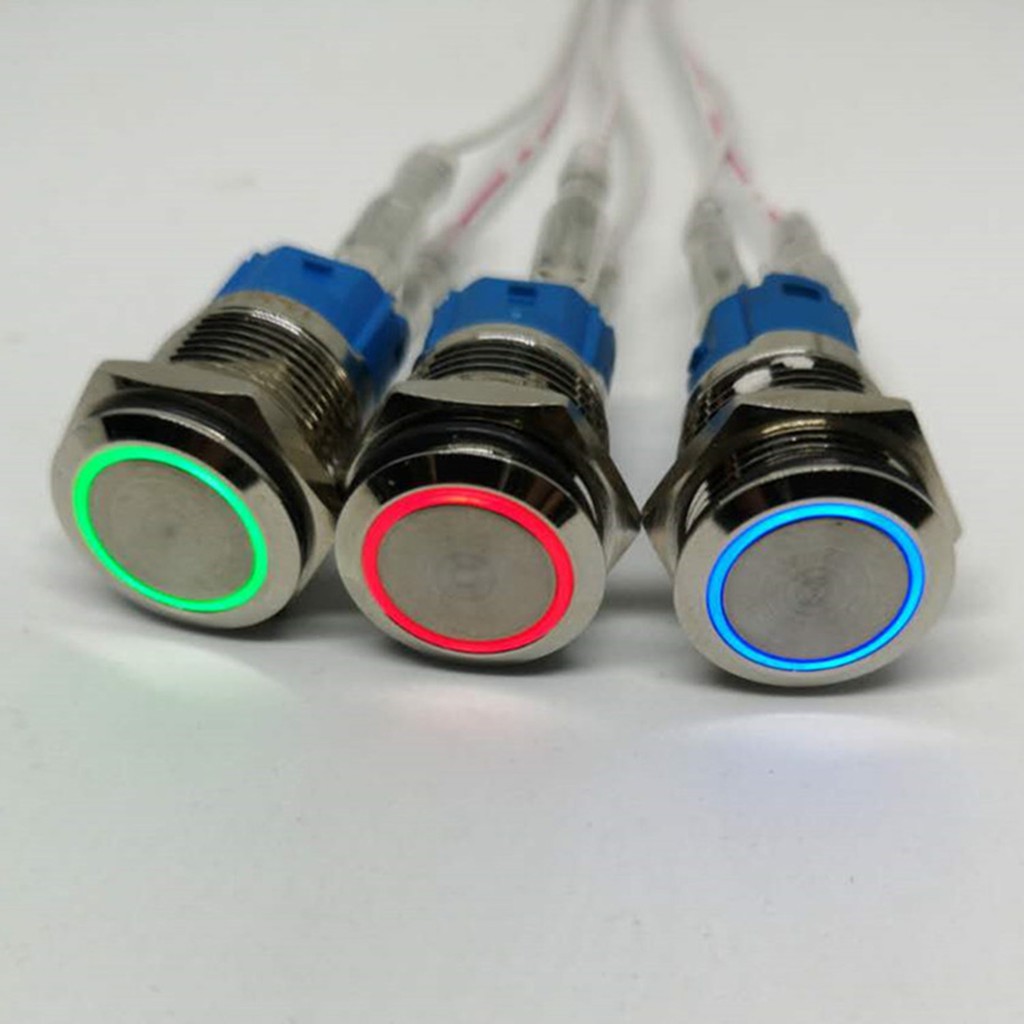

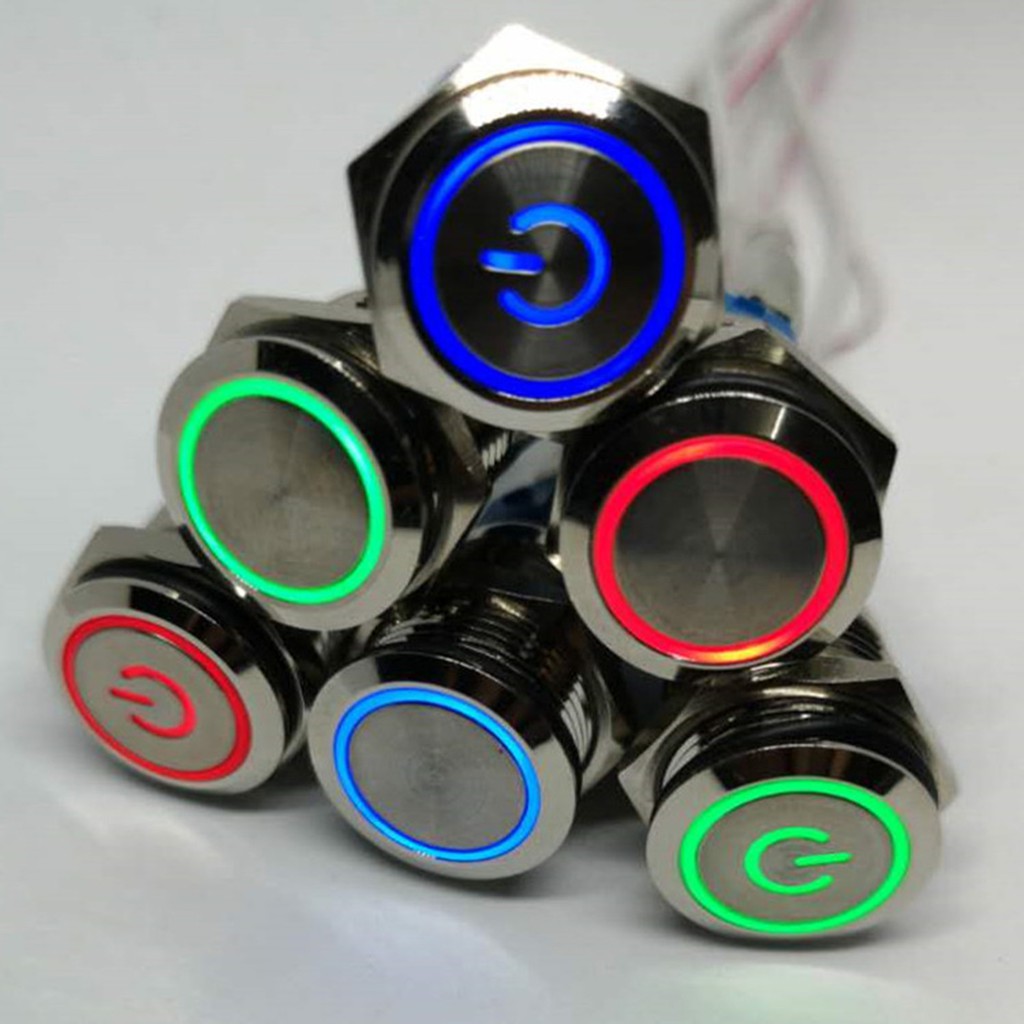

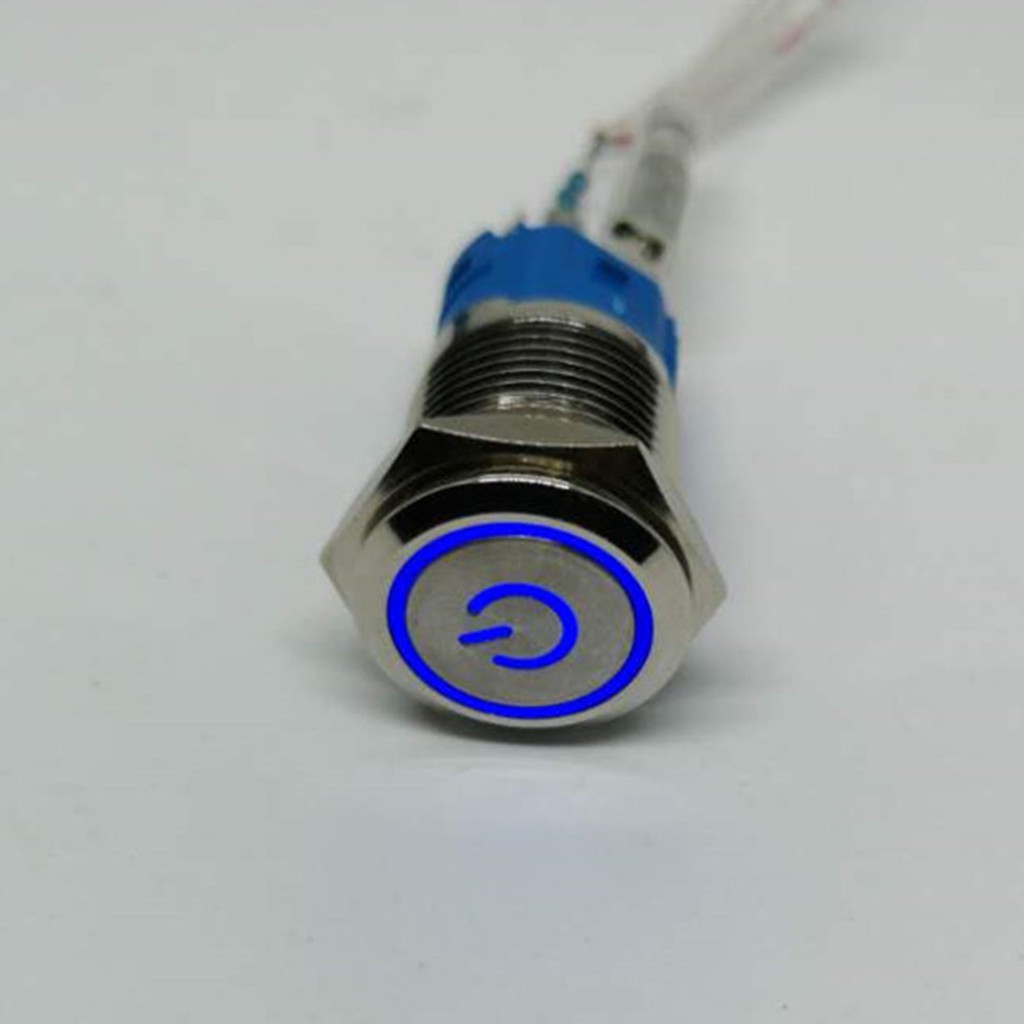

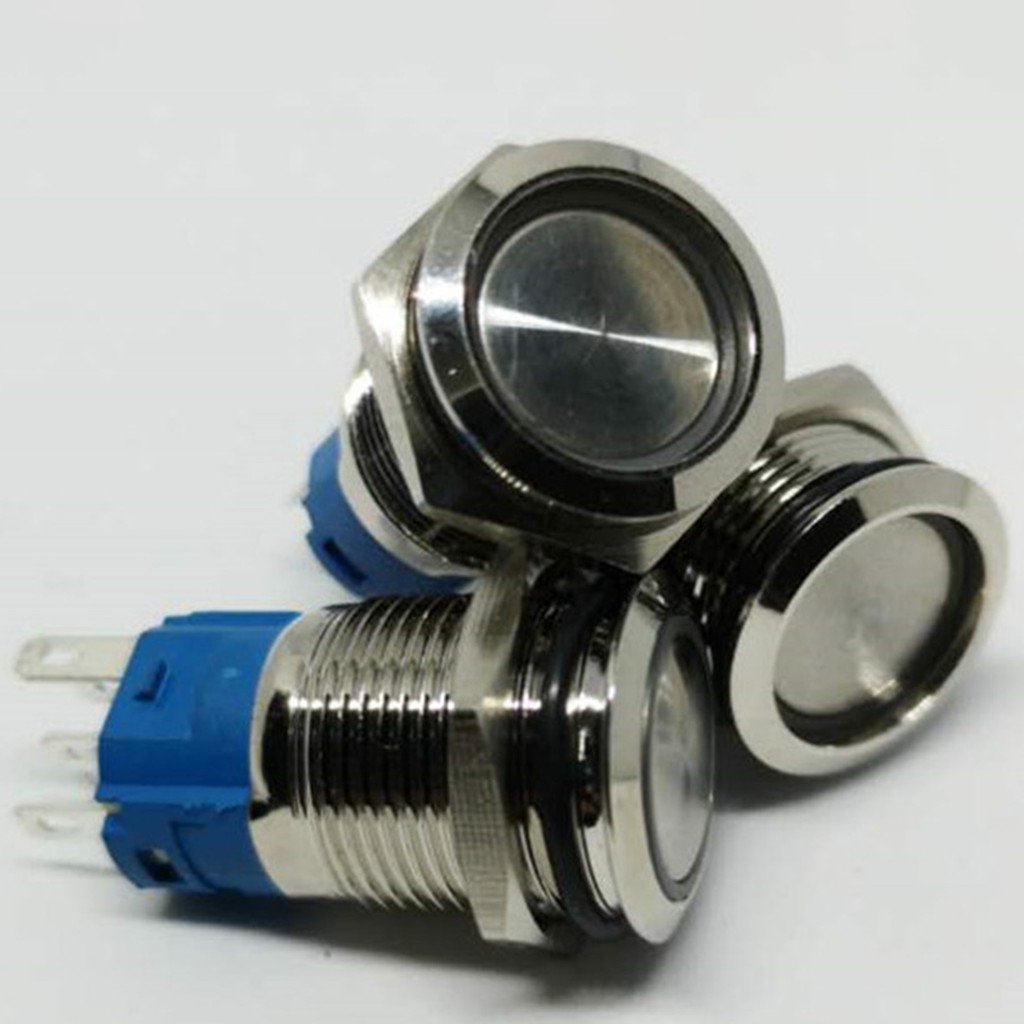

Waterproof 16mm Metal Self-Locking Switch Button with Bright LED Light Lamp

Detail Waterproof 16mm Metal Self-Locking Switch Button with Bright LED Light Lamp

Specifications:
Equipped with high-quality LED light, the light source is soft, bright, long lasting and not dazzling.
With waterproof sealing ring, and the waterproof grade reaches IP66, the waterproof performance is excellent.
The equipped PC flame retardant base is very safe and reliable to use.
It can be used in battery cars, automobiles, machinery and other equipment.
This is a self-locking switch, when you press the button, the switch is on, when you press the button again, the switch is off, which is very convenient and practical.

Item Name: Self-Locking Switch
Material: Metal, Silicone
Style: A Type: Ring, B Type: Power Supply
Switch Voltage: 1.5V-250V AC/DC
Waterproof Rating: IP66
LED Voltage: 3VDC-220VAC
Protection Level: IK10
Lamp Life: 40000 Hours
Work Form: Self-Locking
Working Environment: -30 Degree Celsius to 80 Degree Celsius
Mechanical Life: Self-Locking/250 Thousand Times
Nut Torque: 5-14N.m
Contact Resistance Value: Less than and Equal to 50mΩ
Button Pressure: about 2.5-3N
Insulation Resistance: More than and Equal to 1000mΩ
Compressive Strength: 1900VACmin
Connection Method: Soldering Feet
Product Certification: CD ROHS
Features: Waterproof, High Brightness, Long Service Life, Durable, Self-Locking
Size: 3.5cm x 1.9cm x 1.9cm/1.38" x 0.75" x 0.75" (Approx.)

Notes:
Due to the light and screen setting difference, the items color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.

Package Includes:
1 x Self-Locking Switch
1 x Rubber Ring
