Water Flow Sensor Meter Stainless 3/4" / Flow Sensor 3/4" 1-30L/m

Detail Water Flow Sensor Meter Stainless 3/4" / Flow Sensor 3/4" 1-30L/m

1. Flow Sensor Product description:
(1)Product name :Aluminum Chromium plating Hall effect pulse output flow sensor
(2)material : Aluminum Chromium plating Flow Sensor
(3)size : L 50 mm
(4) Thread Connection: G3/4 " BSP
(5):Mounting Position: Horizontal & Vertical or any diection
(6)Color: silver
(7)Item No.: YF-B5
(8) Application: Water heater, broiler and heat pump ...etc.

2.Flow Sensor Technical Data

(1) Flow Rate: 1~30 L/min
(2)Flow Pulse: F= 6.6 *Q 5% , Q=L/min
(3) Working Voltage: DC 5V ~ 24V
(4) Max. Working Current : 15mA (DC5 V)
(5) Suffering Pressure: Max 1.75Mpa
(6) Working Temperature: -25 C ~+80 C,
(7)Min Insulation Resistance:100M Ohm
(8)Output Pulse Duty Cycle: 50% +/- 10%
(9)Load Capacity: =10 mA (DC 5 V)

(10) wire connection :
Terminal 1 ( Red) : Vdd " + "
Terminal 2 (Black) Vout " - "
Terminal 3 ( Yellow ) Gnd : output
(11) Connector : Housing XH2.5-3P

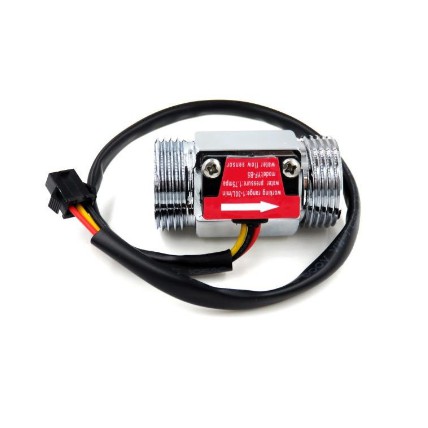

Gambar produk
