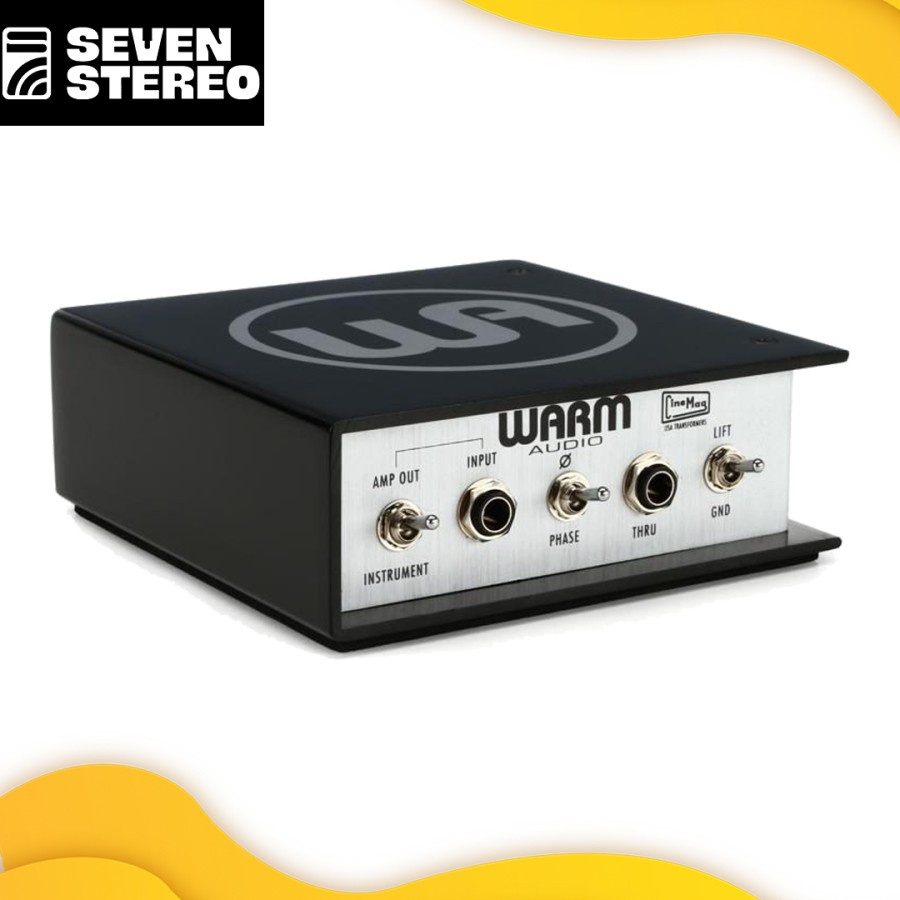

Warm Audio Passive Direct Box WA-DI-P

Detail Warm Audio Passive Direct Box WA-DI-P

A DI Box Like No Other - Available In Both Active And Passive Circuit Options
Whether you play guitar, bass, keyboards or another stringed instrument, you'll need a direct box that won't diminish your instrument's tone, like the Direct Box Active and Direct Box Passive from Warm Audio. Built around world-famous CineMag USA Transformer topology and engineering, like no other DI Boxes in the world. Constructed with top-tier discrete components housed in rugged aluminum chassis' that include switches, knobs and connectors that are all designed to withstand heavy abuse on the road or in the studio.

CUSTOM-WOUND CINEMAG USA OUTPUT TRANSFORMER
CONVERTS INSTRUMENTS TO MIC-LEVEL SIGNALS WITHOUT SIGNAL DEGRADATION
IDEAL SOLUTION FOR PLUGGING YOUR INSTRUMENT DIRECT INTO ANY MIC PRE
TOP-QUALITY CLASS A COMPONENTS WITH GOLD-PLATED TRACES ON CIRCUIT BOARD
RUGGED ALUMINUM CONSTRUCTION
PAD: VARIABLE FROM -3DB TO -30DB
BALANCED OUTPUTS: 600 OHMS, MIC LEVEL
INPUT IMPEDANCE: 1 MEG OHMS
THD: .01% FROM 20HZ TO 100HZ. LESS THAN .004% FROM 100HZ TO 20KHZ
FREQUENCY RESPONSE: 20HZ TO 70KHZ +/- 0.5DB
