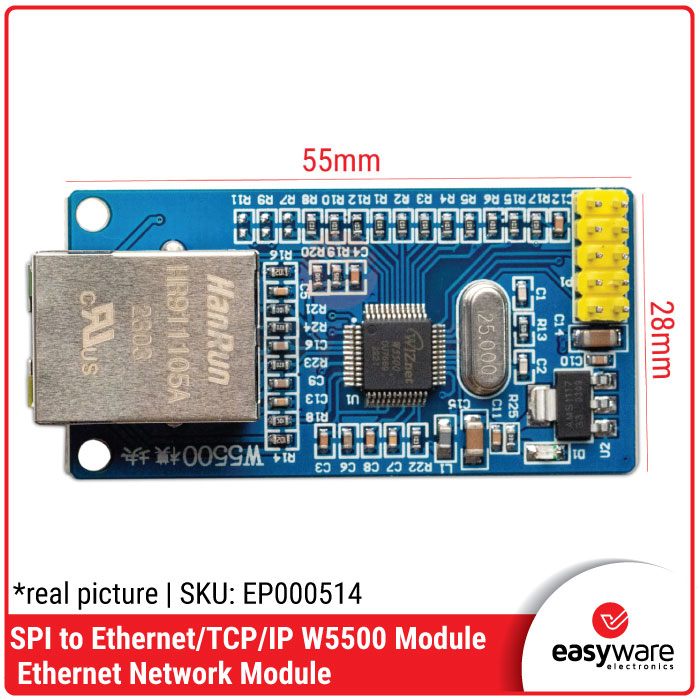

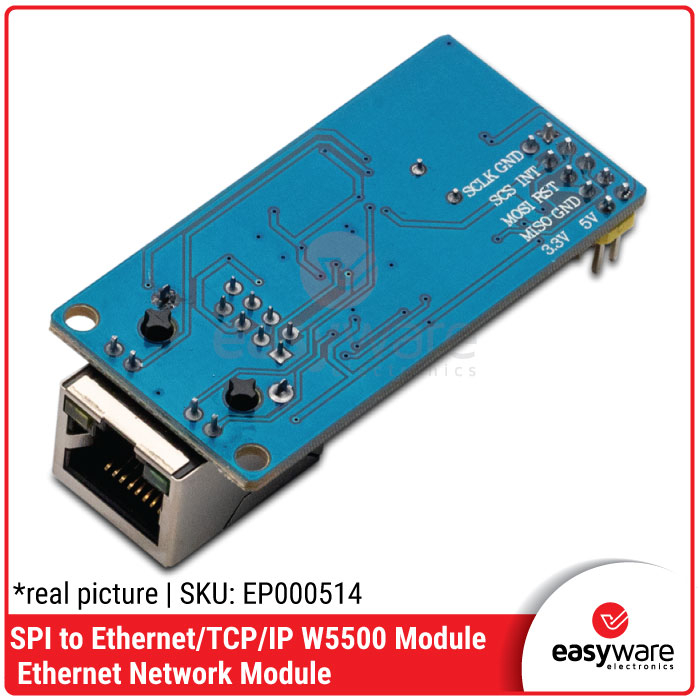

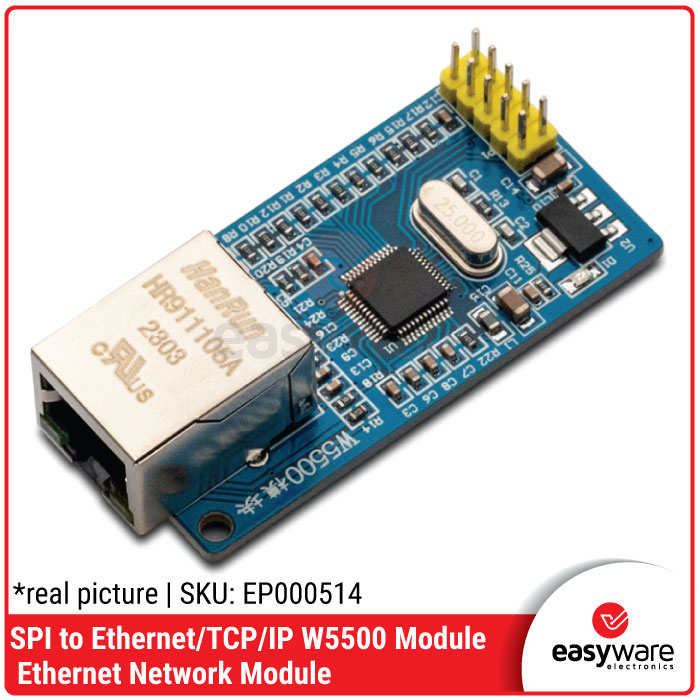

W5500 Ethernet Network module SPI to Ethernet Hardware TCP/IP

Detail W5500 Ethernet Network module SPI to Ethernet Hardware TCP/IP

Hi #RekanEasyWare ...
EasyWare Part#: EP000514

The W5500 chip is a Hardwired TCP/IP embedded Ethernet controller that provides easier Internet connection to embedded systems. W5500 enables users to have the Internet connectivity in their applications just by using the single chip in which TCP/IP stack, 10/100 Ethernet MAC and PHY embedded.

The SPI to Ethernet Hardware TCP/IP W5500 Ethernet Network Module based on Ethernet WIZNET new type of chip W5500, module integrates the whole hardware TCP/IP protocol stack, no need code implements the TCP/IP protocol stack. The module Supports transmission rate of 10/100MBPS. Also, support sleep mode and wake on LAN, Within the integrated 32K TX/RX cache.

Features :
- 10BaseT/100BaseTX Ethernet PHY embedded.
- Supports automatic response (full duplex/half duplex mode).
- Supports 8 independent sockets simultaneously.
- Internal 32Kbytes Memory for Tx/Rx Buffers.
- Power off mode: support.
- Network wake: support.
- SPI interface (SPI MODE 0, 3), convenient connection with MCU.

Spesifications :
- Chip type: W5500
- Input Voltage (V): 3.3 ~ 5
- Supports Hardwired TCP/IP Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
- Internal Memory (KByte): 32

Package :
- 1x SPI to Ethernet Hardware TCP/IP W5500 Ethernet Network Module

Gambar produk
