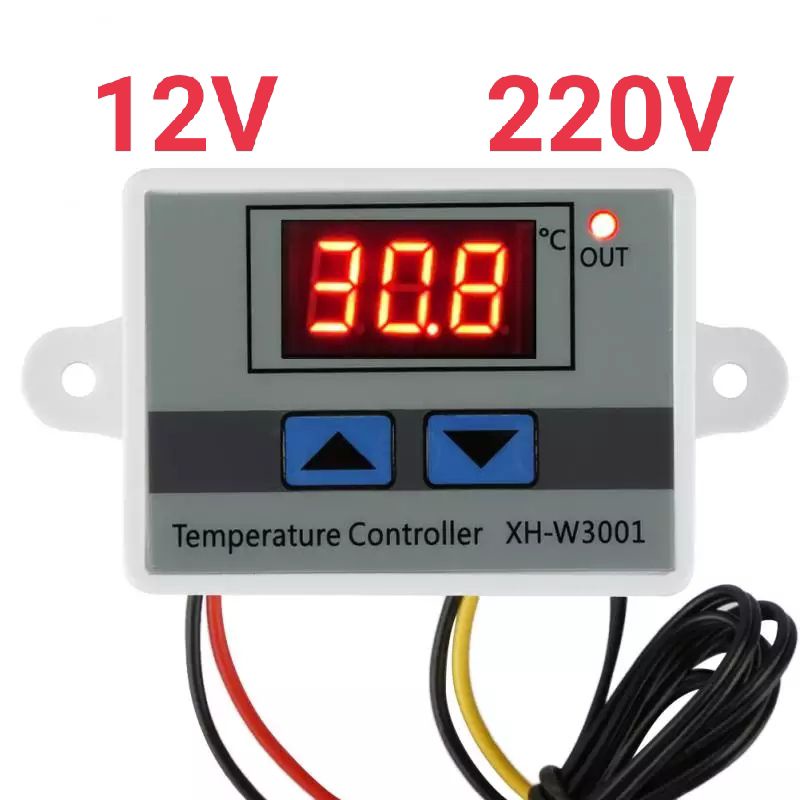

W3001 12V 220V Digital Temperature Controller 10A termostat Thermostat pengatur suhu 12 volt 220 volt

Detail W3001 12V 220V Digital Temperature Controller 10A termostat Thermostat pengatur suhu 12 volt 220 volt

Spesifikasi w3001 12v
Supply voltage: 12V
Load power: 120W
Temperature range: -50~110
Range of temperature control: -50~110
Temperature control accuracy: 0.1
Temperature measurement accuracy: 0.2
Measuring input: NTC10K waterproof probe L=1 M
Output type: direct output
Output capacity: maximum 10A
Mounting hole distance: 73mm (hole distance 4mm)
Shell material: ABS
Temperature controller size: 59x44x31mm/2.32x1.73x1.22inch
Probe size: 25x5mm/0.98x0.2inch

spesifikasi w3001 220v
1.Temperature measurement, display; refrigeration, heating control
2.Temperature setting upper and lower limits
3.Simple operation, suitable for seafood machines.
4.Easy to install
1.Measurement range: 50 Celsius ~ 110 Celsius
2.Control range: 50 Celsius ~ 110 Celsius
3.Measuring accuracy: plus or minus 0.2 Celsius
4.Control precision: plus or minus 0.1 Celsius
5.Measuring input: NTC10K L= 1 m waterproof probe
6.Power: 1500W
7.Input voltagr:220V
8.Current:Max 10A
9.Size: 60 * 45 * 30 mm
How to use:
1. Press the up button show the starting temperature
long press UP button the temperature display Flashing , press the UP or Down button Set the start temperature value
2. Press the Down button show the Stop temperature
long press Down button the temperature display Flashing , press the UP or Down button Set the stop temperature value
Package includes:
1 * 220V LED Temperature Controller
1 * Thermostat Control Switch Probe

Gambar produk
