W1209 LED DIGITAL THERMOSTAT MODULE

Detail W1209 LED DIGITAL THERMOSTAT MODULE

W1209 LED DIGITAL THERMOSTAT MODULE

Specifications:
++ Temperature range :-30-110 °
++ Dimensions: 48.5 x 40mm
++ Temperature control mode: ON / OFF
++ Resolution: When temperature is 0.1°, the resolution is -9.9~99.9, other temperature segment is 1°
++ Control accuracy: 0.1 °
++ Hysteresis accuracy: 0.1°
++ Refresh rate: 0.5Sec
++ High temperature protection: 0-110°
++ Supply voltage: DC 12V
++ Static current: ≤ 35MA, attract current ≤ 65MA
++ Output voltage: DC 12V
++ Output power: 20A relay
++ Measurement input: NTC (10K 0.5%) Waterproof Sensor
++ Environmental requirements: -10 ~ 60 ° ,Humidity 20% -85%

How to use:
Connect the power supply and the load, you can supply to the controller, Is displayed as a measured temperature,
Press the SET button, the display flashes the temperature, Press - to set the desired temperature,
After setting press SET to confirm return, The controller automatically performs the relay by setting off!
Lights, LED status descriptions:
Indicator: Off The relay is switched off, Always indicate the relay is closed.
LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection.

Isi Paket:

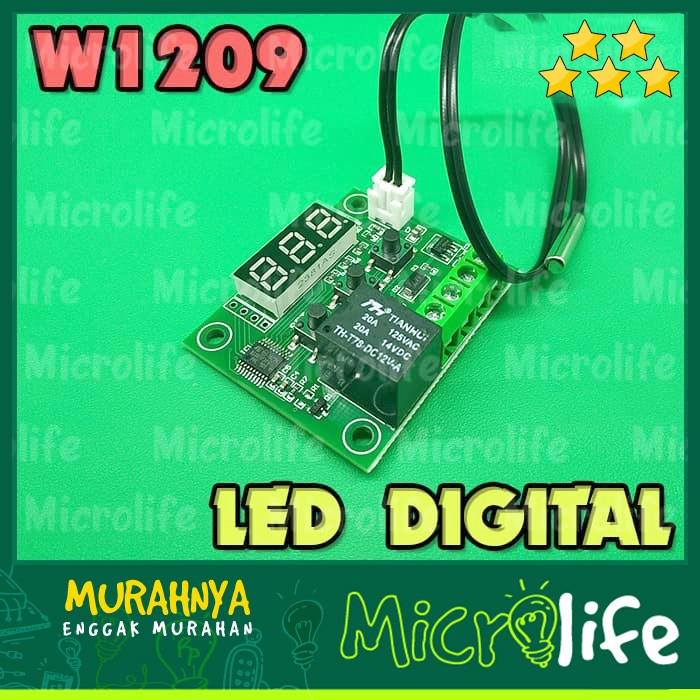

1x W1209 LED DIGITAL THERMOSTAT MODULE Board
1x Kabel Termostat
