VURRION DURAVEL H510M-Z4 / Motherboard H510M - Z4 / Mainboard H510M

Detail VURRION DURAVEL H510M-Z4 / Motherboard H510M - Z4 / Mainboard H510M

GARANSI RESMI BY PT ASIA GLOBAL SUKSESINDO

GARANSI RESMI 2 TAHUN

VURRION MOBO DURAVEL H510M-Z4

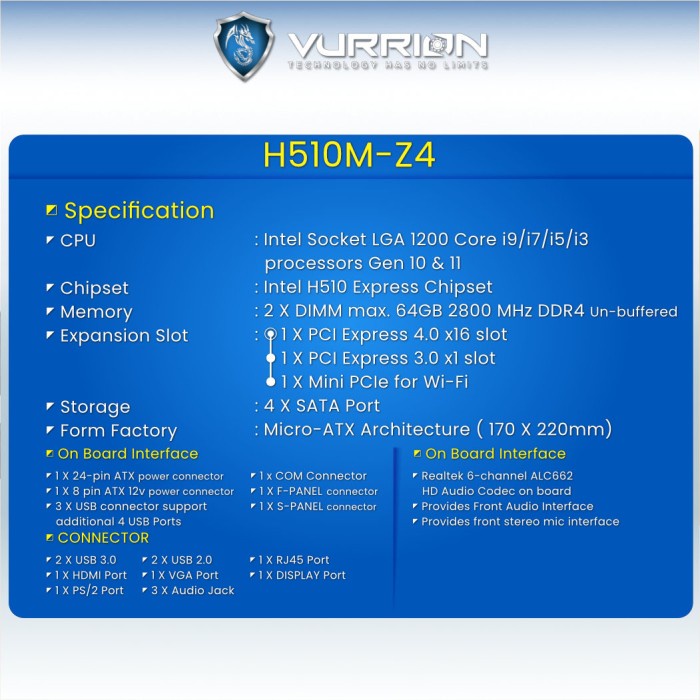

◩ Specification
◤ CPU : Intel Socket LGA 1200 Core i9/i7/i5/i3
processors Gen 10 & 11

◤ Chipset : Intel H510 Express Chipset
◤ Memory : 2 X DIMM max. 64GB 2800 MHz DDR4 Un-buffered
◤ Expansion Slot : ◉ 1 X PCI Express 4.0 x16 slot
● 1 X PCI Express 3.0 x1 slot
● 1 X Mini PCIe for Wi-Fi
◤ Storage : 4 X SATA Port
◤ Form Factory : Micro-ATX Architecture ( 170 X 220mm)

◩ On Board Interface
◤ 1 X 24-pin ATX power connector ◤ 1 x COM Connector
◤ 1 X 8 pin ATX 12v power connector ◤ 1 X F-PANEL connector
◤ 3 X USB connector support ◤ 1 X S-PANEL connector
additional 4 USB Ports

◩ CONNECTOR
◤ 2 X USB 3.0 ◤ 2 X USB 2.0 ◤ 1 X RJ45 Port
◤ 1 X HDMI Port ◤ 1 X VGA Port ◤ 1 X DISPLAY Port
◤ 1 X PS/2 Port ◤ 3 X Audio Jack

◩ On Board Interface
◤ Realtek 6-channel ALC662
HD Audio Codec on board
◤ Provides Front Audio Interface
◤ Provides front stereo mic interface

*VURRION TECHNOLOGY HAS NO LIMIT*
