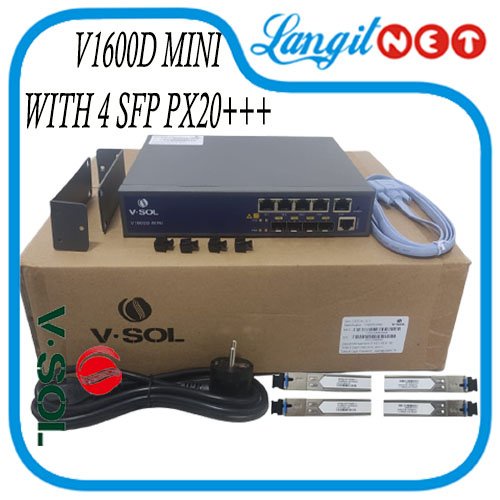

VSOL V1600D MINI EPON OLT

Detail VSOL V1600D MINI EPON OLT

Item V1600D-MINI
Chassis Rack 1U Height Box
1000M Uplink Port
Port count : 4
Copper : 4*10/100/1000M auto-negotiation
EPON Port
QTY : 4
Physical Interface : SFP Slots
Connector Type : PX20++/PX20+++
Max splitting ratio : 1:64
Backplane Bandwidth (Gbps) : 116
Port Forwarding Rate(Mpps) : 11.904
Dimension (LxWxH) : 224mm*200mm*43.6mm
Weight : 2kg
Power Supply : AC:90~264V, 47/63Hz
Power Consumption : 15W
Operating Environment
Working Temperature : 0~+50C
Storage Temperature : -40~+85C
Relative Humidity : 5~90% (non-conditioning)

Technical Specifications
Management Ports
1*10/100BASE-T out-band port,
1*CONSOLE port
PON Port Specification Transmission Distance: 20KM
EPON port speed Symmetrical 1.25Gbps
Wavelength: TX-1490nm, RX-1310nm
Connector: SC/UPC
Fiber Type: 9/125m SMF
TX Power: +4.5dBm~+9dBm
Rx Sensitivity: -32dBm
Saturation Optical Power: -8dBm
Management Mode SNMP, Telnet and CLI
Management Function Fan Group Control
Port Status monitoring and configuration
Layer-2 configuration such as Vlan, Trunk ,RSTP, IGMP, QOS, etc
EPON management: DBA,ONU authorization,etc
Online ONU Configuration & Management
User management, Alarm management
Layer 2 Feature Up to 16 K MAC address
Support port VLAN and VLAN tag
VLAN transparent transmission
Port stability statistic and monitoring
EPON Function Support port-based rate limitation and bandwidth control
In compliant with IEEE802.3ah standard
Up to 20KM transmission Distance
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto-discovery/link detection/remote upgrade of software
Support VLAN division and user separation to avoid broadcast storm
