VS481B 4-Port HDMI Switch 4K with REMOTE

Detail VS481B 4-Port HDMI Switch 4K with REMOTE

The VS481B 4-Port HDMI Switch allows you to quickly connect 4 HDMI sources to your HDMI display and easily switch between them via front panel pushbuttons, RS-232 or IR remote control. The front panel'''s LEDs indicate the source device selected for the display at a glance.

The VS481B supports Ultra HD 4Kx2K, the newest resolution for high definition displays; Auto Switching modes for auto port selection;Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.

Features :

Allows up to four HDMI A/V sources to be connected to one HDMI display
Quick and easy switching between HDMI sources via front panel pushbuttons, RS-232 or IR Remote control
Supports 340MHz bandwidth for ultrahigh 4kx2k video
HDMI (3D, Deep Color, 4kx2k); HDCP 2.2 compatible
Auto switching modes for auto port selection
Long distance transmission - up to 15 m (24 AWG)
Consumer Electronics Control (CEC) support
Supports Dolby True HD and DTS HD Master Audio
Built-in bi-directional RS-232 serial remote port for high-end system control
Instant switching between HDMI input sources
Supports IR extension using a IR extension cable (cable not included)
LED indication of video source devices

Specifications :

Video
Max. Data Rate : 9 Gbps (3 Gbps Per Lane)
Max. Pixel Clock : 300 MHz
Max. Distance input : 1.8 m
Max. Distance output : 15 m
Max. Resolution :
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Power Consumption : DC 5V : 1.76W
Housing : Metal
Weight : 480 g
Dimensions : 20 x 8.3 x 2.5 cm

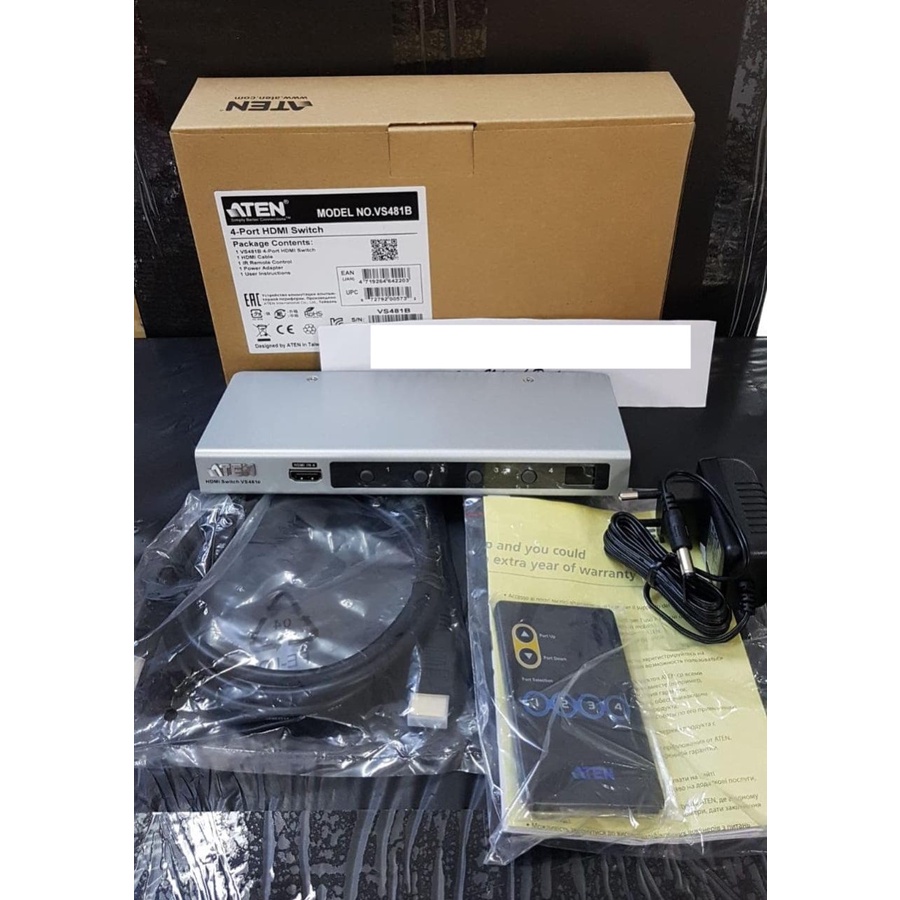

Isi Paket :
1 x VS481B 4-Port HDMI Switch
1 x HDMI Cable (1.8m/6ft)
1 x IR Remote Control
1 x Power Adapter
1 x Manual
