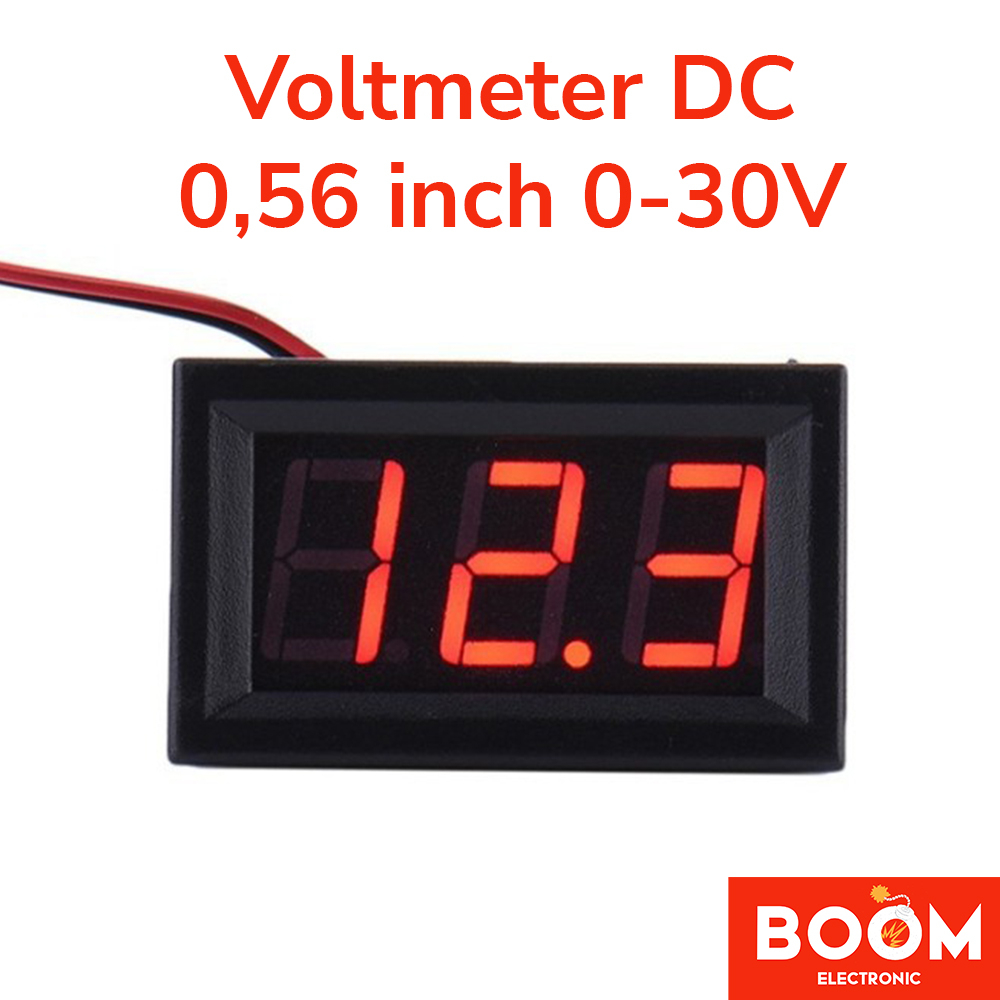

Voltmeter DC 0,56 inch 0-30V

Detail Voltmeter DC 0,56 inch 0-30V

Features:
* 0.56''LED Digital Tube Wire DC 4.50-30.0V Voltmeter can be connected directly for measuring voltage
* You can use this meter to monitor voltage or battery of cars, vehicles, sailboat, RV, truck, race car, automotive, etc.
* With reversed connection protection, this item will not burn even when connected reversely , but its screen will display nothing
* Power supply range: No additional power supply , directly use the measured voltage as a power supply( the voltage range as above)
* The highest input is DC30.0V.
* The input voltage higher than 30V may be permanently damaged!
* With only two wires(the red and the black),simply connect the red to positive and black to the negative
* Its strong plastic case prevents it from easily damaged by outer force
* High-quality LED is adapted in this item, which is bright even in dim light

Specifications:
* Measuring range: DC4.50-30.0V
* Allowable error : ± 1%
greater than or equal to 10V, the error is ± 0.3V
less than 10V, the error is ± 0.10
* Input impedance : > 100K ohms
* Operating current: <23mA
* Refresh speed: about 300mS /times
* Display mode: three 0.56" LED digital tube

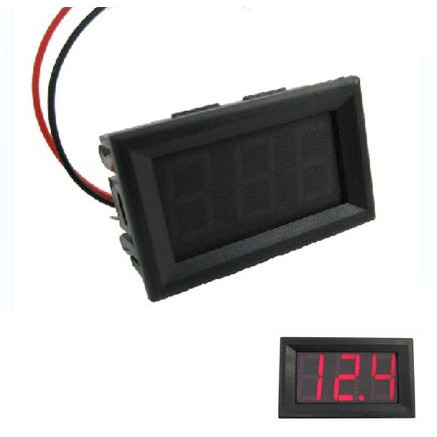

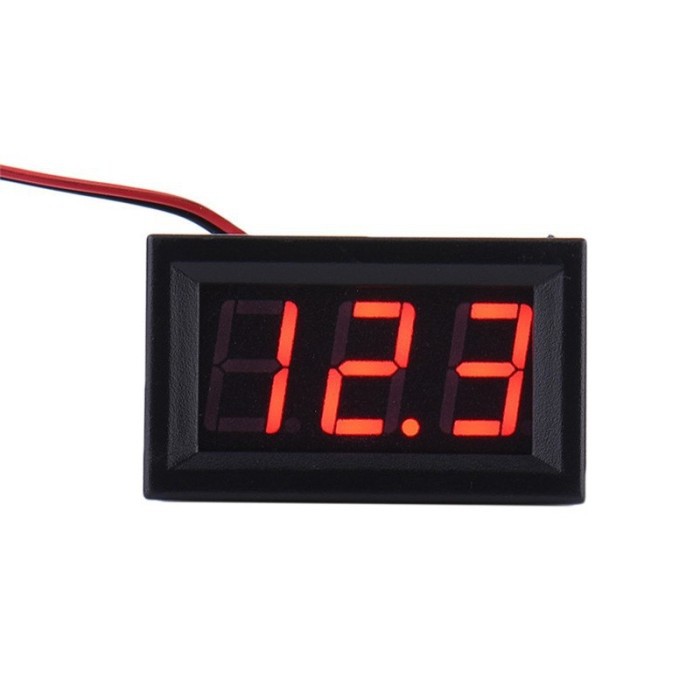

* Display color: Red (as pictures show)
* Lead length: approx 20 cm / 7.87 inch
* Dimensions: approx 48 x 29 x 22 mm / 1.89 x 1.14 x 0.87 inch
* Opening size: approx 46 x 27 mm / 1.81 x 1.07 inch
* Weight: 18g (approx)
* Operating temperature: -20 ℃ ~ 65 ℃

Potentiometer usage:
You should adjust the potentiometer when your input voltage is about 20V. Please use a screwdriver to adjust the potentiometer to meet your requirements.( screwdriver is not included)

Voltmeter Digital 4.5-30V 2 Kabel
Spesifikasi:
Range: 4.5-30V DC
Akurasi: 0.01V utk pengukuran 10V dan 0.1V utk pengukuran 10V
Protection: reverse polarity protection
Warna display: merah
Jumlah digit: 3 LED tinggi 0.56" (1.4cm)
Jumlah kabel: 2 dan 3 kabel, bisa dipilih pada varian
Ukuran: 48x29x22 mm

Voltmeter Digital 4.5-30V 3 Kabel
Spesifikasi :
Range: 0-100V
Size : Length 48x width 29x thickness 16mm
Cut-out size :46x27mm
Maximum input :DC120V (higher than this voltage, there is a risk of burning)
Lead length 20cm, allowable error 1% (+/-1 word)
Net weight 18g
Display mode Three-digit 0.56″LED digital tube
Gross weight 23g (including packaging) Display color red green

Cocok digunakan untuk berbagai keperluan pengukuran tegangan, baik di mobil, motor, power supply, praktikum, ujicoba elektronika dll.

Gambar produk
