Voltmeter Ammeter Wattmeter Engergymeter DC 100V 100A with Shunt

Detail Voltmeter Ammeter Wattmeter Engergymeter DC 100V 100A with Shunt

PC05-100A LCD DC 8-100V Current Power Energy Meter Tester 100A
4 IN1 Digital Voltmeter Ammeter
Harga sudah termasuk shunt

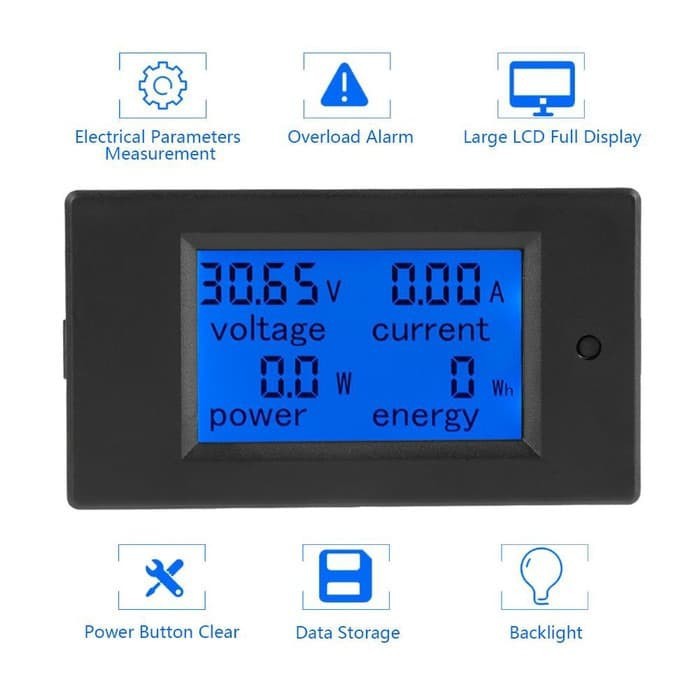

A Function
1. electrical parameter measurement function (voltage, current, power, energy).
2. The voltage alarm function (over voltage alarm thresholds, backlighting and voltage flicker tips).
3. The power button clear function.
4. Power-down data storage function.
5. Large-screen LCD screen full display function (display voltage, current, power, energy).
6 backlight.

B. display and key
I Display Interface
Display voltage, current, power, energy parameters from the large-screen LCD screen simultaneously.

II Display Format
1. Power: measurement range 0 ~ 10kW
1kW display format within 0.0 ~ 999.9W; From 1kW display format 1000 ~ 9999W.
2. Power: measurement range 0 ~ 9999kWh
10kWh within the display format 0 ~ 9999Wh; Above 10kWh display format 10 ~ 9999kWh;
3. Voltage: test range 6.5 ~ 100V - Display Format 6.50 ~ 99.99V
4. Current: Test Range 0 ~ 100A - Display Format 0.00 to 99.99.

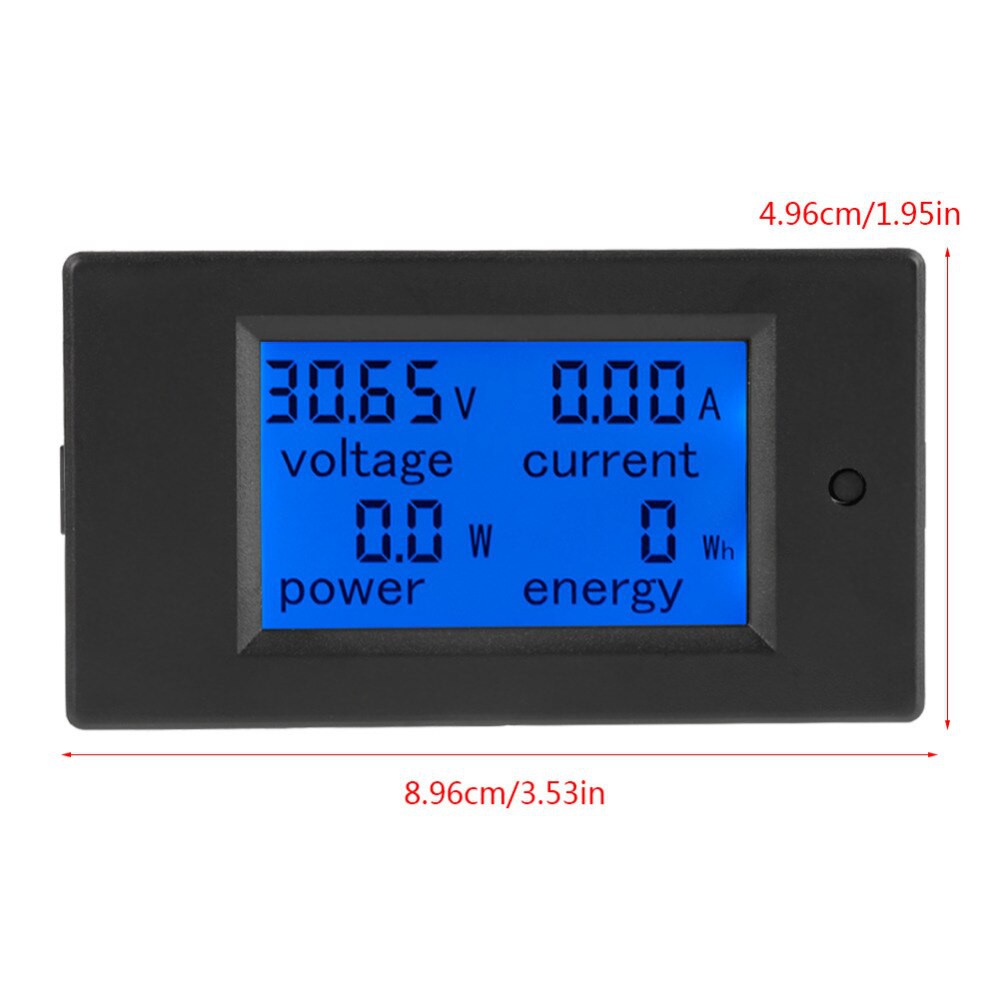

Dimensi produk : 9 x5.5 x2.5 cm

Isi dalam paket
1 x Unit
1 x Shunt
1 x Manual instruction

Gambar produk
