Voltmeter Ammeter Wattmeter kWh Meter Dinrail 5A-80A AC 220V

Detail Voltmeter Ammeter Wattmeter kWh Meter Dinrail 5A-80A AC 220V

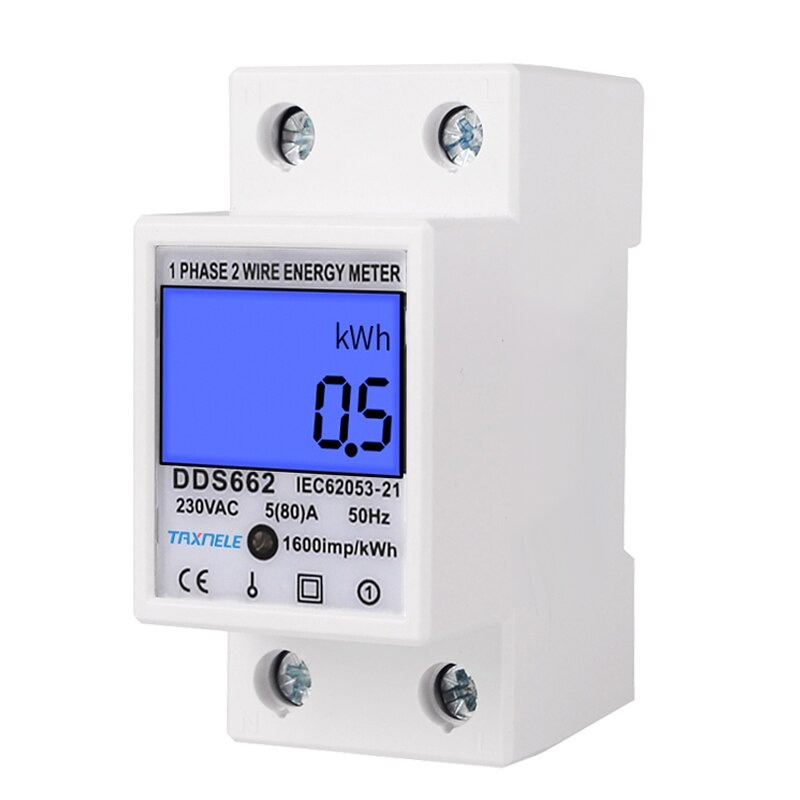

5-80A DDS662 LCD Backlight Digital Display Single Phase Electronic Energy kWh Meter

Features:

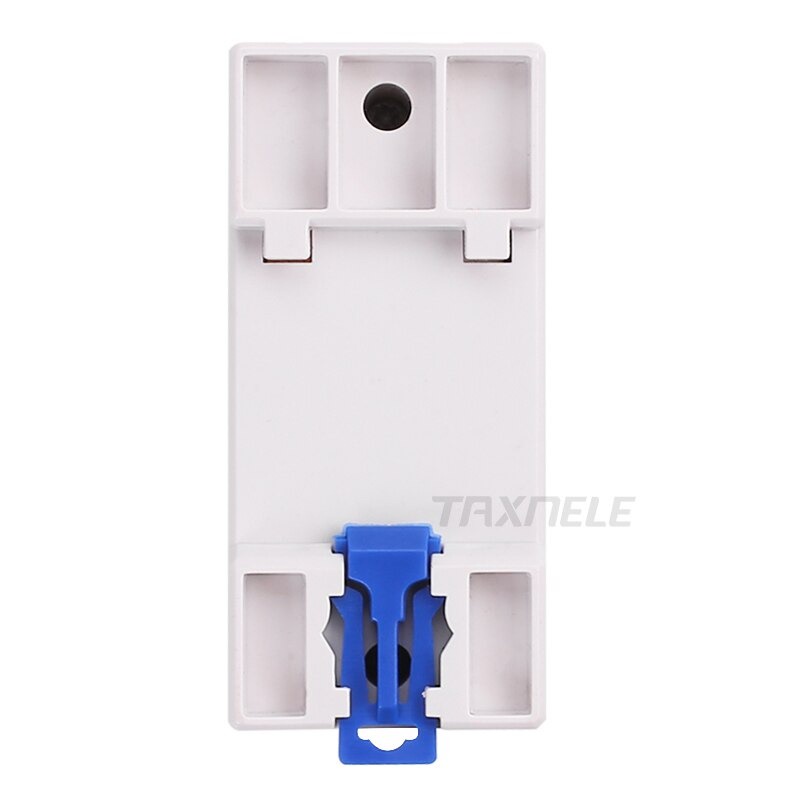

1. 35mm DIN Rail mounting meets the standards of DIN EN50022.
2. 17.5mm pole width meets the standards of DIN43880.
3. LCD backlight digital display, no reset button, to avoid human manipulation with the data.
4. It displays electricity, voltage, current, frequency and power.
5. Red LED energy pulse signal.
6. Embedded end cover, ensuring power supply safety.
7. With the features of good reliability, small size, light weight, beautiful appearance and easy installation.
8. Adopt microelectronics and digital processing technology to measure electric energy, accurate and reliable.
9. Large scale integrated circuits and precision SMT technology, with good electromagnetic interference resistance and stable performance.

Specification:
Material: Plastic
Model: DDS662
Accuracy: First Grade
Reference Voltage: 220V/230V 50/60Hz
Reference Current (. Current): 5(80)A
Insulating Property: 1min 4KV Alternating Voltage, 1.2/50us 6KV Waveform Impulse Voltage
Display: LCD Backlight Digital Display
Installation: 35mm DIN Rail

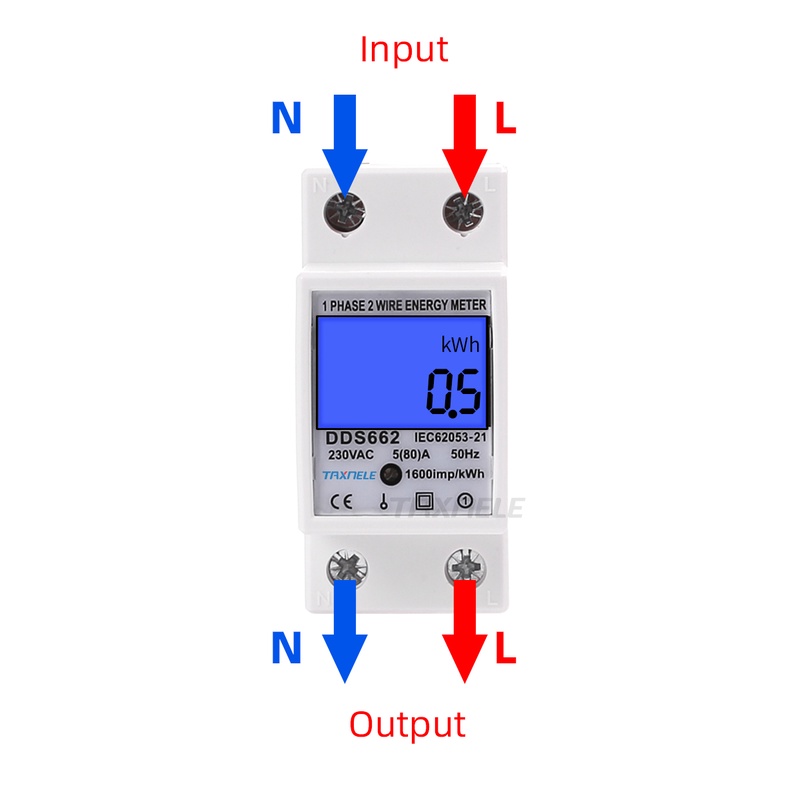

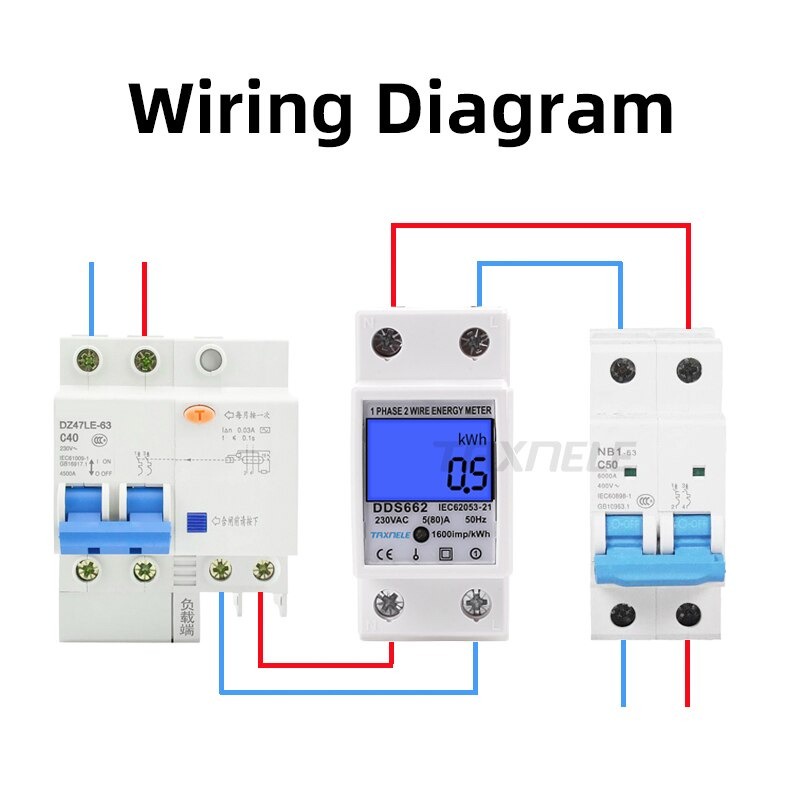

Wiring Method: Up-out and down-in/up-in and down-out
Power: 17000W
Environment Temperature: -20℃~+50℃
Pole Width: 17.5mm/0.7in

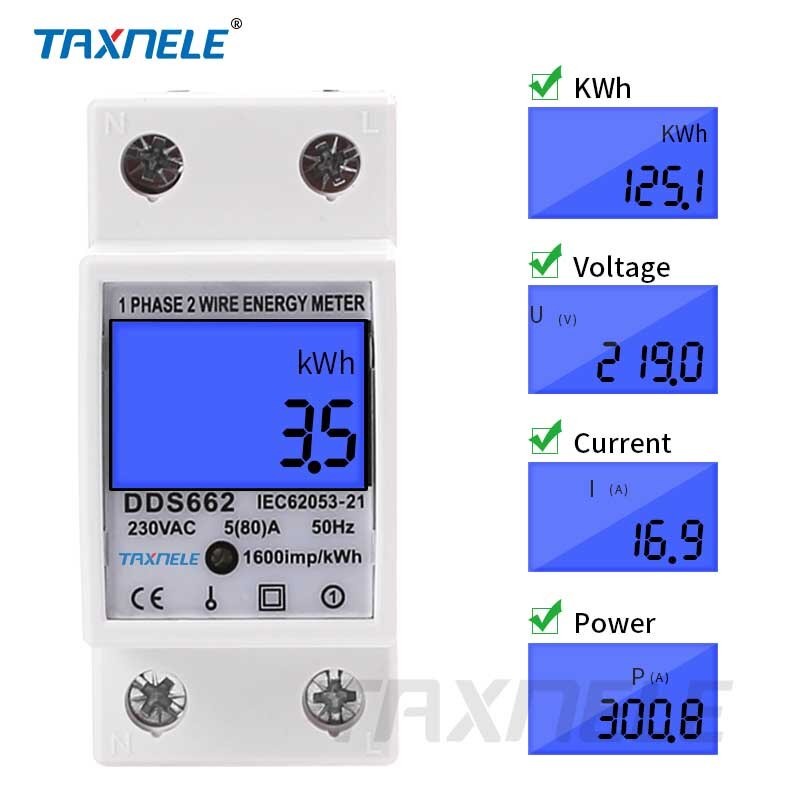

Functions: Display electricity, voltage, current, frequency, power factors

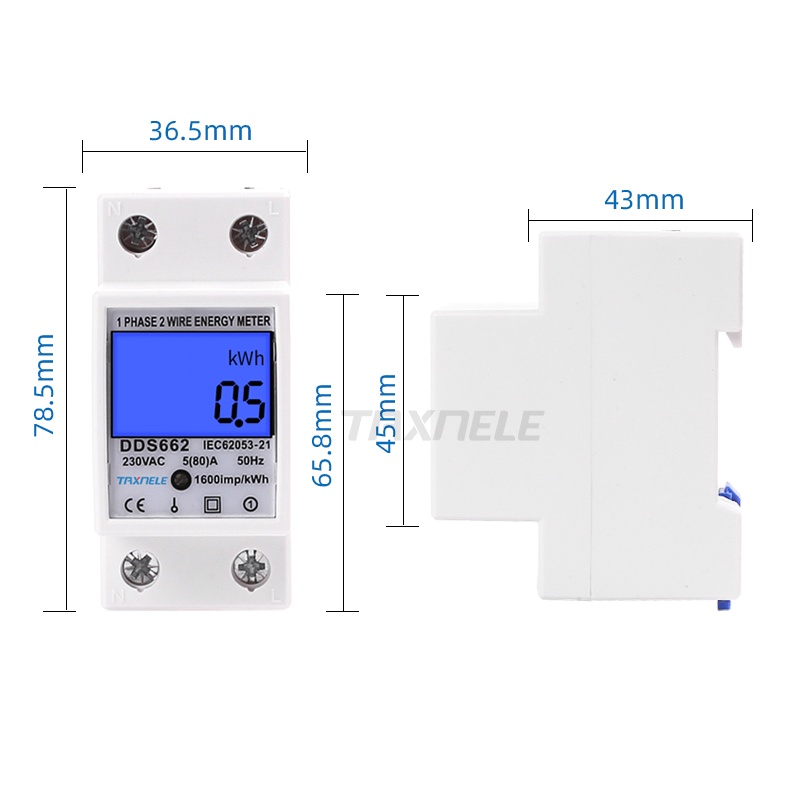

Package Size: Approx. 8.6 * 4.2 * 7.2cm/3.4 * 1.7 * 2.8in
Weight: Approx. 127.8g

Package list:
1 * Energy Meter

Note:
Do NOT has the reset function.
