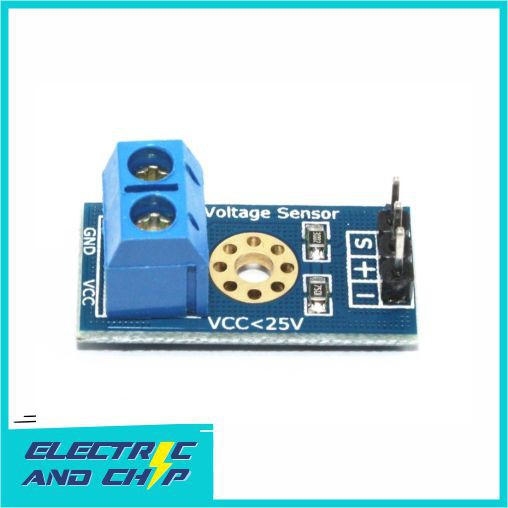

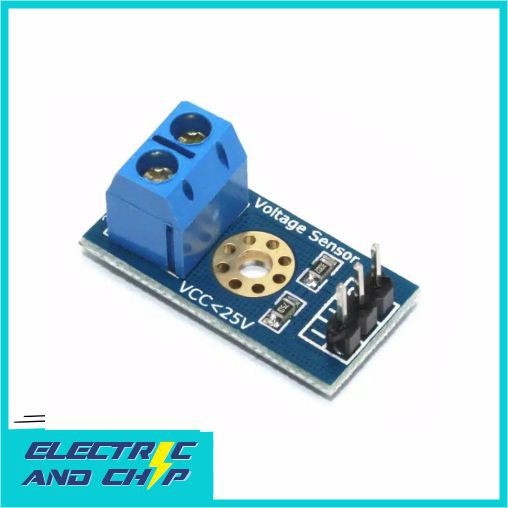

Detail Voltage Sensor Sensor Tegangan DC 0-25V
Spesifications:-Size: 25mm13mm/0.98"0.51"
-Voltage input range : DC0-25 V
-Voltage detection range : DC0.02445 V-25 V
-Voltage analog resolution : 0.00489 V
-Output Interface : "+ " connected 5/3.3V, "-" connected GND, "s" connected AD pins
-DC input interface : red terminal positive with VCC, negative with GND
-By 3P connector, connect this module with the expansion of board,
-not only makes it easier for you to detect voltage battery,
-can also use the IICLCD1602 LCD to display voltage.
Packing List:
1 x Smart Electronics DC 0-25V Standard Voltage Sensor Module
