Detail volt meter mini digital dc 4.5-30v voltmeter digital 0.56 inch 2 wire

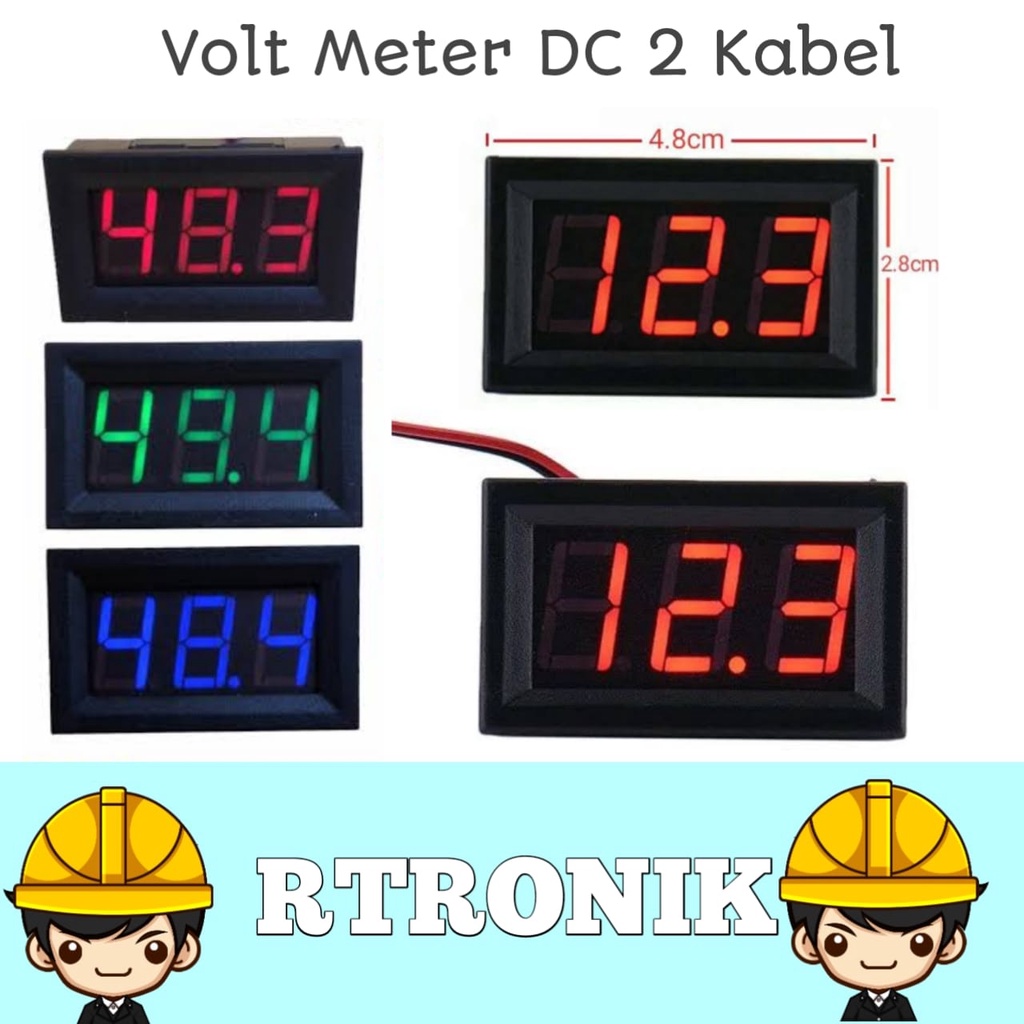

Two-wire 0.56 inch DC 4.5V to 30V Digital Display Voltmeter Voltage Panel Meter Tester
Specification:
Display color: HW-800A(red), HW-800C(blue)
Measurement range: DC4.50-30.0V
Power supply range: DC4.50-30.0V
Maximum input: DC30.0V
Permissible error: 0.5%
Input impedance: > 100Kohm
Working current: red < 23 mA, blue < 13 mA
Refresh speed: about 300 mS once
Display mode: three "0.56" LED high-brightness digital tube
Lead length: 20cm/7.87''
Working temperature: -20℃~65℃
Product size: 48mm*29mm*22mm/1.88*1.14*0.86''
Packing weight: 17g

Note:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.


Included:

1 x Digital Display Voltmeter
