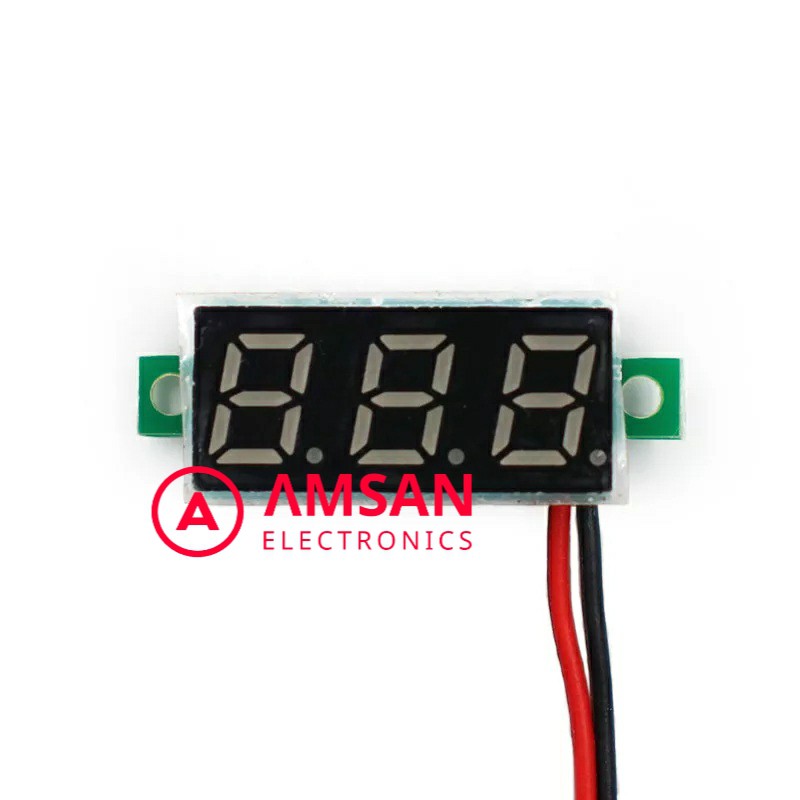

Detail Volt Meter DC 2.5-30V 0.28 Inch Voltmeter micro tanpa frame casing

Two wire connection, with reverse polarity protection
Display color: Yellow/Red/Green/Blue
Two-wire Measurement range: DC 2.5-30V, 2.7-30V, 3-30V
Min. input voltage: DC 2.5V, 2.7V, 3V
Max. input voltage:DC 30V(Higher than this voltage is has a risk of overburning)
Permissible error: 1%(±1 digit)
Display mode: three digit 0.28'LED digital tube
Size: 3.30 x 1.10 x 0.70cm (L*W*H)
Speed ratio: about 200ms/time
Current Consumption: <20mA(Generally 5-15 mA)
Install hole size: 23 x 10.5mm
Working temperature: -10℃~ +65℃

Package Included:

1 x 0.28" Mini DC Digital Voltmeter
