Vivi Tb6560 Tb6600 Papan Stepper Motor Drive Cnc Upgrade 3a 42 / 57

Detail Vivi Tb6560 Tb6600 Papan Stepper Motor Drive Cnc Upgrade 3a 42 / 57

#TB6560 #TB6600 #Upgrade #3A #42/57 #Stepper #Motor #Drives #CNC #Stepper #Motor #Board

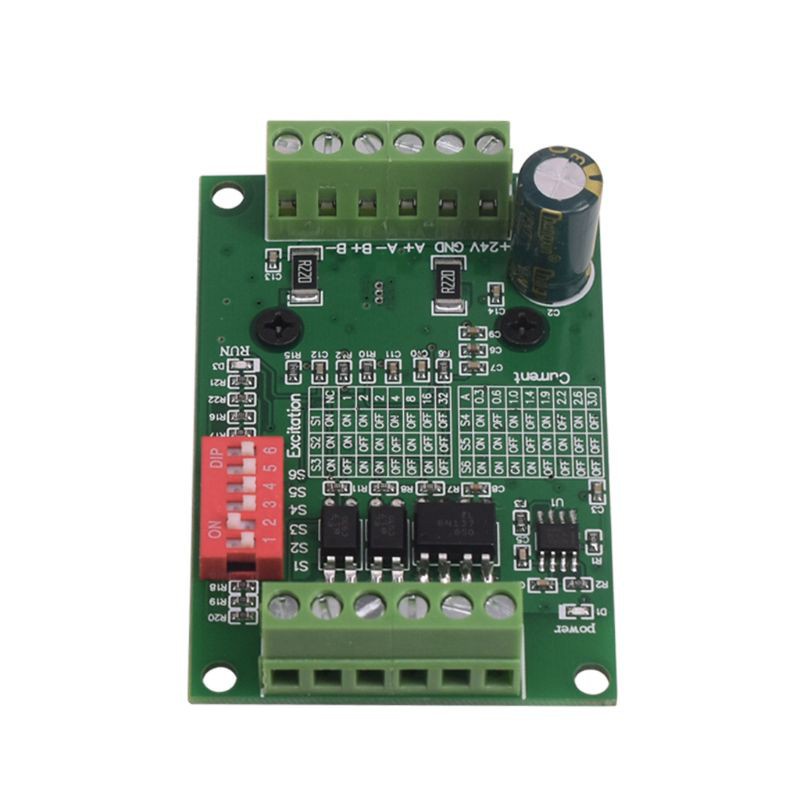

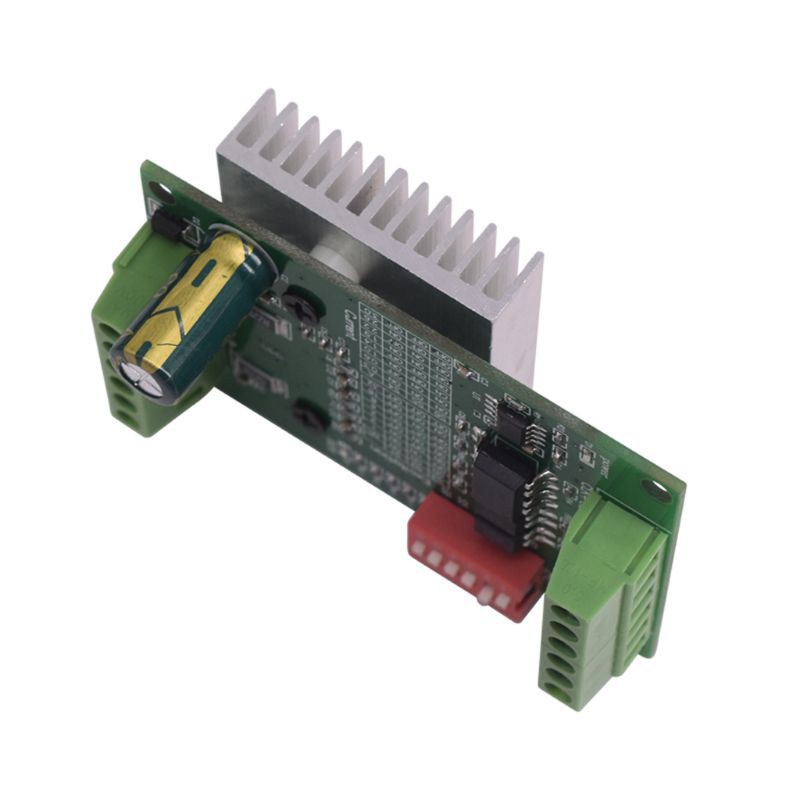

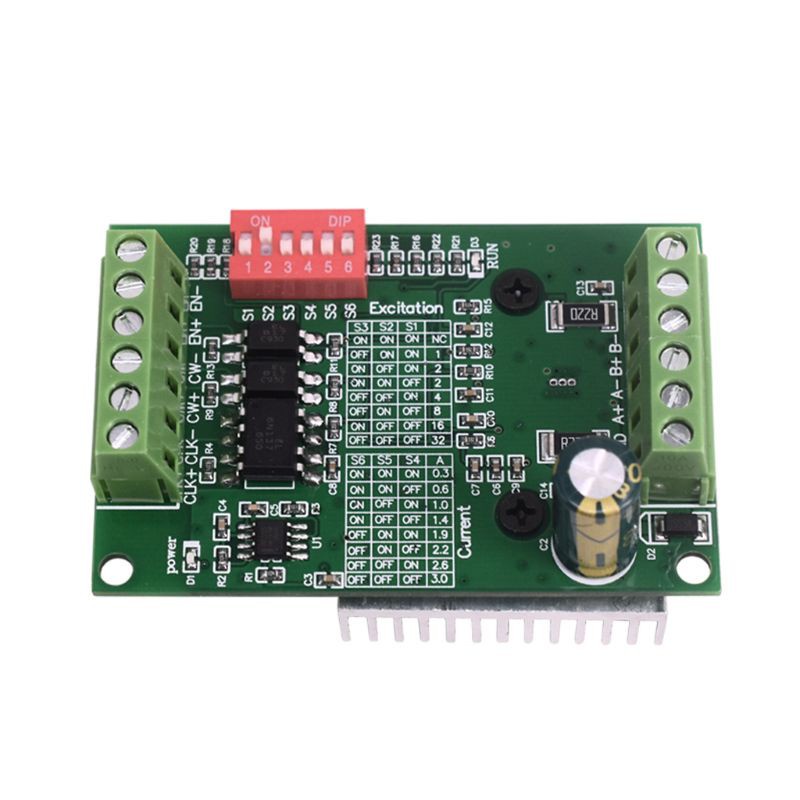

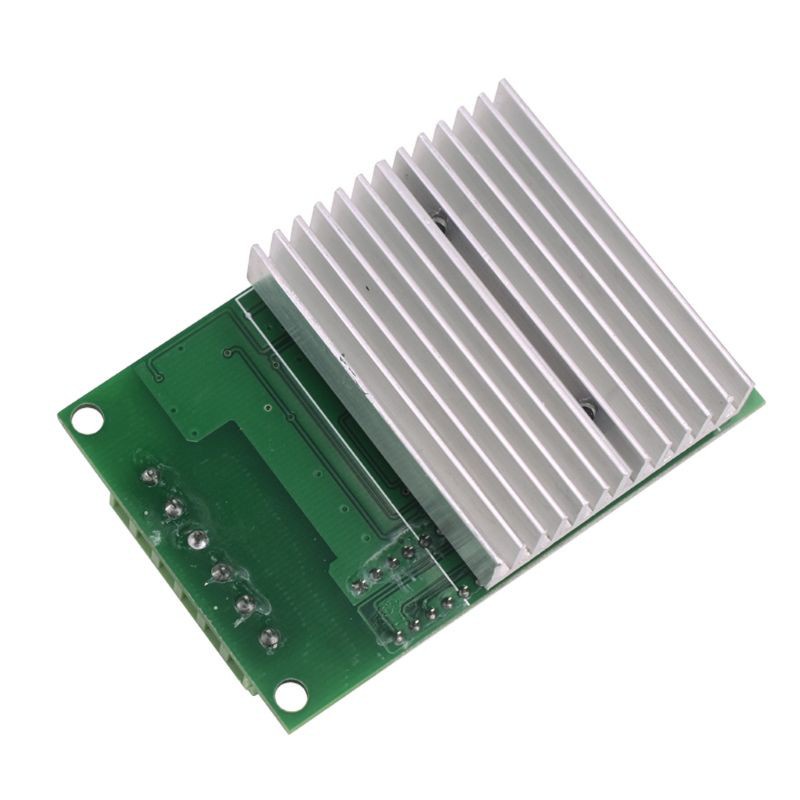

TB6560 TB6600 Upgrade 3A 42/57 Stepper Motor Drives CNC Stepper Motor Board
This product has been fully tested, and has been applied to the engraving machine, patches and other equipment, quality assurance, ease of use.

1) Working voltage DC 10V-35V. DC24V switching power supply is recommended.
2) the use of high-speed optical coupling 6N137, ensure high speed without losing step.
3) Toshiba TB6560AHQ new original chip, there are low-pressure shut-off, overheating parking and over-current protection circuit to ensure optimum performance.
4) The maximum rated output: ± 3A
5) for 42, 57 3A stepper within two-phase / four-phase / four-wire / six-wire stepper motor is not suitable for more than 3A stepper motor.
6) automatic semi-flow function.
7) Subdivision: full step, half step, step 1/8, 1/16-step, 1/32-step,up to 32 segments.
8) Volume: Width Length 75 * 50 * high 35 (MM)

Similar products in features:
1, the current level by adjustable to meet your various application requirements.
2, semi-automatic adjustable flow.
3, using high-speed optical coupling 6N137, ensure high speed without losing step.
4, plate printing setup instructions, can operate without manual.

Gambar produk
