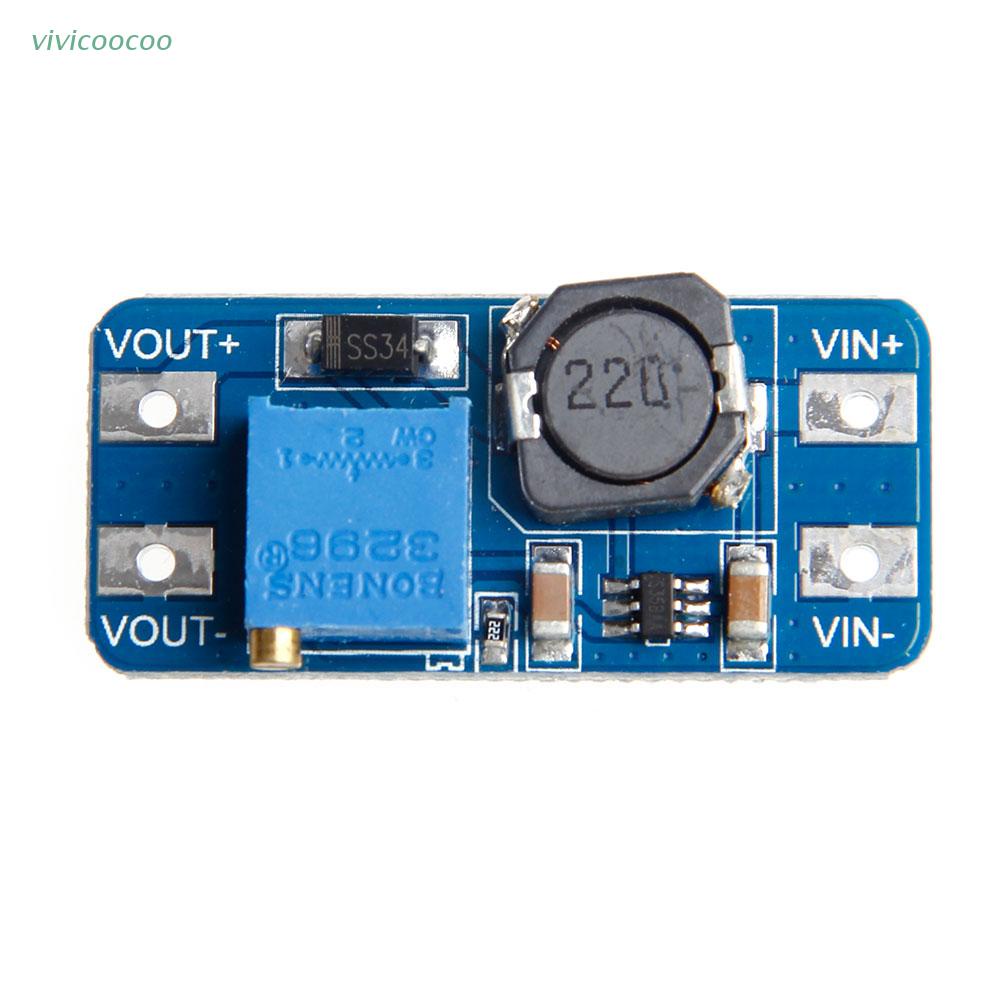

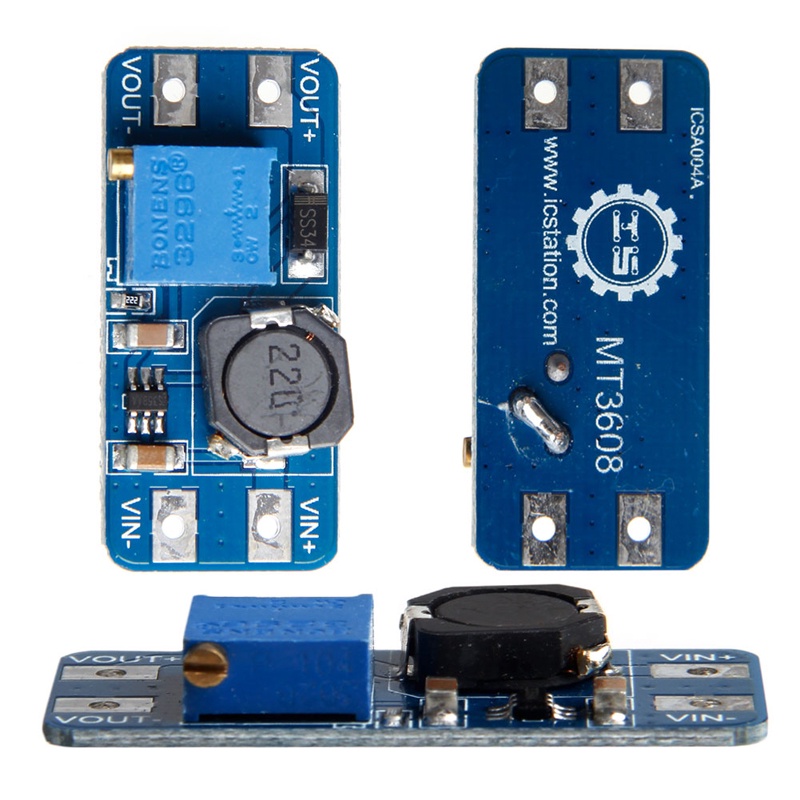

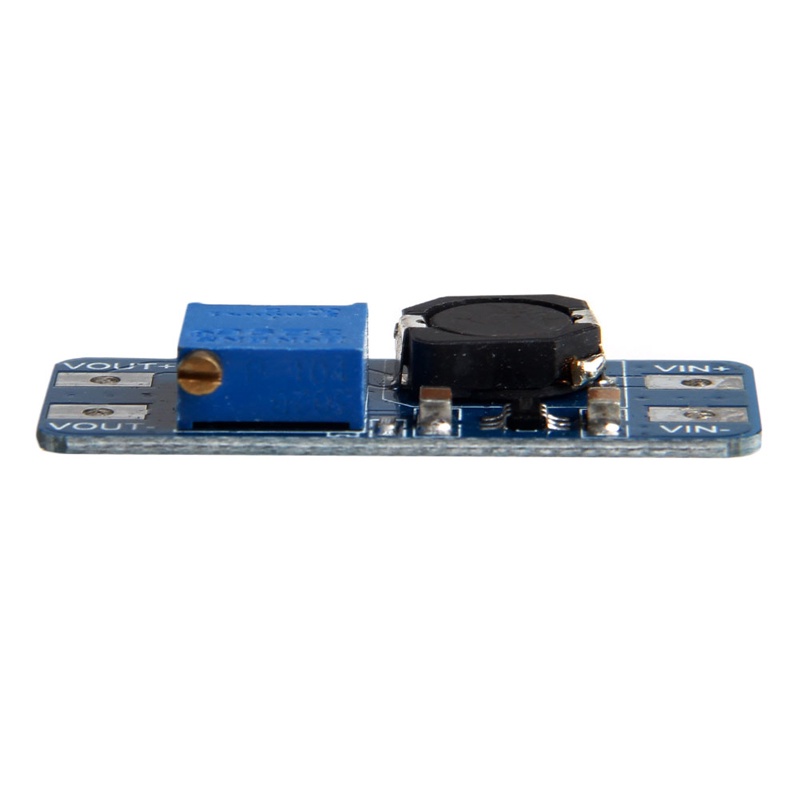

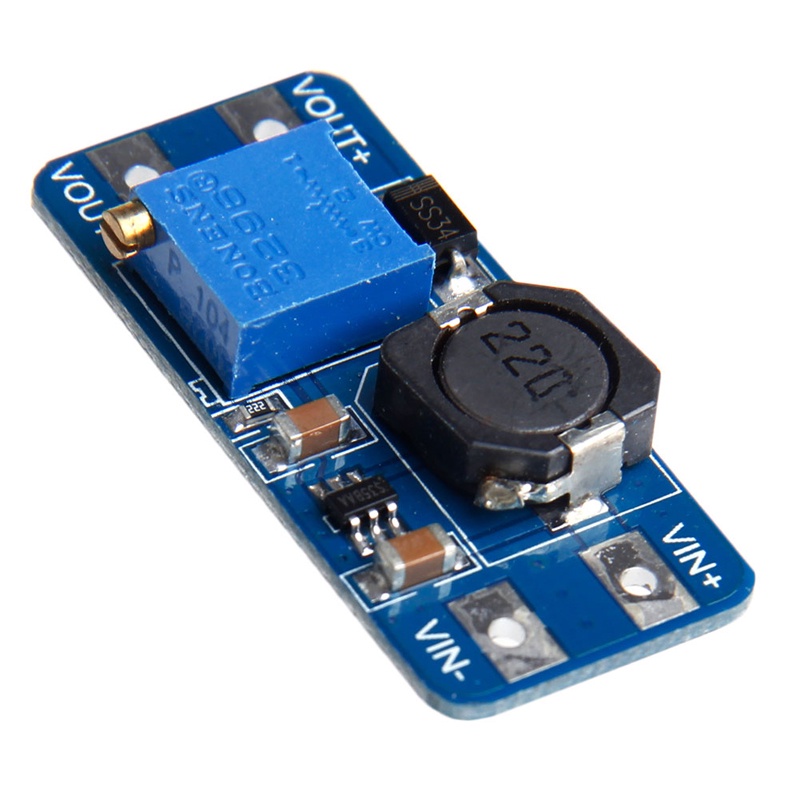

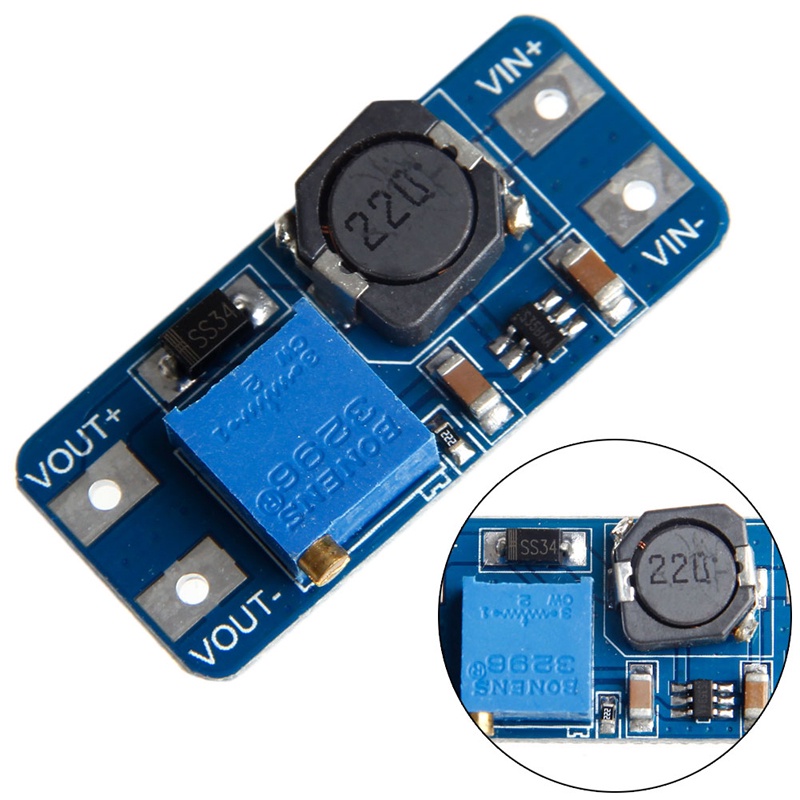

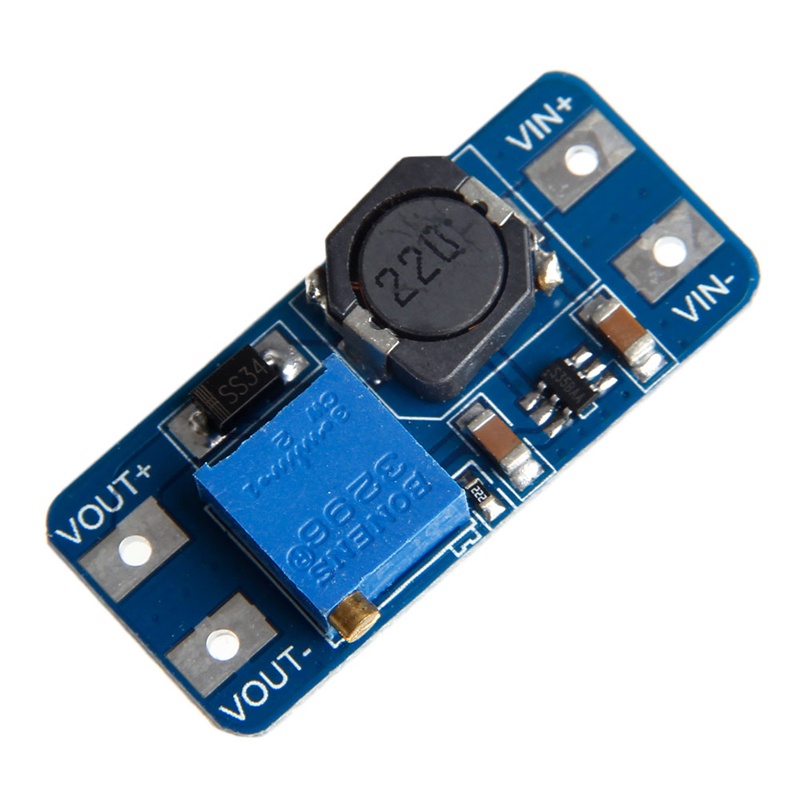

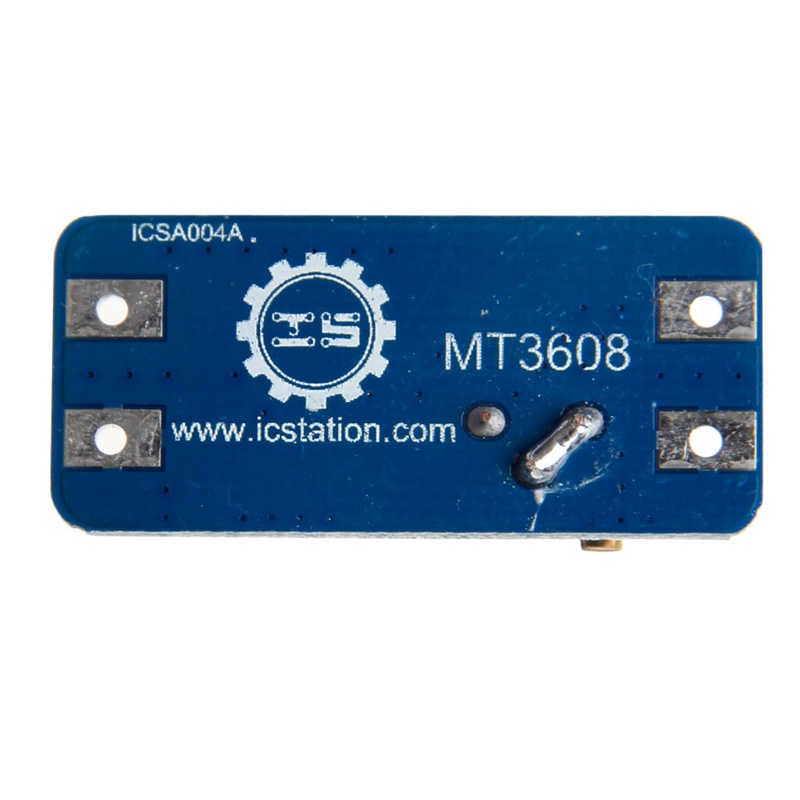

Detail Vivi Mt3608 Modul Konverter Booster Power Supply Output 2a Dc Step Up Adjustable
MT3608 DC DC Step Up Module Adjustable Converter Booster Power Supply Output 2A100% brand new and high quality
Material: Electronic Component
Color: See pictures
Input voltage range : 2-24V DC
Output voltage range : Max 28V DC
Efficiency : 93%
Output current : 2A
The input voltage should not exceed the maximum input voltage.
The peak current output current is no more than TV university.
When adjust the blue potentiometer ,please use a multimeter to monitor the voltage
Rotating Clockwise can rise the voltage while rotating counterclockwise could lower the voltage
When the module output voltage can not be adjusted ( the output voltage is always equal to the input voltage ) Please adjust the potentiometer counterclockwise 20 laps (20 turns) or more till it works.
The image is for illustration
Size: 3.7 * 1.7 * 1.4cm/1.46"*0.67"*0.55" (L*W*H)
No Retail Packages
Quantity:1Pc
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
