Vivi Modul Board Amplifier Audio Stereo Bluetooth 5.0 3w / 5w Pam8406 Xy-P5W

Detail Vivi Modul Board Amplifier Audio Stereo Bluetooth 5.0 3w / 5w Pam8406 Xy-P5W

3W/5W PAM8406 Bluetooth-compatible 5.0 Stereo Audio Power Amplifier Board AMP Module XY-P5W
Description:
100% brand new and high quality
Feature:

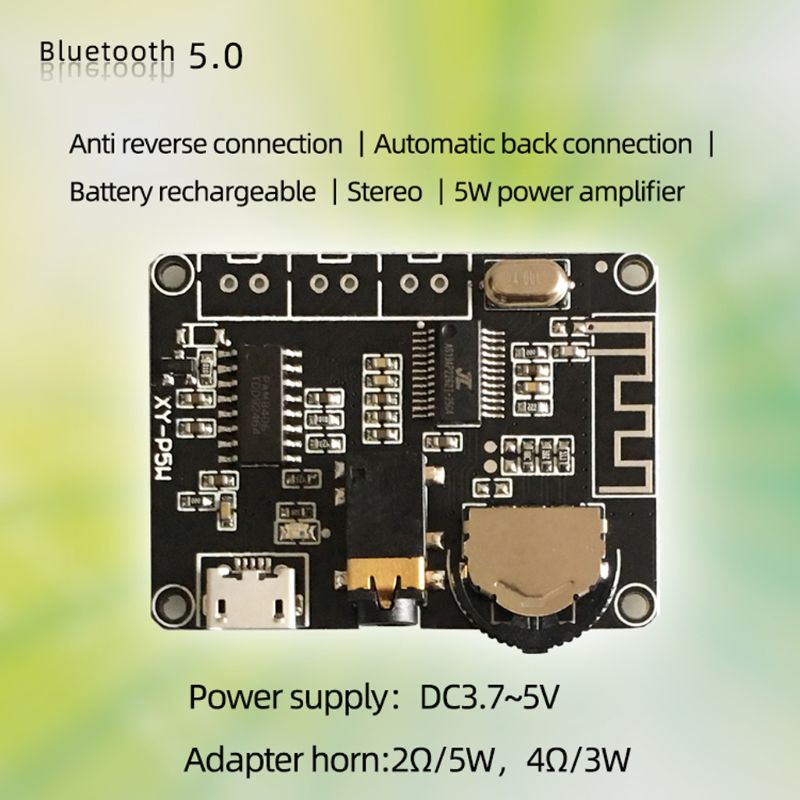

It is a high-power stereo Bluetooth5.0 amplifier module.
Width work voltage range. Applicable multiple type speakers.
Power reverse protection, Thermal protection.
Anti reverse connection, automatic back connection.
It is ideal for DIY wireless Bluetooth-compatible speakers and transponders.

Specifications:
Item Type: Bluetooth-compatible amplifier module
Material: electronic components

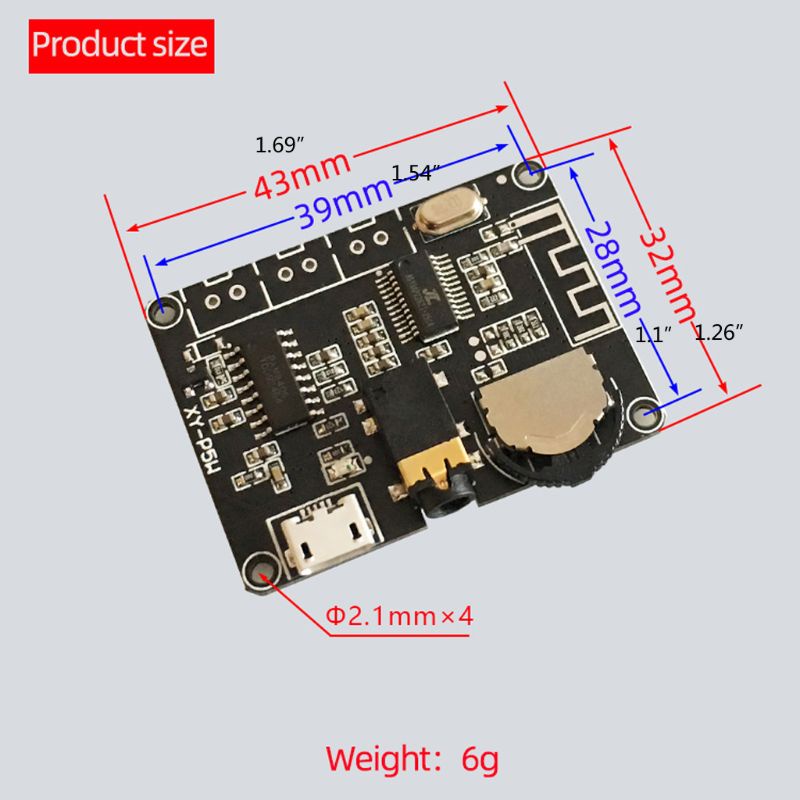

Size: 43x32mm/1.6x1.2in
Color: Black
Model: XY-P5W
Supply voltage: 3.7-4.2V Lithium battery, Micro USB DC5V
Bluetooth-compatible version: 5.0
Connect distance: 15 meters(visible)
Output mode: stereo
Output power: 3W*2 @5V 4Ω, 5W*2 @5V 2Ω
Speaker selected: 2Ω/5W, 4Ω/3W, 8Ω/2W
Quantity: 1 PC

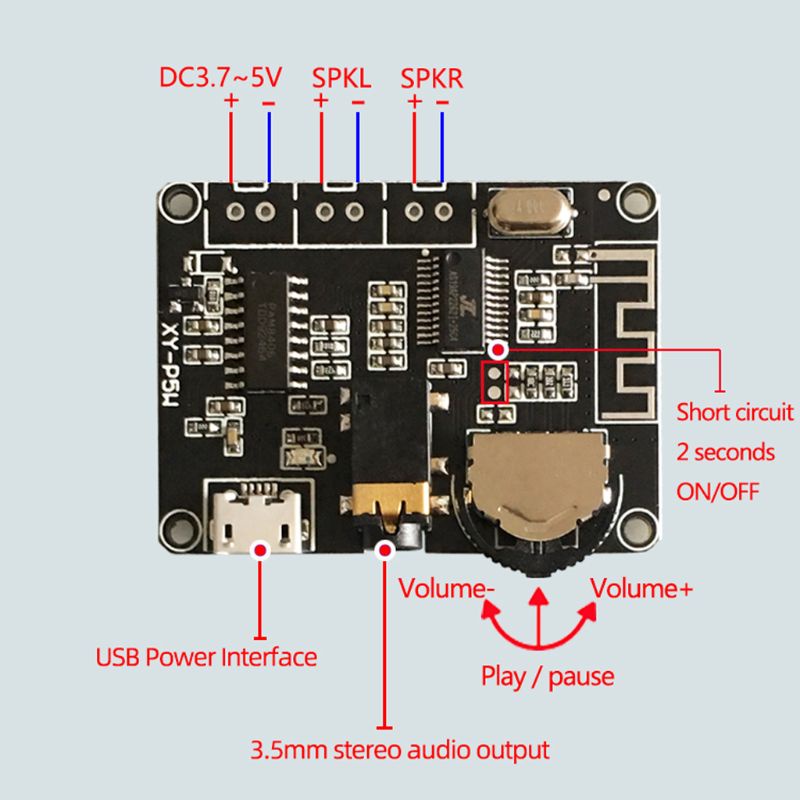

Operation:
Supply the module, the blue LED is on, and it goes into Bluetooth-compatible mode；Waiting for pairing after playing the audio tone; Turn on phone Bluetooth,“XY-P5W”will be searched and display; Click the“XY-P5W”，it will connect to the board. It connects successfully with an audio tone; After this you can play the music. The power amplifier board will prepare for the next pairing with an audio tone, When the Bluetooth-compatible is disconnected.

Note:
Transition: 1cm=10mm=0.39inch
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Includes:
1 x Bluetooth-compatible amplifier module
(other accessories demo in the picture are not included!)
