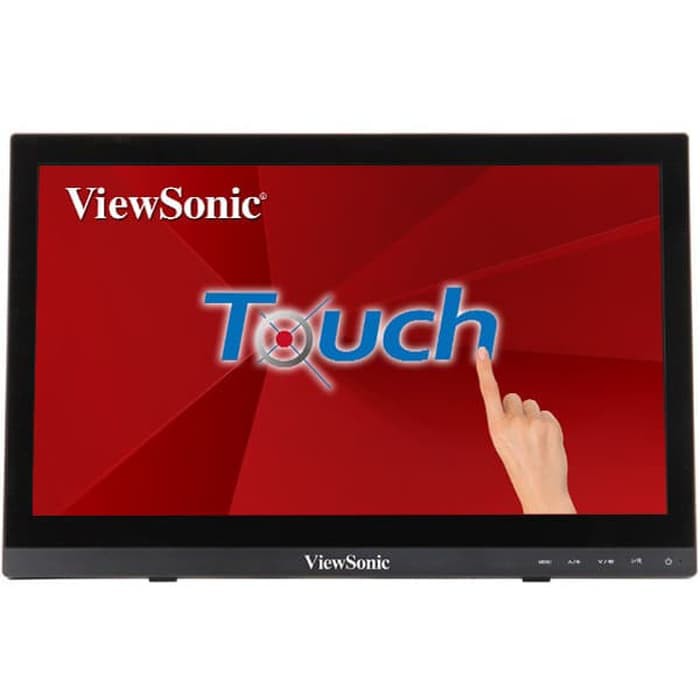

Viewsonic Monitor TouchScreen TD1630-3

With advanced ergonomics, the display can tilt or lay flat to give users maximum
comfort. TD1630-3 delivers touchscreen versatility, offering fantastic
flexibility for retail or business settings. ViewSonic TD1630-3 is a 16” (15.6”
viewable) display with 10-point multi-touch functionality, while VGA and HDMI
inputs provide flexible connectivity. Adding to a list of versatilities, the
display is compatible with a wide range of operating systems, including Windows
10 and Linux versions.* Along with the dual integrated speakers, this intuitive
touchscreen delivers a highly accurate, ultra-responsive touch experience that
is ideal for interactivity in retail or business settings. *Supports Windows
7/8/10, Linux Kernel 4.X/3.X

LCD PANEL
Monitor Size : 16”W (15.6” Viewable) LCD monitor
Panel Technology : TN Technology, a-si TFT Active Matrix LCD
Resolution : HD 1366 x 768
Display Area : 344.23mm (H) x 193.54mm (V)
Aspect Ratio : 16:9
Brightness : 220 cd/m2 (Typ), 187 cd/m2 (Min) w/o touch module, 190 cd/m2 (Typ),
160 cd/m2 (Min) w/ touch module
Contrast Ratio : 500:1 (Typ)
Dynamic Contrast Ratio : 10,000,000:1
Viewing Angles : 90 degrees / 60 degrees (Typ)
Response Time : 12ms
Backlight : 1 LED light bar
Backlight Life : 15,000 Hrs (Min)
Colours : 262K colours (6-bit)
Colour Gamut : 45% of NTSC (Typ)
Panel Surface : ≧7H, Haze < 2%

INPUT SIGNAL
Frequency : Fh = 30 ~ 61KHz ; Fv = 56 ~ 75Hz
Sync : Separate Sync, TMDS
COMPATIBILITY
PC : Windows 7/8/10 tested
Mac® : Display: Power Mac tested, Touch Module:iOS not support

CONNECTOR
Input : DB -15 x 1
HDMI x 1 (v1.4 compatible)
Audio in x1 (3.5mm plug)
AUDIO
Speaker : 1W x 2
USB
Upstream : Type B x 1
POWER
Power : 5.5 x 2.1 x 11 mm DC connector
Voltage : AC 100-240V (Universal); 50/60Hz
Consumption : 5.5W
Optimize : 4.9W
Conserve : 4.3W
