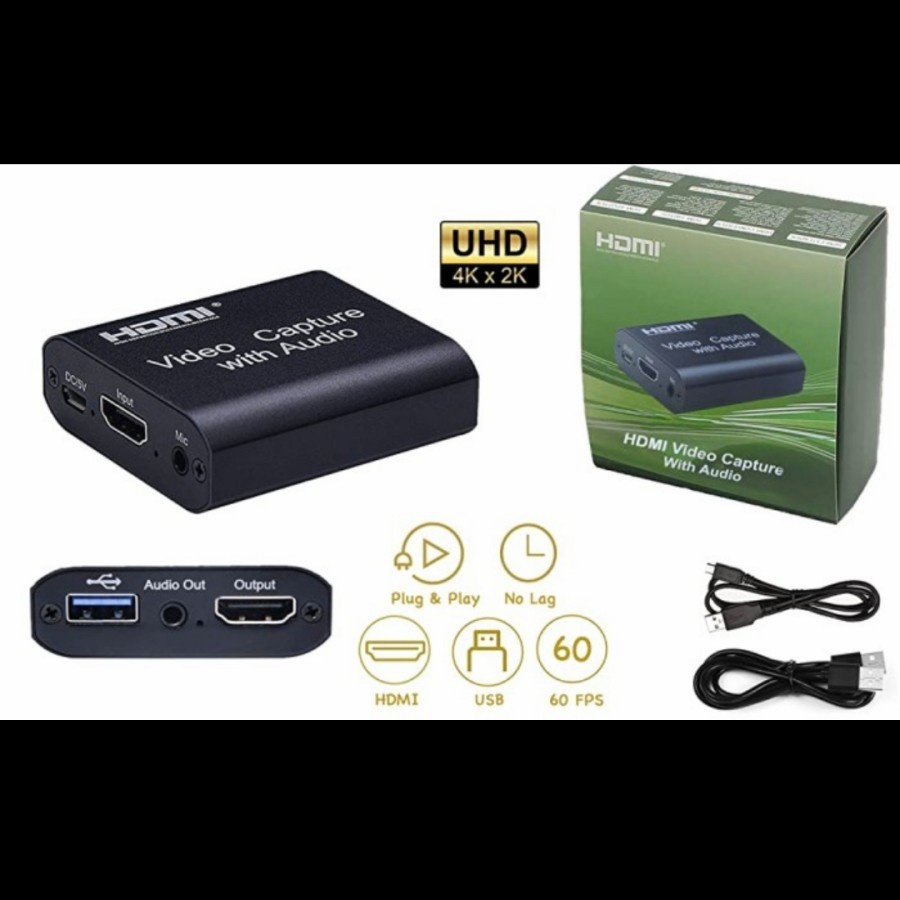

Video Capture HDMI USB Card with Audio USB 3.0 1080P Loop Audio

Detail Video Capture HDMI USB Card with Audio USB 3.0 1080P Loop Audio

Video Capture HDMI USB Card with Audio USB 3.0 1080P Loop Audio

HDMI Capture adalah alat untuk mengimport gambar dari device lain, Bisa kamera DSLR, Mirrorless, Handycam, PSP, PS3, XBox selama alat mempunyai HDMI Output, agar bisa diStream atau di streamingkan ke Platform Video Streaming seperti, Youtube, Twitch, Zoom, dll


The Video Capture can capture both HDMI video and HDMI audio, sending audio and video signals to computers and smart phones for preview and storage. Suitable for high definition acquisition, teaching recording, medical imaging, etc.

Features :
*Support HDMI loop out
*Support microphone audio input, 3.5 stereo output
*Support microphone audio and hdmi superimpose capture
*Support input max resolution 4K
*Support output max resolution 1080P
*Support AWG26 HDMI standard cable, input up to 15 meters
(1080P and below resolution)
*Support most acquisition software, such as VLC, OBS, Amcap, etc
*Support Windows, Android and MacOS
*Conform to USB Video and UVC standard
*Conform to USB Audio UAC standard
*Compact and portable

Specification:
HDMI resolution............................Max input can be 4K
Support video format ....................8/10/12bit Deep color
Video output format.......................YUV, JPEG
Video output resolution..................Max output can be 1080P
Support audio format......................L-PCM
Input cable distance.......................<15m, AWG26 HDMI standard cable
Max working current.......................0,7A /5VDC
Operationg Temperature range......(-10 to +55 C)
Dimension ( L x W x H )..................59x56x19 (mm)
Weight.............................................56g

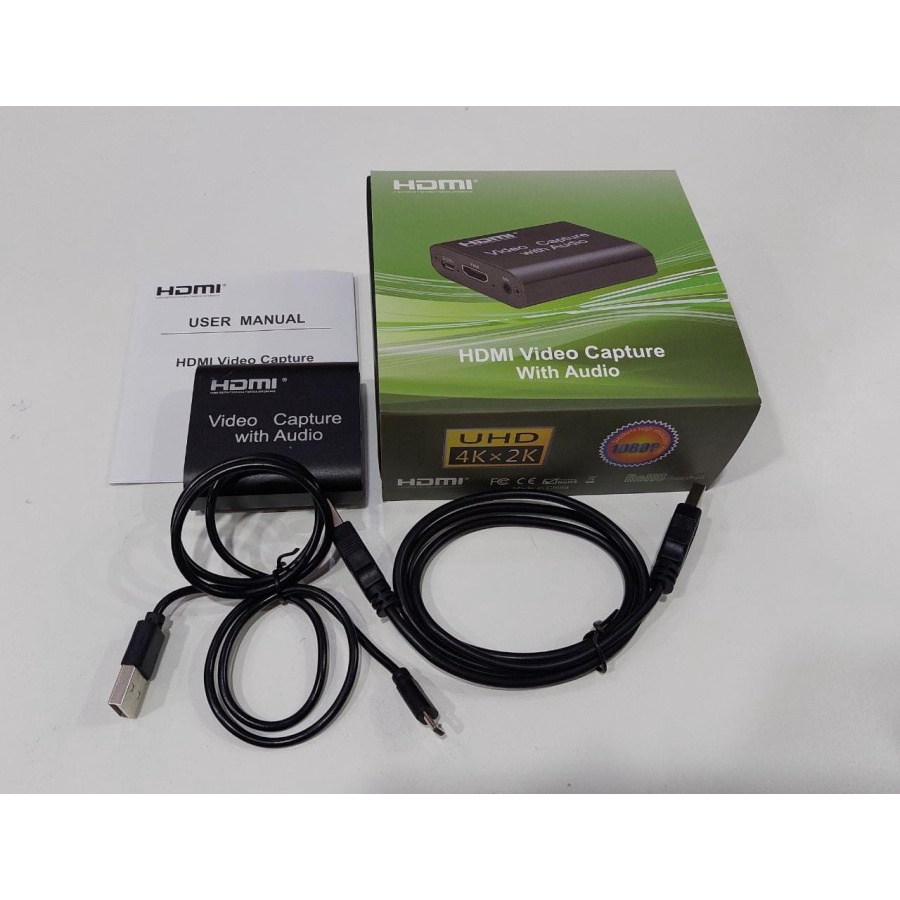

Package included:
1* Video Capture
1* User Manual.
1* USB Cable Male to Male
1* Micro USB cable
