VIDEO BALUN CCTV 1CH 1 CHANNEL CVBS AHD HDCVI HDTVI 5MP

Detail VIDEO BALUN CCTV 1CH 1 CHANNEL CVBS AHD HDCVI HDTVI 5MP

MOHON CHAT TERLEBIH DAHULU UNTUK MENANYAKAN STOCK

UP TO 5MP

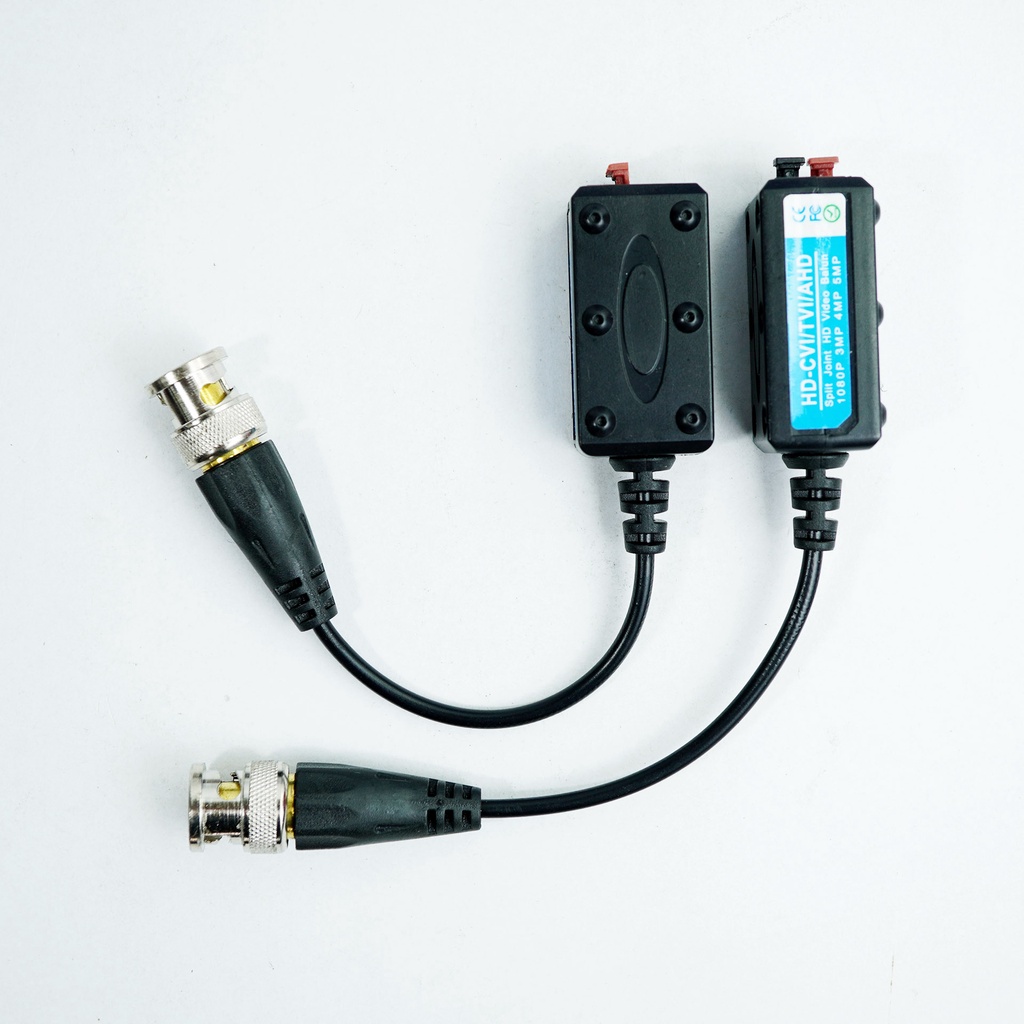

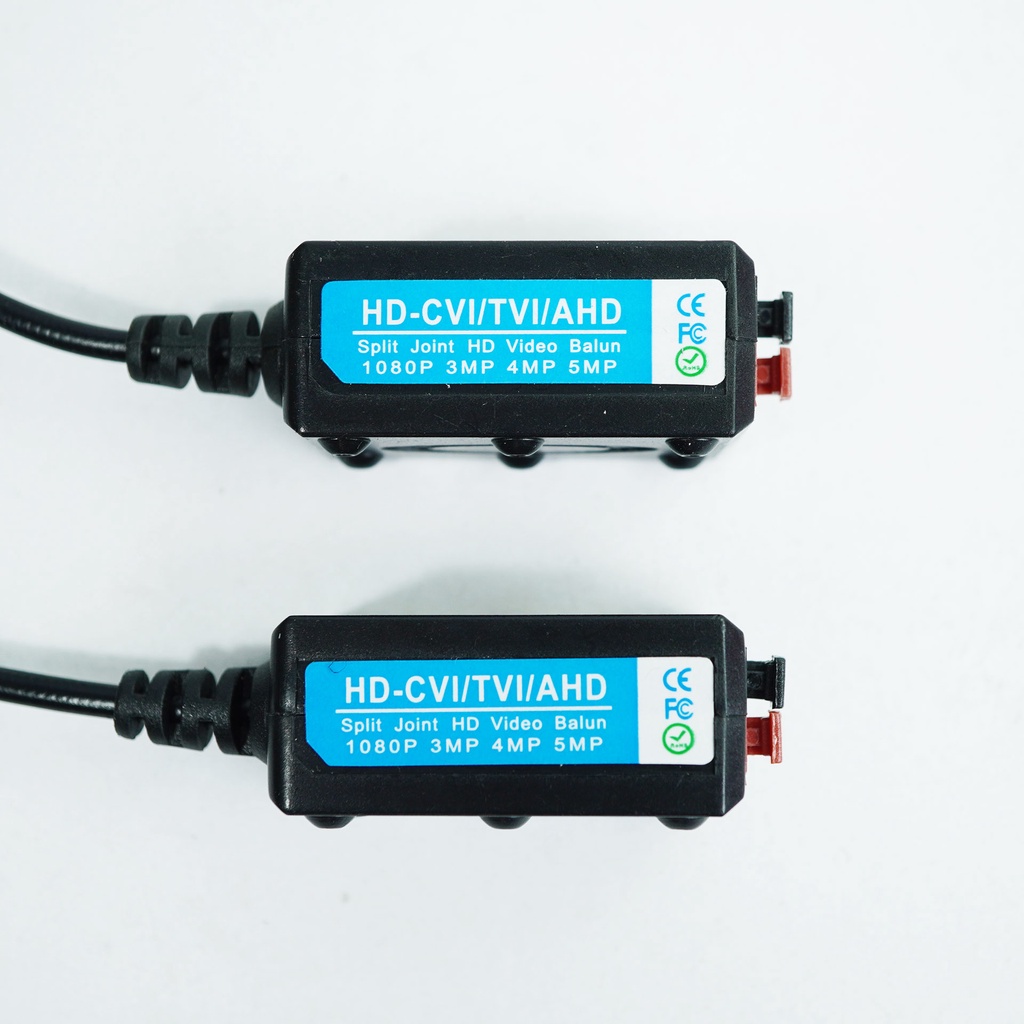

VIDEO BALUN PASIF 1CH UNTUK CVBSAHD/CVI/TVI

PENGUAT SIGNAL VIDEO KAMERA CCTV VIA KABEL LAN/UTP CAT5/CAT6
Disarankan pakai tembaga original untuk jarak yang jauh

Fitur
Compatible with all HD- CVI,HD-TVI,HD-AHD
Up to 450m for 720P CVI Cameras
Up to 250m fo 1080P/3MPI4MP/5MP CVI Cameras
Up to 250m for 720P/1080P/3MP/4MP/SMP TVI Cameras
Up to 350m fo 720P/960P AHD Cameras
Up to 250m for 1080P/3MP/4MP/5MP AHD Cameras
NTSC, PAL, and SECAM video formats
No power required
60dB Cross talk and noise immunity.
Compact size and easy installation
Built-in transient suppr ression protection

Innovative combinable design
Technical Specifications
Frequency response . DCto 60Mhz
Attenuation: 0.5dB type
CMRR 60dB
Surge protection:4KV
ESD:8KV
Connectors Male BNC and "Press-Fit terminal blocks
Impedance BNC:75 ohmas
Terminal: 100 ohmas
Working Temperature -10C to + 70C
Storage Temperature :-30C to + 70C
Humidity O to 95%
Dimension 39mm* 17mm* 19mm(excluding connectors)
Material:ABS Plastic
Application;Passive UTP HD-CVI/TVI/AHD Transmission

KUALITAS SANGAT BAIK

Gambar produk
