Video balun 16channel UTP passive video transceiver 16ch

Detail Video balun 16channel UTP passive video transceiver 16ch

HARGA YG CANTUMKAN DIATAS MERUPAKAN HARGA 1 PCS
NB: disarankan untuk pembelian 2 pcs (sepasang)
( dari camera cctv ke utp balun & 1 lagi dari balun utp ke dvr )

Description:
1) With working with passive transceiver and active transmitters allow signals transmission up to 330m and 1500m respectively.
2) The unparalleled interference rejection and low emissions of the UTP allow video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits.
3) This 16 Channel Video Balun allows the use of a shared or existing cable plant.
4) Video balun is to convert the video signal into the balanced signal applicable to be transmitted on common Cat-5 unshielded twisted pair wire with perfect transmission effect, which can be applied in the occasions such as video monitoring and video meeting and can transmit four channels of video image simultaneously on an 16-core Cat-5 twisted pair wire
5) Video Balun Transceiver can simplify the wiring project and save wire use quantity.

Features:
1) 16 Channel UTP Balun adopt differential signal transmission with excellent anti-jamming ability
2) Save project wire expenses. each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit four channels of video signal
3) Full motion CCTV video at distances up to 330m when used with any passive UTP video transceiver
4) Up to 1500m with any active UTP video receiver
5) No power required
6) Built-in transient suppression protection

Specifications:
1) Frequency response: DC - 8MHz
2) CMRR (Common Mode Rejection Ratio): 60DB
3) Impedance: BNC terminal: 75ohm, Connection terminal: 100ohm
4) Working temperature: -10 - 70 Celsius degree
5) Storage temperature: -30 - 70 Celsius degree
6) Applicable to NTSC, PAL, SECAM and CCIR systems
7) Size: 46cm x 22cm x 7cm ( excluding BNC)

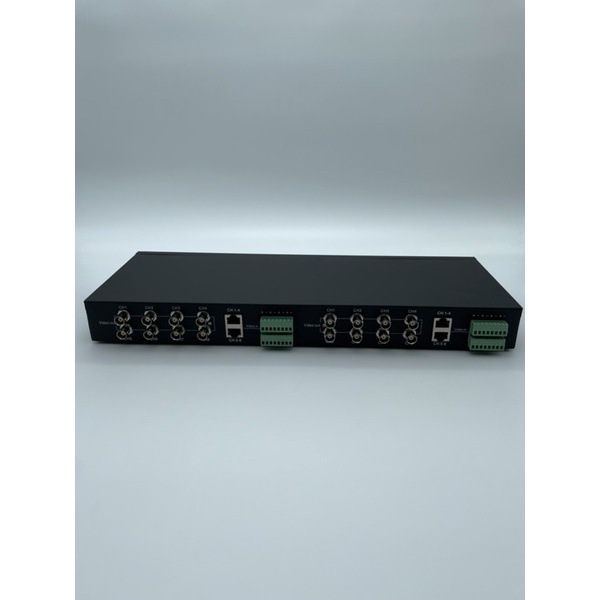

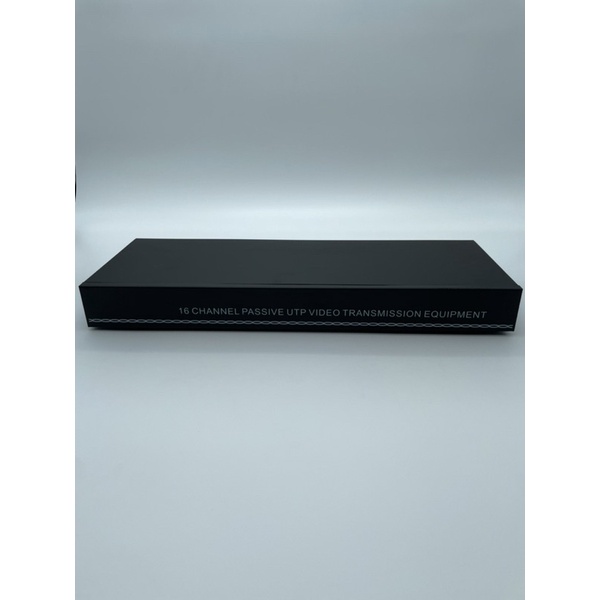

Gambar produk
