VGA2AV Converter VGA to RCA AV 3.5mm Audio CVBS to VGA/HDMI2AV/VGA2AV

Detail VGA2AV Converter VGA to RCA AV 3.5mm Audio CVBS to VGA/HDMI2AV/VGA2AV

VGA2AV Converter VGA to RCA AV 3.5mm Audio CVBS to VGA

Features:
1. Automatically detects and converts PC input images to NTSC, PAL.
2. Support high resolution PC input up to SXGA (@ 60Hz).
3. Support resolution:
640x480 at 60 fps; 800x600 60 fps, 75 fps; 1024x768 60 fps, 75 fps1280x720 at 60 fps; 1280x768 60 fps, 75 fps; 1280x1024 60 fps, 75 fps;1360x768 at 60 fps; 1400x1050 60 fps; 1440x900 60 fps;1680x1050 at 60 fps; 1600x1200 60 fps; 1920x1080 60 fps;


Specifications:
1. Frequency Bandwidth 165 MHz
2. Input Port 1 x VGA
3. Output Port 1 x AV
4. USB power supply source
5. ESD Protection Human Body Model: 8kV (air-gap discharge) kv (contact discharge)
6. Operating Temperature 0 C ~ 40 C / 32 F ~ 104 F
7. Storage Temperature -20 C ~ 60 C / -4 F ~ 140 F
8. Relative Humidity 20 ~ 90% RH (Non-condensing)
9. Power Consumption (Max) 2.5 W (Max)
10. Dimensions (mm) 66 (D) x 55 (W) x 20 (H)
11. weight:80 (g)


Package Includeds:

1x Converter VGA2AV

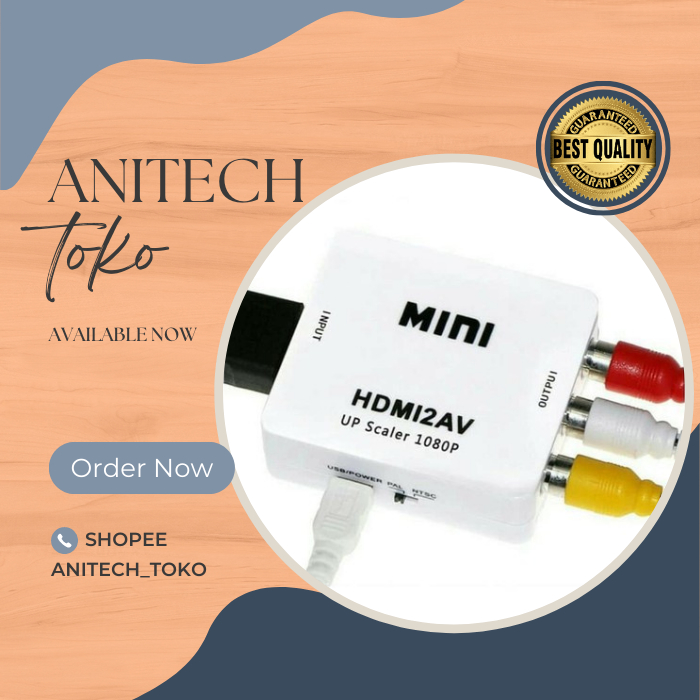

Gambar produk
