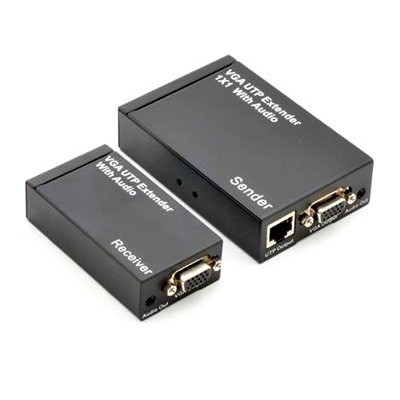

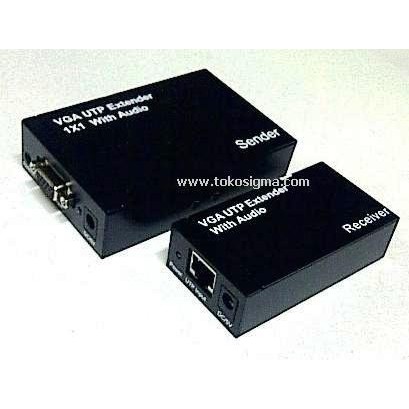

Detail VGA UTP EXTENDER 1X1 SPLITTER WITH AUDIO P/N4001
Jual : VGA UTP EXTENDER 1X1 SPLITTER WITH AUDIO P/N4001

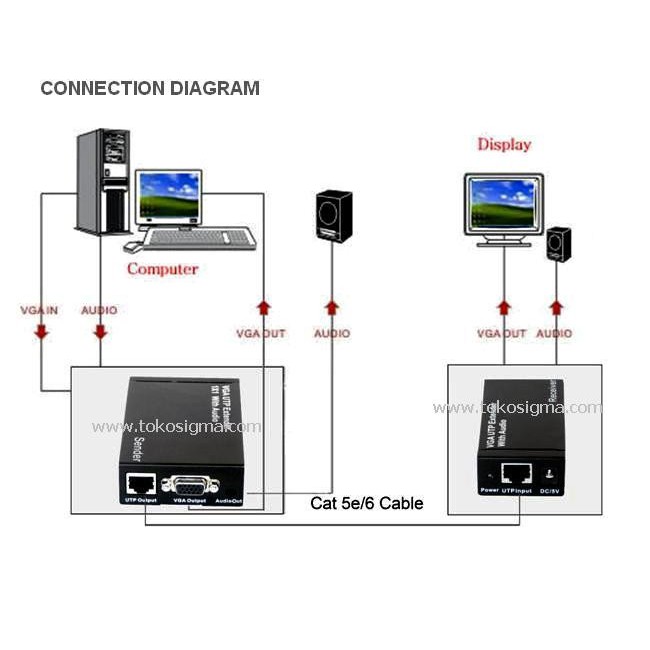

This VGA UTP Extender 1X1 Splitter with Audio is an ideal device for local displaying and remote viewing. It combines split function and extension function. It distributes the input of the VGA signal and audio signal into the output. The Receiver by Cat5 x1 receives the signal from the sender and transmits to display. Receiver works with the Sender as a full functional module. Only by the most inexpensive CAT-5e/6 cable the full functional module extend the VGA display max up to 984 feet (300 meters). It offers solutions for VGA retail and show site and Projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Extend VGA video and stereo audio signal max up to 300m over one UTP cat5e/6 cable. Adjusting GAIN and PEAK to adapt for the different length of UTP cable. GAIN: Brightness adjustment. PEAK: Skew adjustment. Support resolution max up to 1920x1200. Dual output at local unit: 1 x VGA output for local site, plus 1 x UTP output for remote site. Work with monitors projectors, HDTV, and flat panels.
Package Includes: ( weight : 710 grams )
1X VGA UTP Extender 1x1 Sender with Audio 1X VGA UTP Extender 1x1 Receiver with Audio 1X User Manual 2X Power Supply Adaptor 5V 2A
