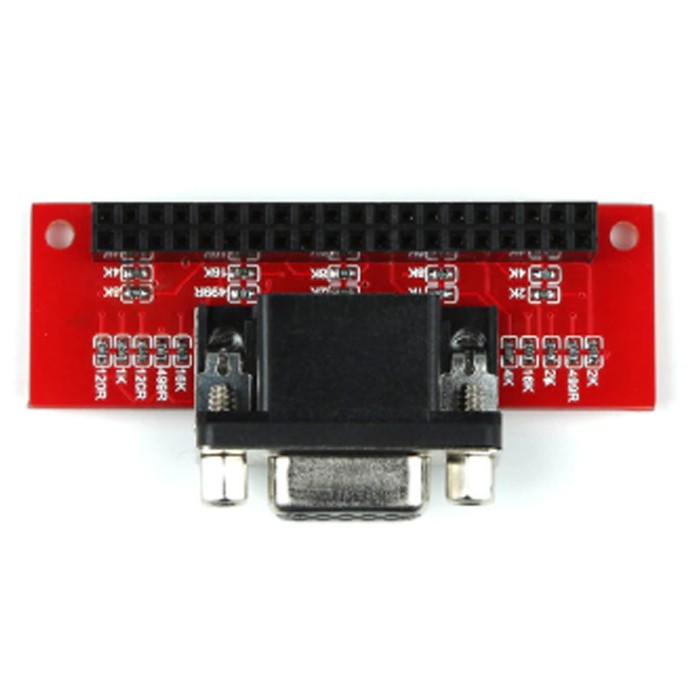

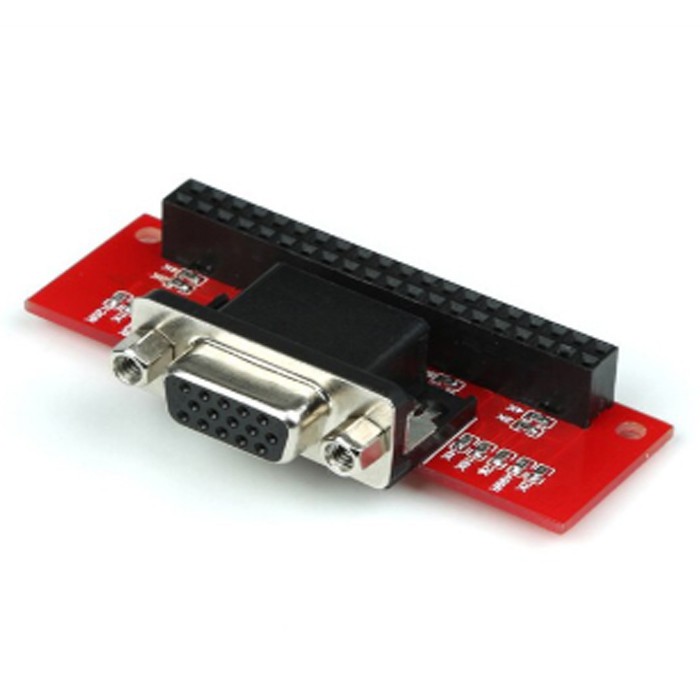

VGA 666 Adapter Board For Raspberry Pi 3B / 2B / B+ / A+
Desricption:


It is a neat and very useful solution for using a VGA screen/monitor with your Raspberry Pi and is far cheaper than an HDMI to VGA adapter or similar. The VGA connection is driven natively in hardware over the GPIO pins (using a parallel interface) and uses around the same CPU load as the HDMI connection on board. It is capable of displaying 1080p60 VGA video with no CPU load. It is also possible to drive this interface at the same time as the HDMI connection, so a dual screen set up is also possible.



Please Note. This add on board uses all but 6 of the GPIO pins so it may not be possible to use other add on boards at the same time as the VGA adapter.

Note: Raspberry Pi main board is not included.


Feature
Support for Raspberry Pi 3B / 2B / B+ / A+
The VGA output supports resolution:from 640 x 480 up to 1920 x 1024 at 60fps.
With 6 bits per channel you have a maximum of 262144 colours.
Easy to setup.
Easy to configure.
Dimension: 64.00mm x 32.3mm
Weight: 16.5g
Package included:
1 x VGA 666 Adapter Board For Raspberry Pi 3B / 2B / B+ / A+


How to use it
Edit /boot/config.txt file with vim.tiny or other editor. and modify as following:
framebuffer_width=800
framebuffer_height=600
dpi_group=2
device_tree=bcm2710-rpi-3-b.dtb
dpi_mode=86
dtparam=i2c_arm=off
dtparam=spi=off
dtparam=uart0=off
dtparam=uart1=off
dtoverlay=pi3-disable-bt-overlay
dtoverlay=vga666
enable_dpi_lcd=1
display_default_lcd=1
force_pwm_open=0
dtparam=audio=on
start_x=1
gpu_mem=128
