VFL Visual Fault Locator 20MW/Laser Fiber Optik 20km

Detail VFL Visual Fault Locator 20MW/Laser Fiber Optik 20km

VFL (Visual Fault Locator) 20Mw

VFL dirancang khusus untuk personel lapangan yang
membutuhkan alat yang efisien dan ekonomis untuk penelusuran serat, perutean serat, dan pemeriksaan kontinuitas dalam jaringan optik. Itu termasuk:
- Menemukan titik putus, koneksi yang buruk, bengkok atau retak pada
kabel serat optik.
- Menemukan kesalahan zona mati OTDR
- Identifikasi serat visual ujung ke ujung

Feature :

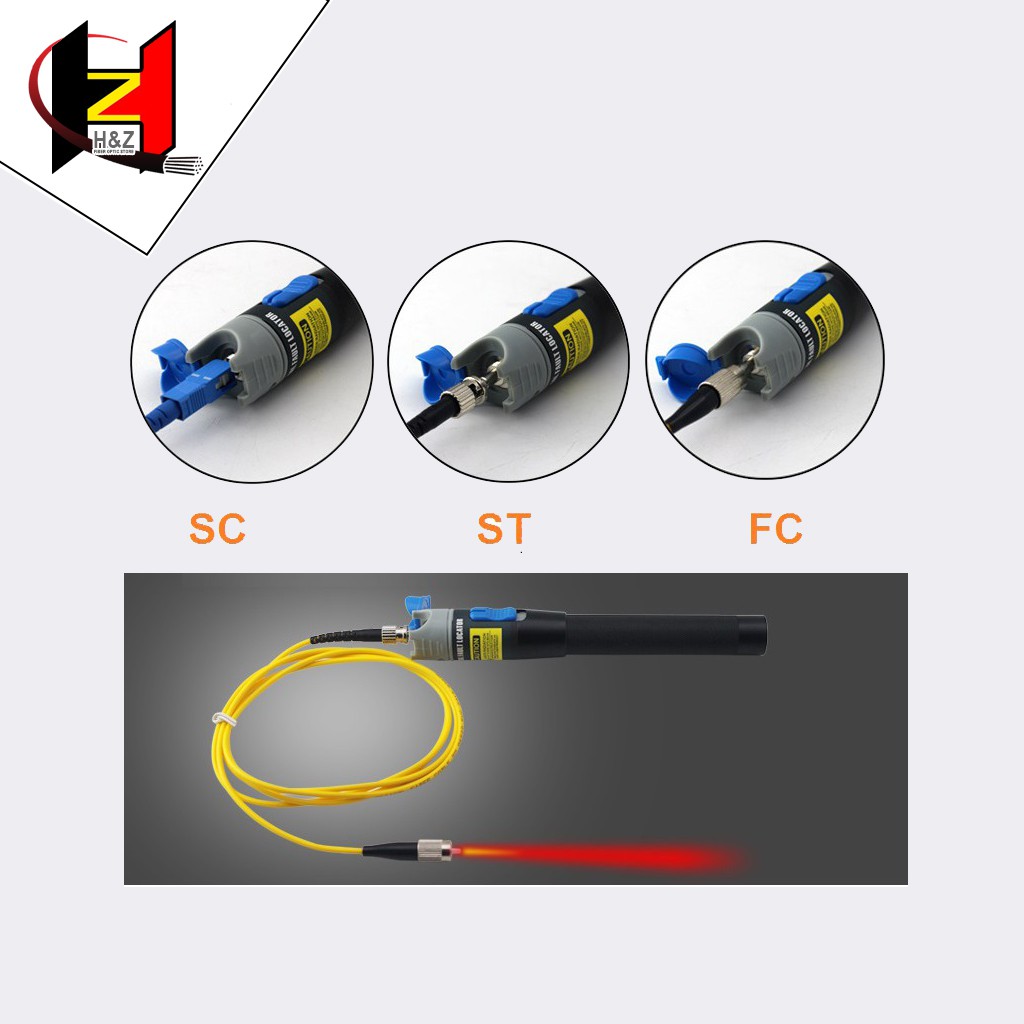

* 2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC (Female) convertor can be provided on requests.
* Operates either in CW or Pulsed
* Constant output power
* Lower Battery warning
* Long battery life (up to 60 hours)
* Crash-proof and dust-proof design for laser head
* Laser case ground design prevents ESD damage
* Burning testing to ensure the reliability.
* Portable and rugged, easy to use

Spesifikasi :
* Central Wavelength : 650nm±10nm (635nm can be required on request)
* Emitter Type : FP-LD
* Optical Connector :
-2.5mm universal connector
-For 1.25mm connectors, FC (Male)-LC (Female) convertor
-can be optional on customer requests
* Operating Model : Both CW and Pulse available
* Pulse Frequency : 2~3Hz
* Battery Operating Time :
-650nm@1mw ≥65hour
-650nm@10mw≥15hour
-Test with Panasonic LR6 AA ALKALINE battery
* Operating Temperature : -10~+45 (℃)
* Storage Temperature : -40~+70 (℃)
* Dimension (mm) : 15X180mm
* Weight : +- 300 gram

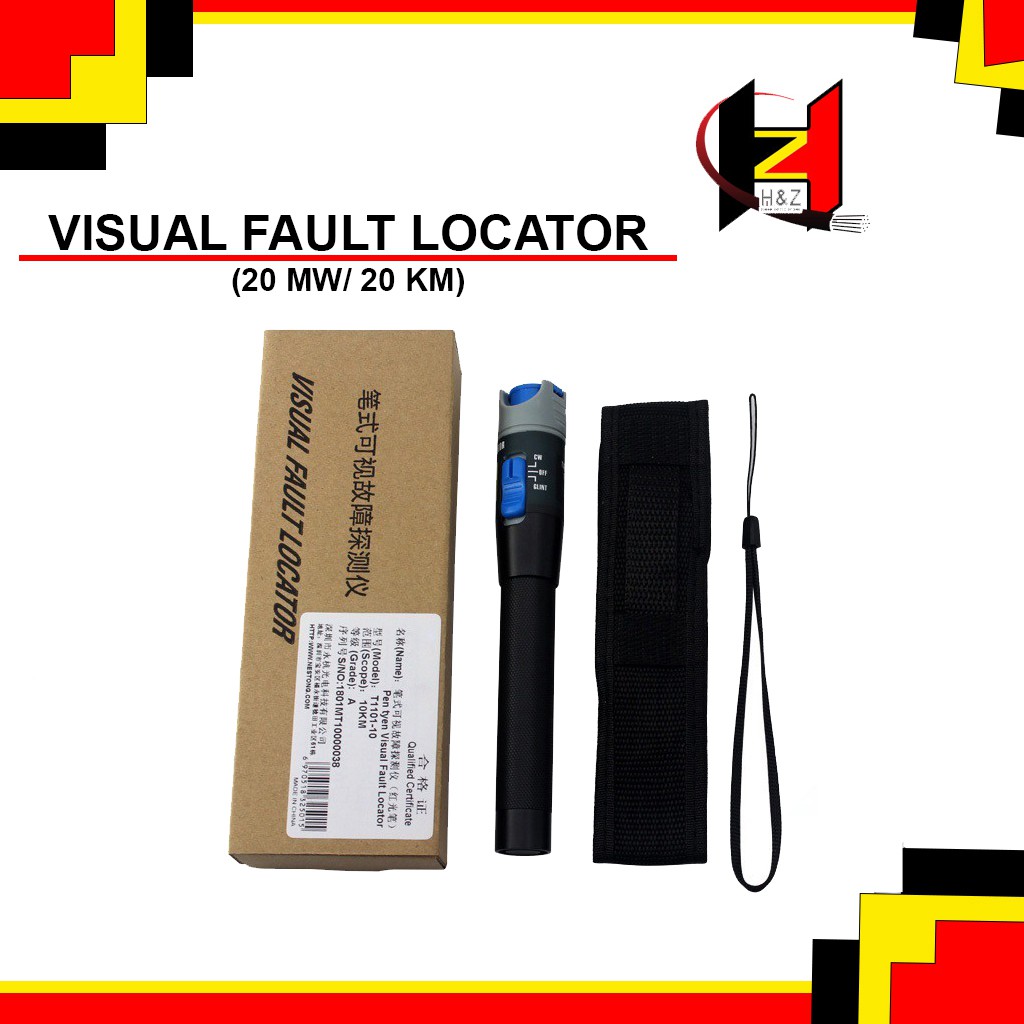

Standard Packages :

* 1 Unit VFL JW3105A
* User Manual
* Soft Carrying case

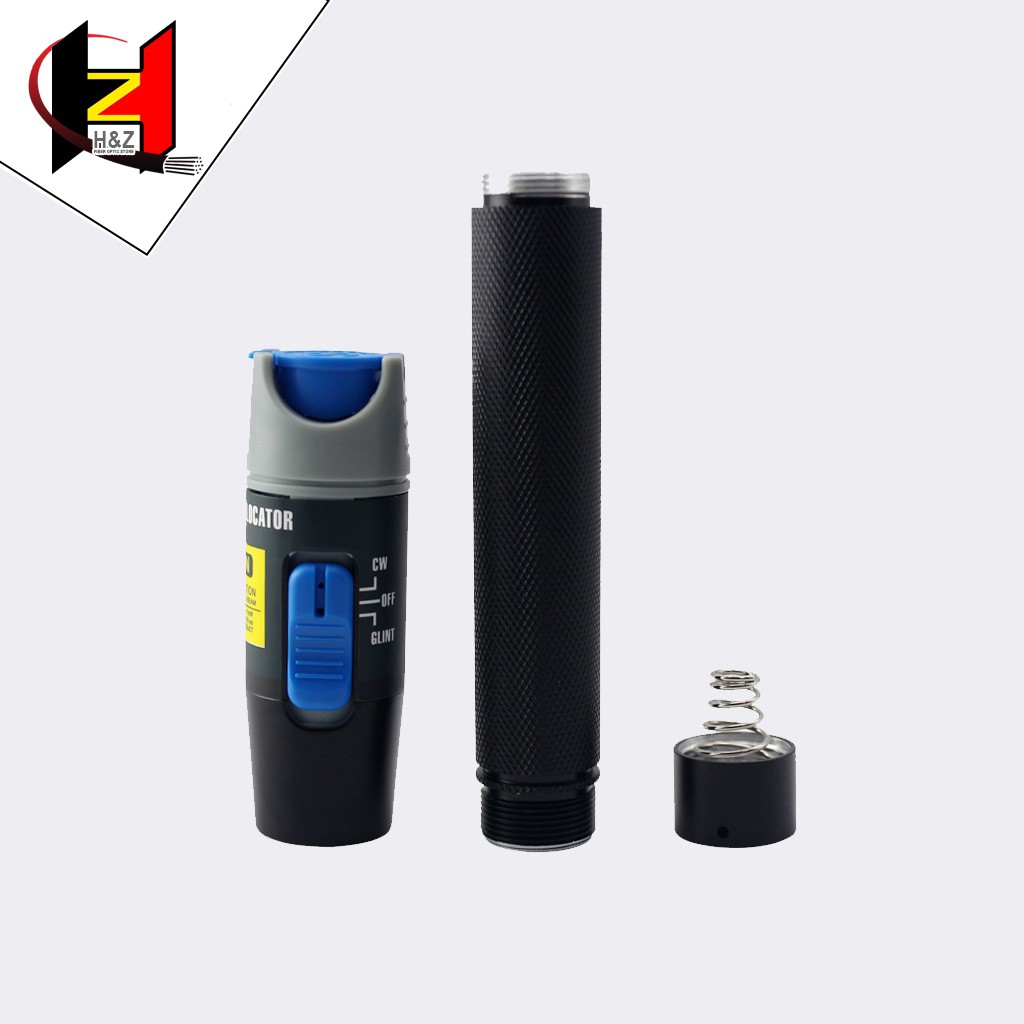

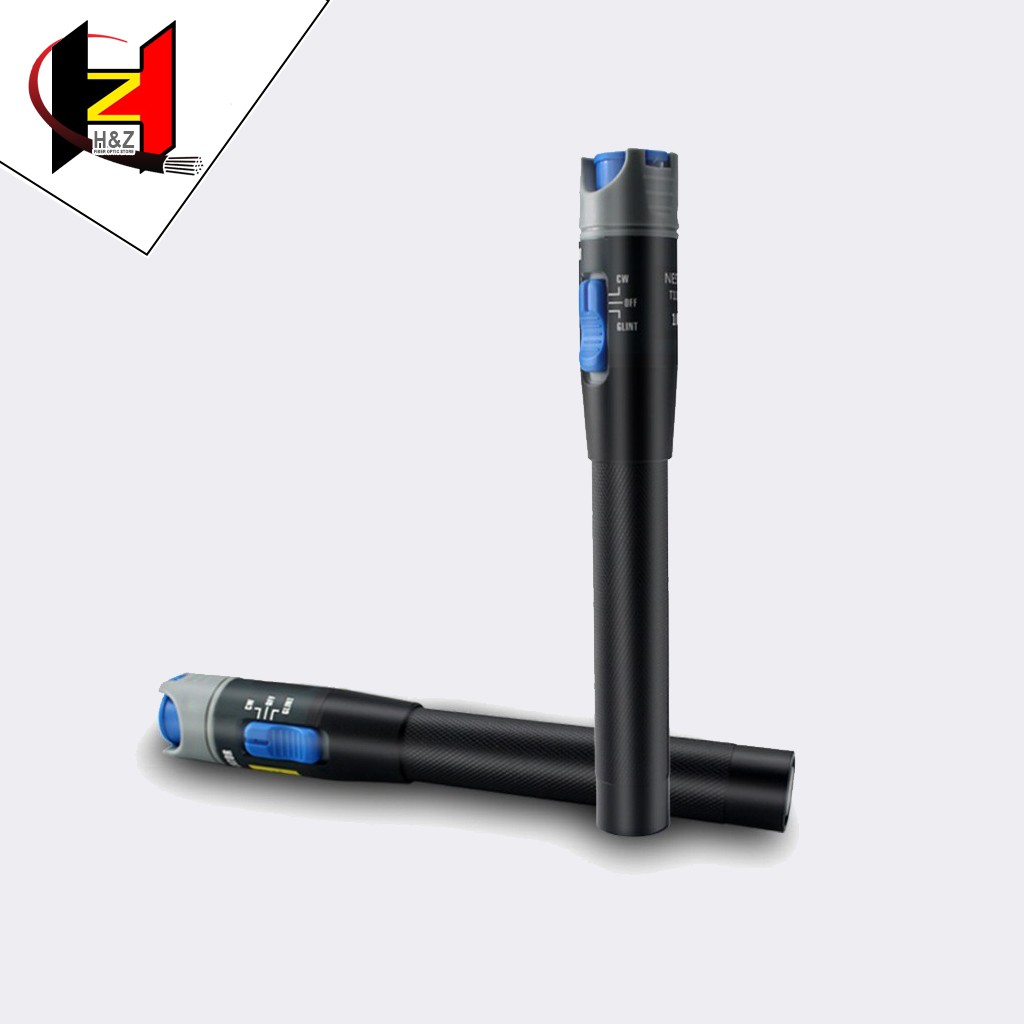

Gambar produk
