Detail VFL Joinwit JW3105A 20mw / Senter Fiber Optik Joinwit JW3105A 20km

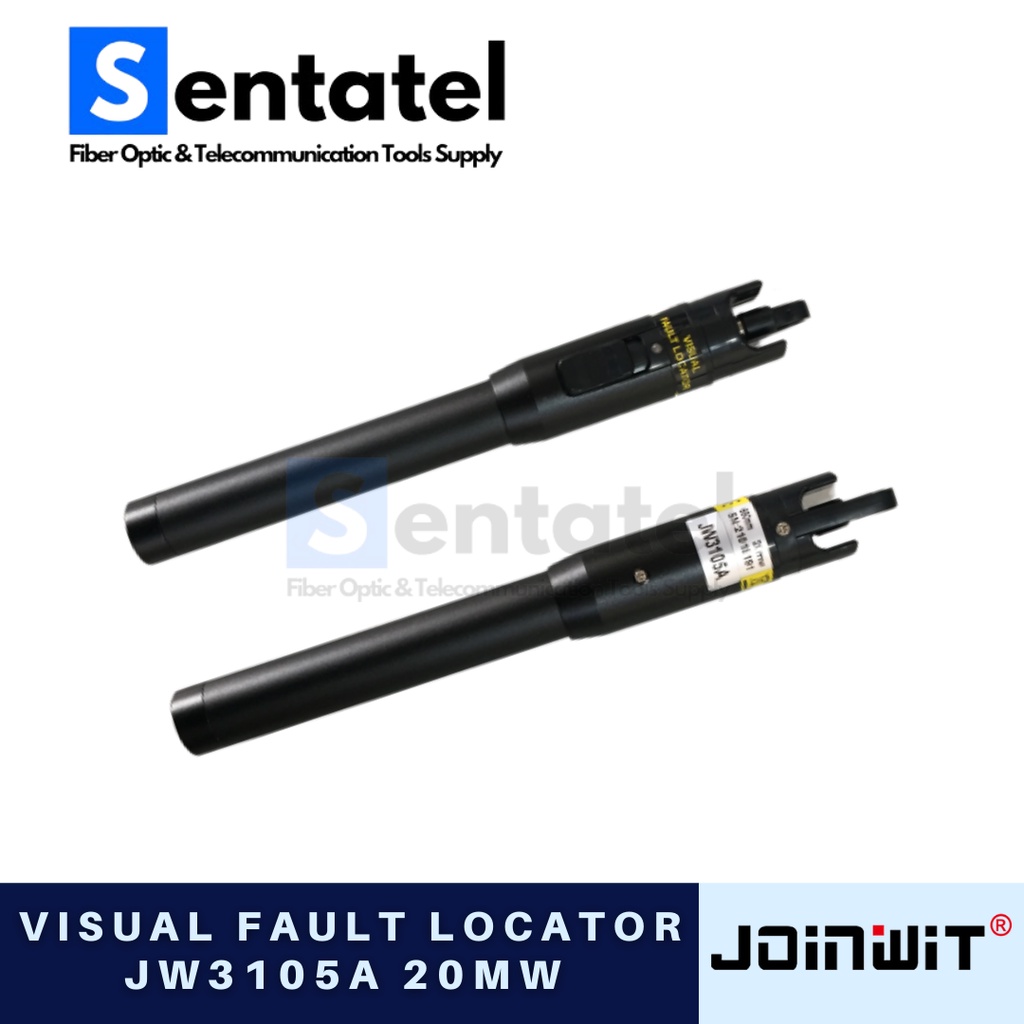

Visual Fault Locator / Senter Fiber Optic / Fiber Optic Cable Checker / Visible Light Source Joinwit JW3105A

Senter visual fault locator 20mw, laser berwarna merah ini bisa di gunakan untuk mengecek kabel optik sampai dengan jarak 15-20km yang telah di pasang connectors berbagai jenis seperti SC,FC, LC ( LC menggunakan perangkat tambahan)

Specification:
Model: Pen type visual fault locator JOINWIT JW3105A
Emiter: LD
Wavelenght (nm): 650+-10
Output Power (mW): 10 mW-20 mW
Transmission distance: Up to 10Km
Working mode: CW & Modulation
Working temperature (C): -10 +45
Storage temperature (C): -40 +70
Modulation: 1Hz, working cycle: 60%
Connector: 2.5mm universal connector (FC) SM, MM
Power: 2 pcs AA battery
Working hours (h): 20 mWcontinuous work >15 Hours
Dimension (mm): 180*15

Features:
- 2.5mm universal connector
- Operates either in CW or Pulsed mode with constant
- Output power
- Low battery warning
- Long battery life (up to 60 hours)
- Drop-resistant and dust-proof design of laser head
- Laser case ground design prevents ESD damage
- Portable and rugged
- Easy to use
- Can be used for ST / SC / FC connectors ,universal optical interface, single/multi-mode fiber for High stability, long-life work
- 650nm visible
(without Batteries)
