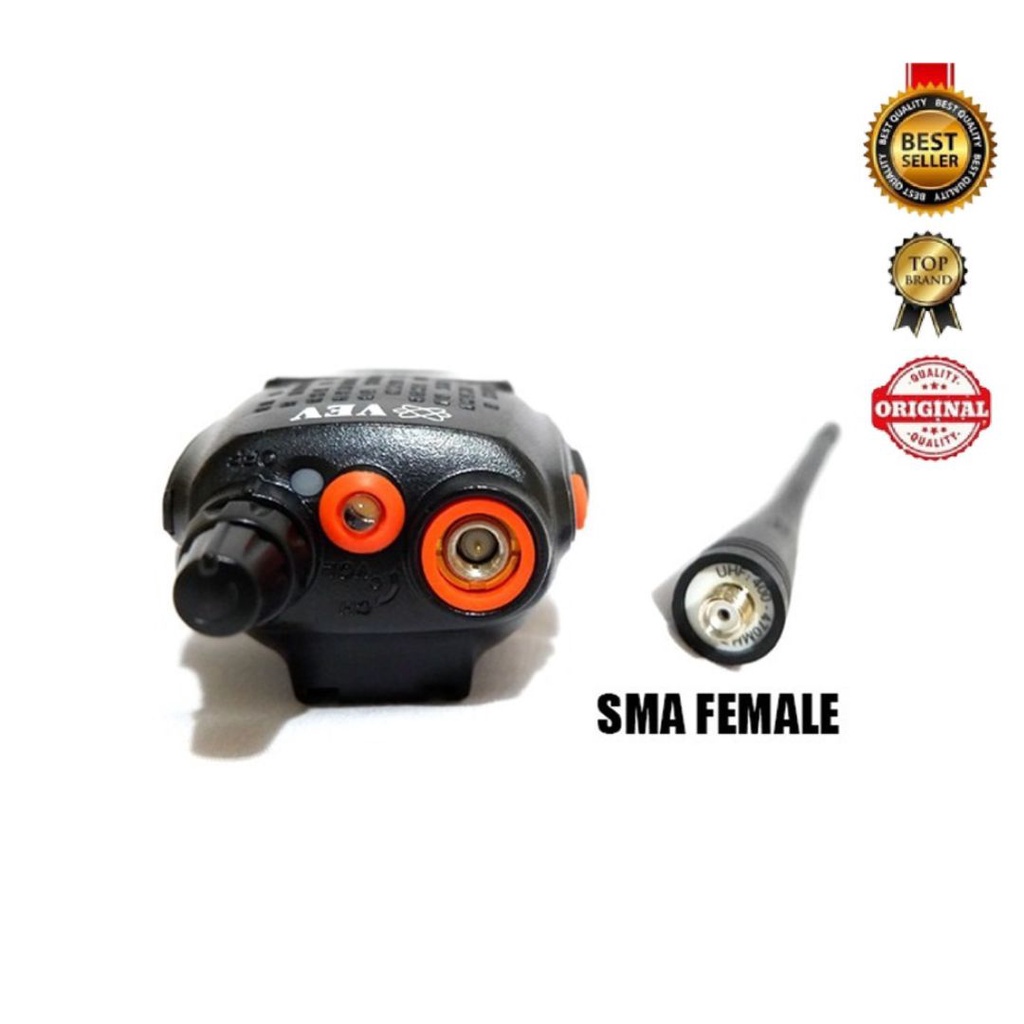

VEV HANDY TALKY V10 UHF 400

Detail VEV HANDY TALKY V10 UHF 400

Deskripsi VEV V10 UHF 400 HANDY TALKY
Nama Produk : VEV V10 UHF 350 HANDY TALKY
Garansi : Service 6 Bulan

Fitur :
- Output Power: 10W VHF/10W UHF
- 128 Memory Channels
- VOX Function
- Led flashlight function
- 50 groups of CTCSS and 105 groups of DCS
- Wide/Narrow bandwidth selectable (25KHz/12.5KHz)
- ANI ID code / ID Code
- Standard Antenna and Regular Antenna

Spesifikasi :
Frequency Ranges :
- UHF : 400-520 MHZ
Number of Channels : 128 Channels
Temperature Range : -20C ~ +60C
Operating Voltage : 7.4VDC+15%
Frequency Stability : +2.5ppm
Size : 120(L) x 60(W) x 40(D)mm (Tanpa Antenna)
Weight (W/Battery) : 260g
Antenna Impedance : 50 ohm
Channel Spacing : 12.5/25KHz

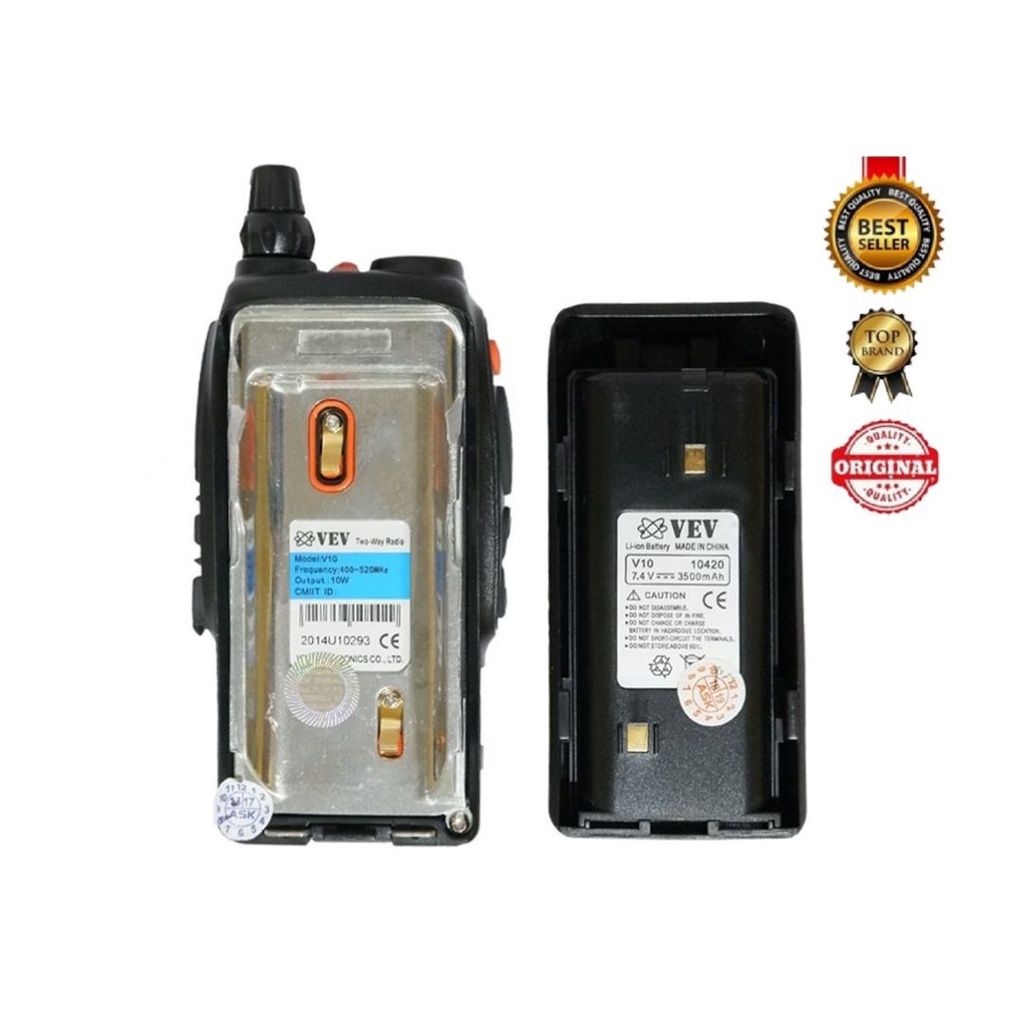

Battery : 3500 mAh (Li-ion)

Receiver :
Sensitivity : 0.16 uV
Selectivity : 55dB
Adjacent Channel Selectivity : 70dB
Noise Respond : 60dB
Communication Range :
- Downtown : 3 - 5km
- Open Area : 6 - 20km
FM Noise (N/W) : 30dB/40dB
Modulation Type : 8K/16F3E
Audio Power Output : 500mW When Distortion Less Than 10%
Audio Distortion : 5 %
Occupied Bandwidth : +3.75KHz/ +7.5KHz

Transmitter :
RF Output :
- UHF : 400-520 MHZ
RF Power Output : 0.5W - 10W
Modulation Type : F3E
Modulation Distortion : 5 %(300 - 3000Hz)
Max Frequency Deviation : 5KHz (1000KHz When 100%)
FM Noise (N/W) : <-45dB


PERINGATAN!!
*sudah dicek kondisi fisik bagus (tidak pecah, rusak, patah, dll). Kerusakan yg terjadi dalam perjalanan (Ekspedisi) bukan tanggung jawab penjual.
*packaging dapat berubah sewaktu waktu tanpa ada pemberitahuan terlebih dahulu, packaging menyesuaikan supplier.

Gambar produk
