VARRO H55 LGA 1156 Support MSata Slot

Detail VARRO H55 LGA 1156 Support MSata Slot

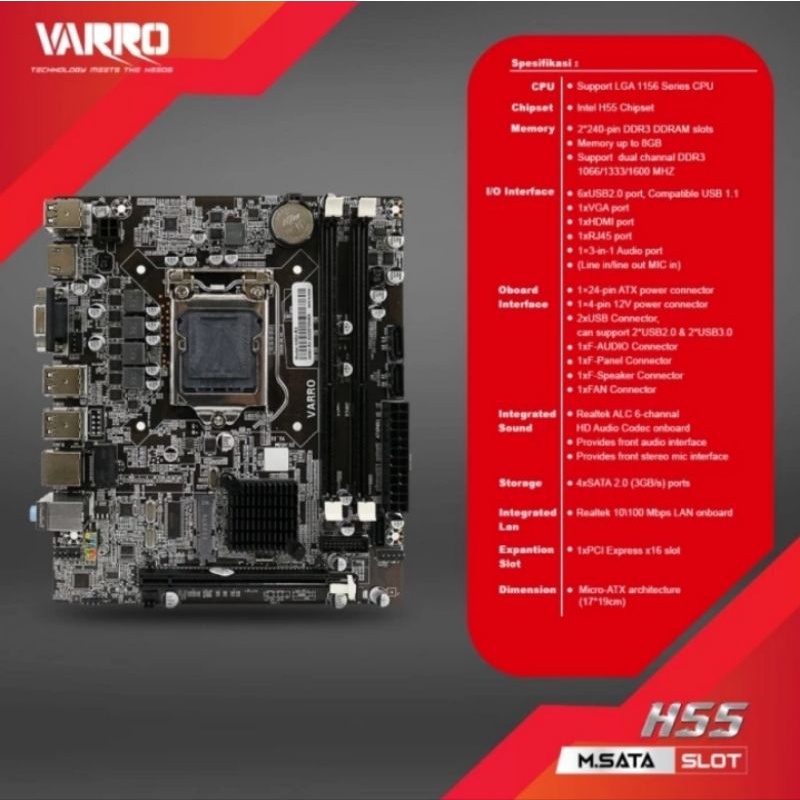

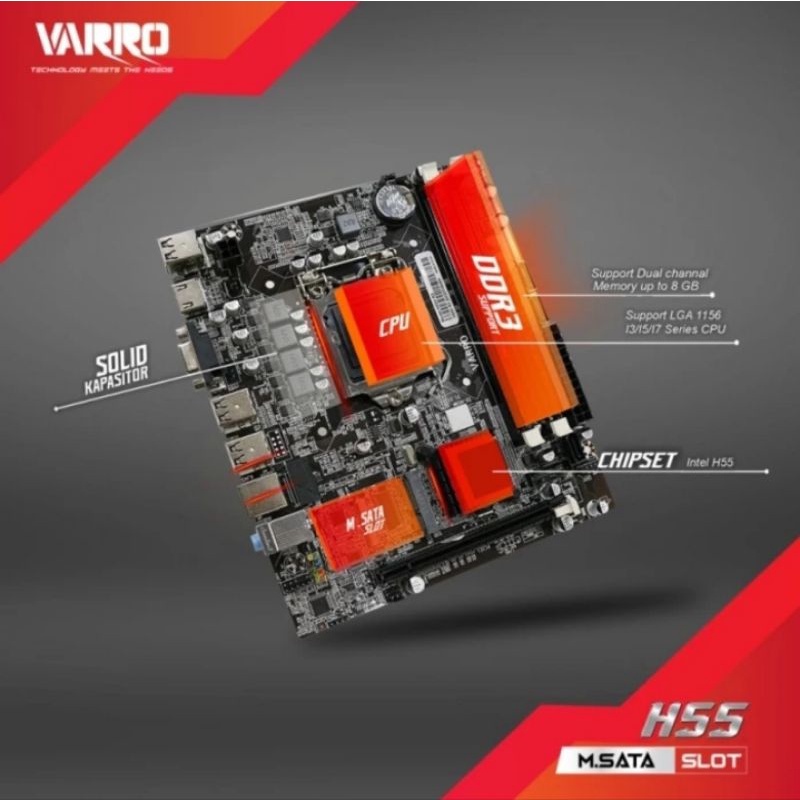

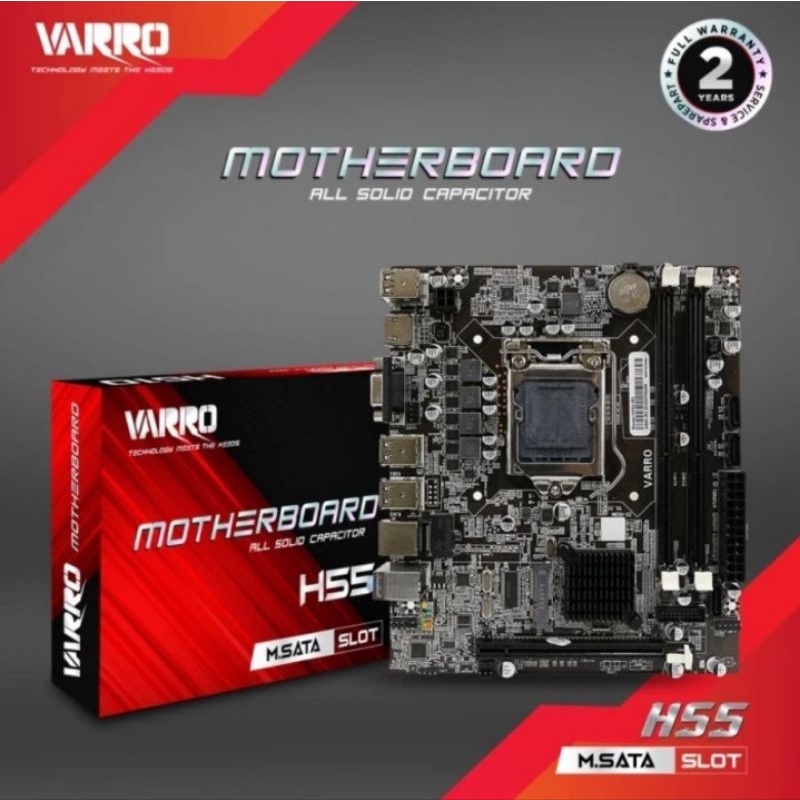

MOTHERBOARD VARRO H55

CPU : Support LGA 1156 Series CPU
Chipset : Intel H55 Chipset
Memory : 2*240-pin DDR3 DDRAM slots
Memory up to 8GB
Support dual channal DDR3 1066/1333/1600 MHZ

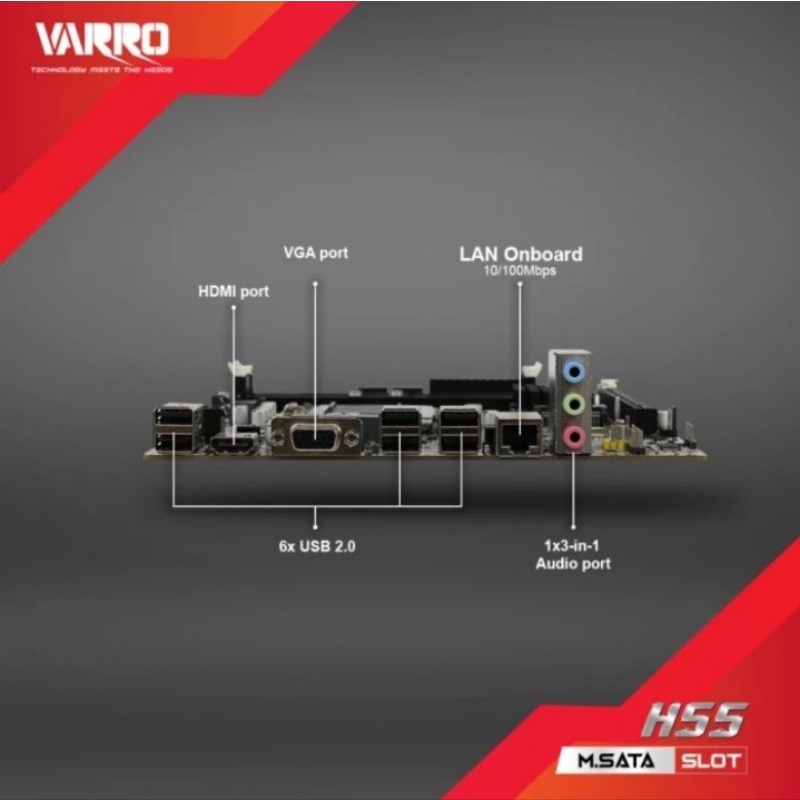

I/O Interface :
6xUSB2.0 ports
1xVGA port
1xHDMI port
1xRJ45 port
1×3-in-1 Audio port (Line in/line out MIC in)

Onboard Interface :
1×24-pin ATX power connector
1×4-pin 12V power connector
2xUSB Connector,can support 2*USB2.0 &
1xF-AUDIO Connector
1xF-Panel Connector
1xF-Speaker Connector
1xFAN Connector

Integrated Sound :
Realtek ALC 6-channal HD Audio Codec onboard
Provides front audio interface
Provides front stereo mic interface

Storage :
4xSATA 2.0 (3GB/s) ports

Integrated Lan :
Realtek 10\100 Mbps LAN onboard

Expantion Slot :
1xPCI Express x16 slot
1xM.SATA Connector

Dimension :
Micro-ATX architecture (17*19cm)
