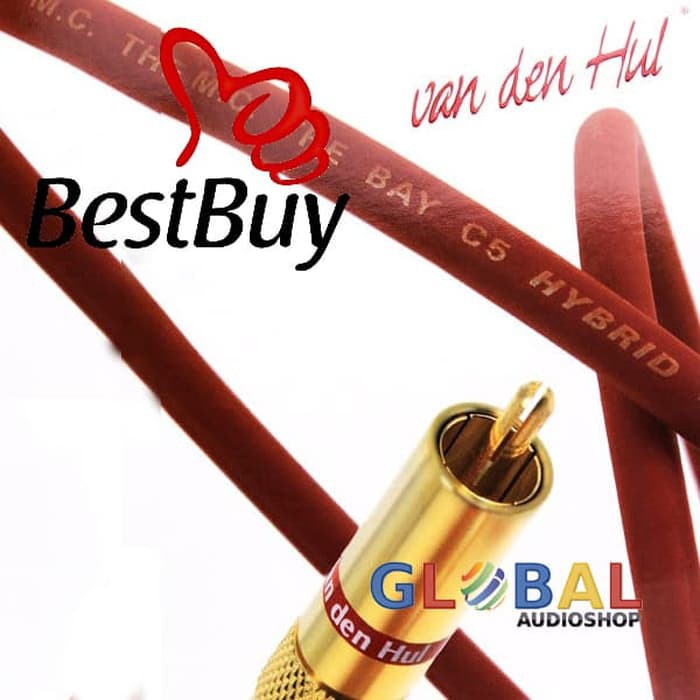

THE BAY C5 HYBRID (HALOGEN FREE)
Due to the large success of our (discontinued) The PATCHBAY B5 in its use as a general purpose audio interconnect, we have introduced The BAY C5 HYBRID: The coaxial (unbalanced) HYBRID version of our balanced The PATCHBAY B5.

The design combination of a superior transmission quality, a low conductor-conductor capacitance, a very high screening factor together with a high mechanical flexibility and a long durability, though not being easy to manage, successfully has been achieved.

The high quality conductor material used in this cable is large crystal OFC with a dense silver coating.
The BAY C5 HYBRID furthermore has been fully equipped with Linear Structured Carbon ® (LSC) saturated layers which are standard in our more expensive cable products. These layers dramatically improve transparancy and imaging; By electrically bridging any metal cystal defects a stable conductivity at the lowest signal levels is obtained.

The coaxial construction is made with a center conductor consisting of 40 x 0.12 mm. strands exhibiting an effective cross section area of 0.452 mm² (AWG 20.6) and a resistance of 3.8 Ohm/100 meter.
The center conductor is coated with a layer of LSC and is insulated with foamed polyethylene.
The cable capacitance is 110 pF/m.
The double screen is made of a 16 x 6 x 0.12 mm. stranded braid with underneath a Linear Structured Carbon ® saturated layer to further close the cable against HF signals and to dramatically improve the signal quality.
The total resistance of the screen is 1.6 Ohm/100 meter.
The external 5.2 mm. diameter jacket is made of red colored HULLIFLEX ® 4, a material with superior properties compared to e.g. PVC; HULLIFLEX ® gives The BAY C5 HYBRID a very long life span without any ageing effects.
