V.SOL V1600D4-DP | VSOL OLT EPON 4 PON , 4x 1GE RJ45 ,4x SFP+ Uplink | PAKET 4x SFP 7dB

Komputer & Aksesoris > Komponen Network > Komponen Network Lainnya > V.SOL V1600D4-DP | VSOL OLT EPON 4 PON , 4x 1GE RJ45 ,4x SFP+ Uplink | PAKET 4x SFP 7dB
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Mobitra StoreLihat semua produk Komputer & Aksesoris oleh Mobitra Store
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail V.SOL V1600D4-DP | VSOL OLT EPON 4 PON , 4x 1GE RJ45 ,4x SFP+ Uplink | PAKET 4x SFP 7dB

Deskripsi : V.SOL V1600D4-DP | OLT EPON 4 PON , 4x 1GE RJ45 ,4x SFP+ Uplink
+ 4x SFP EPON 7db

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

Garansi OLT 3 Bulan
Garansi SFP 1 Bulan

Item V1600D4-DP
Dimension (L*W*H) 440mm*200mm*40mm
GE/10GE
Uplink Port QTY 8
RJ45(GE) 4
SFP(GE) /
SFP+(10GE) 4

GPON Port QTY 4
Physical Interface SFP Slots, PX20+++ Connector Type, Max splitting ratio 1:64
Management Ports 1*FE out-band port, 1*CONSOLE port,

Management Ports 1*FE out-band port, 1*CONSOLE port
PON Port Specification
(PX20++ module) Transmission Distance 20KM
EPON port speed Upstream 1.25G, Downstream 1.25G
Wavelength TX 1490nm, RX 1310nm
Connector SC / UPC
Fiber Type 9/125m SMF
TX Power +4.5 ~ +9dBm
Rx Sensitivity -32dBm
Saturation Optical Power -8dBm
Weight (Single AC Power) Net Weight 3.2kg Gross Weight 4.3kg
Power Supply AC:100~240V, 47/63Hz, DC:-48V, BBU(option for D4-BT), Double Power Module Hot Backup
Power Consumption 35W

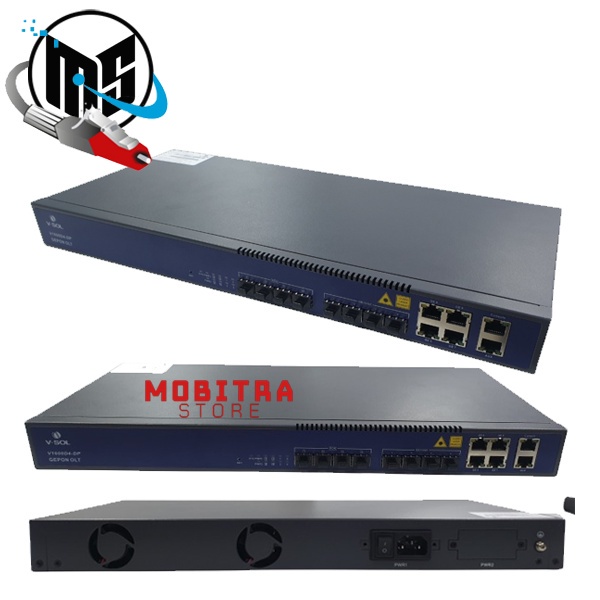

Gambar produk

V.SOL V1600D4-DP | VSOL OLT EPON 4 PON , 4x 1GE RJ45 ,4x SFP+ Uplink | PAKET 4x SFP 7dB
V.SOL V1600D4-DP | VSOL OLT EPON 4 PON , 4x 1GE RJ45 ,4x SFP+ Uplink | PAKET 4x SFP 7dB
Lihat lebih banyak informasi produk
