USR-TCP232-410s Serial to TCP/IP RS232 RS485 Gateway Ethernet Modbus

Detail USR-TCP232-410s Serial to TCP/IP RS232 RS485 Gateway Ethernet Modbus

USR-TCP232-410s Serial to TCP/IP

---

Penghubungkan perangkat serial ke jaringan TCP/IP.

Konfigurasi dilakukan melalui web server pada USR-TCP232-410s .

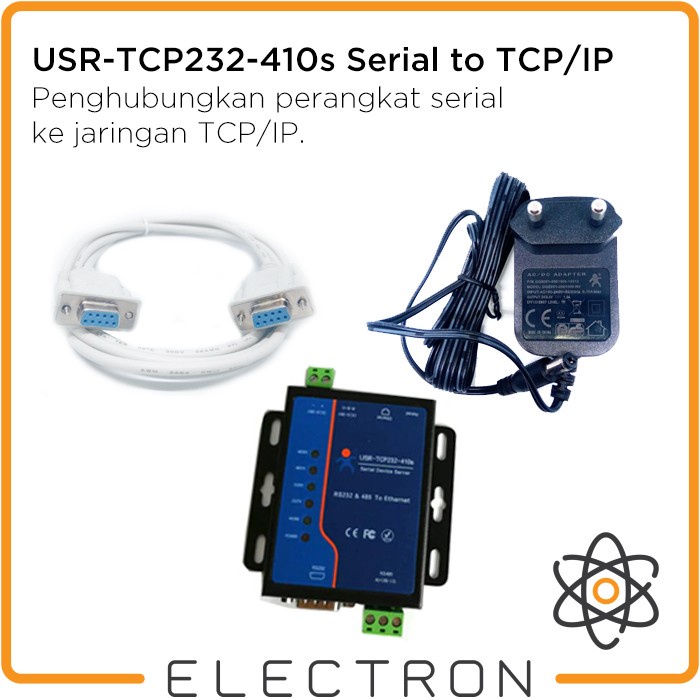

Sudah termasuk:

- Power Adaptor
- DB9 Female to Female

Feature:

- Multiple Indicator Lights for Convenient Debugging
- Power-Line Terminal for Industrial Application
- Arm Kernel and Tcp / Ip Protocol Stack
- Auto-Mdi / Mdix, Rj45 Port with 10 / 100Mbps
- Tcp Server, Tcp Client, Udp, Udp Server and Httpd Client Work Mode
- Two Ports Can Work Independently at The Same Time
- Support Virtual Serial Port and Provide Corresponding Software Usr-Vcom
- Serial Baud Rate From 600Bps to 230. 4K Bps; Check Bit of None, Odd, Even, Mark and Space
- DNS and DHCP Supported
- Provide Pc Tcp / Ip Socket Programming Example, Vb, C++, Delphi, Android, Ios
- Built-In Webpage; Also Can Customize Webpage for Users
- Reload Button, One Key to Restore Default Settings
- Rj45 with Link / Data Indicator Light, Built-In Isolation Transformer and 2 Kv Electromagnetic Isolation
- The Global Unique Mac Address Bought From Ieee, User Can Define Mac Address
- Support Upgrade Firmware Via Network
- Support Keep-alive, Rapidly Detect Dead Links
- Support Account and Password, Can Be Used to Page Login and Network Settings
- Support One Channel Websocket, Realize Bidirectional Transparent Transmisison Between Webpage and Serial 0
- Support Modbus Rtu to Modbus Tcp
- Support Udp Broadcast Function, Send and Receive Data From All Ip in The Network

Gambar produk
