USBASP USBISP AVR Programmer USB ISP USB ASP ATMEGA8 ATMEGA128
Deskripsi singkat
Elektronik > Elektronik Lainnya > USBASP USBISP AVR Programmer USB ISP USB ASP ATMEGA8 ATMEGA128
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait

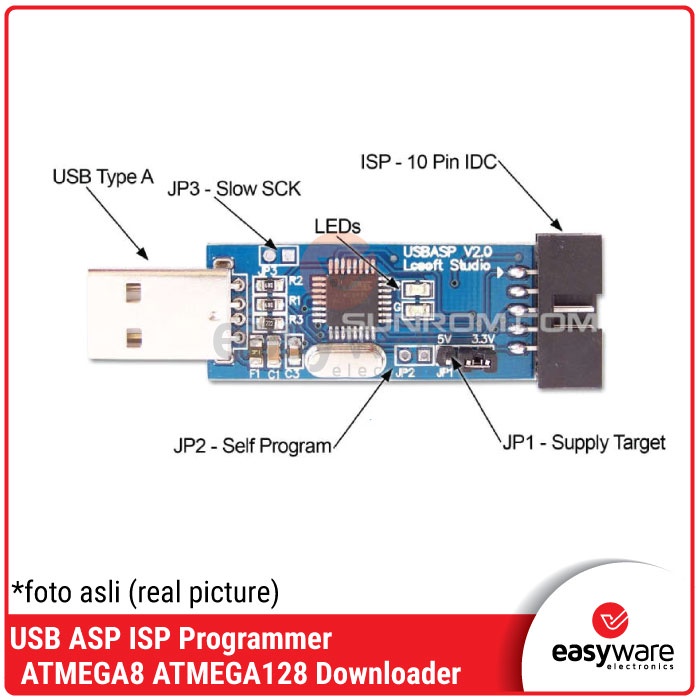

Detail USBASP USBISP AVR Programmer USB ISP USB ASP ATMEGA8 ATMEGA128
Hi #RekanEasyWare ...EasyWare Part#: EP000730
Note:
- Foto real stok EasyWare Electronics.
- Panjang kabel idc kurang lebih 47mm dari ujung ke ujung.
Fitur:
- Works under multiple platforms. Linux, Mac OS X and Windows are tested.
- Allows you to read or write the microcontroller EEPROM, firmware, fuse bits and lock bits.
- Programming speed is up to 5KB/second • Software controlled SCK option to support targets with low clock speed (less than 1.5MHz).
- 6 Pin Adapter board along with the programmer for Standard ISP connections.
- B-type USB Connector for power.
- Separate Two Different LED's for power & programmer status.
- This board is buffered and power protected so that you can do some really evil things to the programmer without killing it. It is fast! One of the greatest features of this board is the ability to power the target (up to 500mA) from the programmer.
Support:
- Atmega8/48/88/168/328
- 51 series: AT89S51, AT89S52, AT89S53, AT89S8252.
- Attiny2313/4313.
- Attiny12/13/13A/15.
- Attiny25/45/85.
- Attiny24/44/84.
Kelengkapan:
- 1set USBASP USBISP AVR Programmer USB ISP USB ASP ATMEGA8 ATMEGA128 Support Win7 64K
